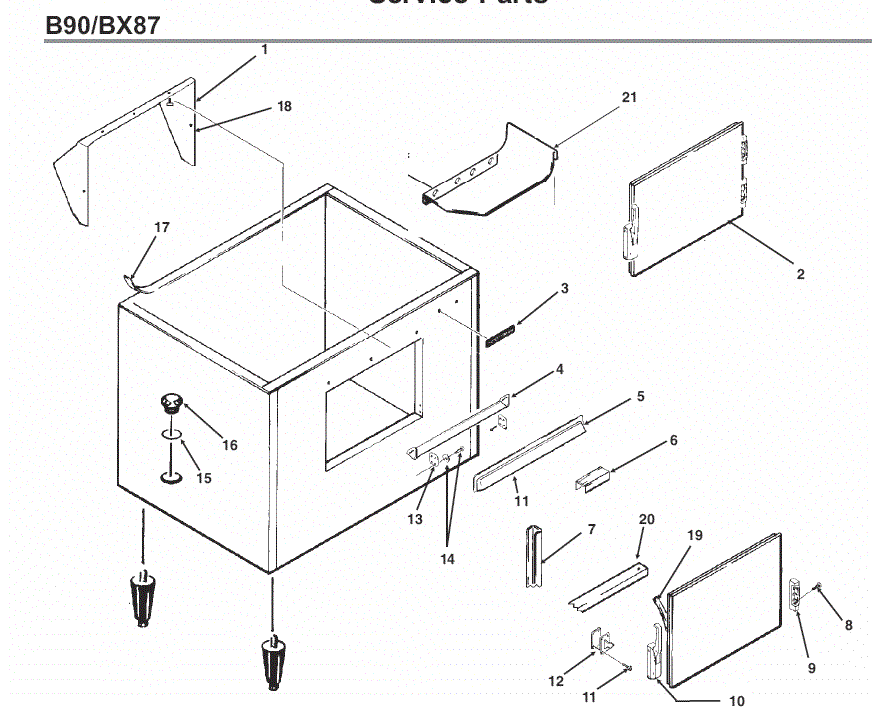

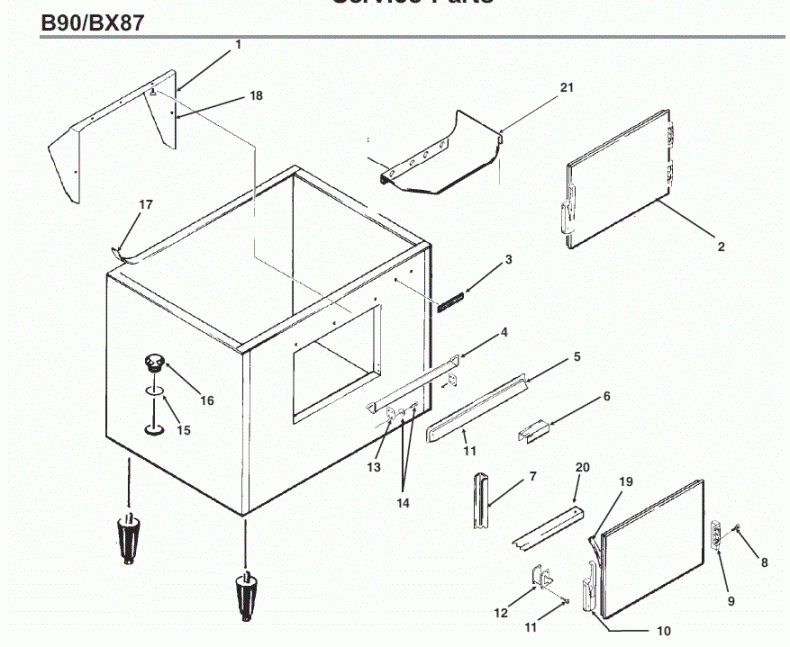

Scotsman B90 Bin Parts Diagram
Currently Viewing: B90
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A15114-000 BAFFLE Ships In 1-2 Days $224.56
2   A18300-002 DOOR CABINET SS Ships In 1-2 Days $753.31
2a   02-1000-00 DOOR LINER - OBSOLETE
3   15-0808-01 EMBLEM - SCOTSMAN Ships In 1-2 Days $26.90
4   A17342-000 SPILL DOOR Ships In 1-2 Days $91.49
5 Obsolete
6 Obsolete
7 Obsolete
8   03-1285-00 WOOD SCREW
8   03-1419-28 SCREW Ships In 1-2 Days $3.10
9   02-2658-03 EDGE MOUNT HINGE Ships In 1-2 Days $48.67
9   02-2658-04 HINGE COVER Ships In 1-2 Days $30.56
10   02-2658-01 LATCH Ships In 1-2 Days $112.76
11   03-1419-28 SCREW Ships In 1-2 Days $3.10
12   02-2658-02 STRIKE Ships In 1-2 Days $36.52
13   A25929-001 SPILL DOOR MTG. BKT. Ships In 1-2 Days $16.36
14   A17302-000 BUTTON Ships In 1-2 Days $17.68
14   03-1403-15 SCREW Ships In 1-2 Days $1.85
15 13-0617-11 O RING Ships In 1-2 Days $4.92
16 02-2809-01 DRAIN TOP Ships In 1-2 Days $10.68
17   19-0503-04 Scotsman 1/4 IN FOAM RUBBER GASKET Ships In 1-2 Days $6.46
18   03-0727-04 THUMB SCREW Ships In 1-2 Days $10.85
19   13-0264-00 GASKET DOOR Ships In 1-2 Days $40.35
20 Obsolete
21 Obsolete
