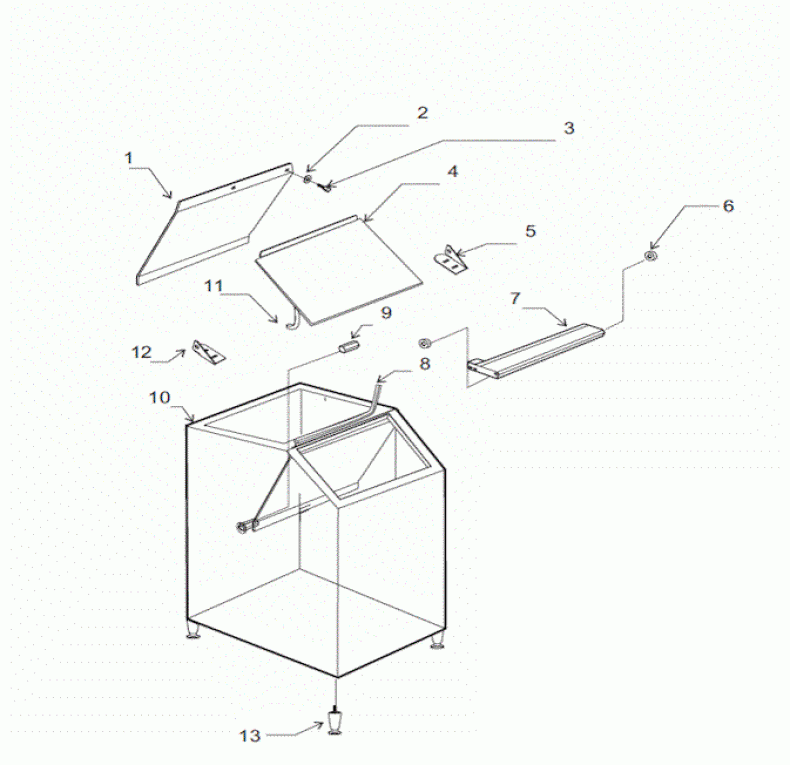

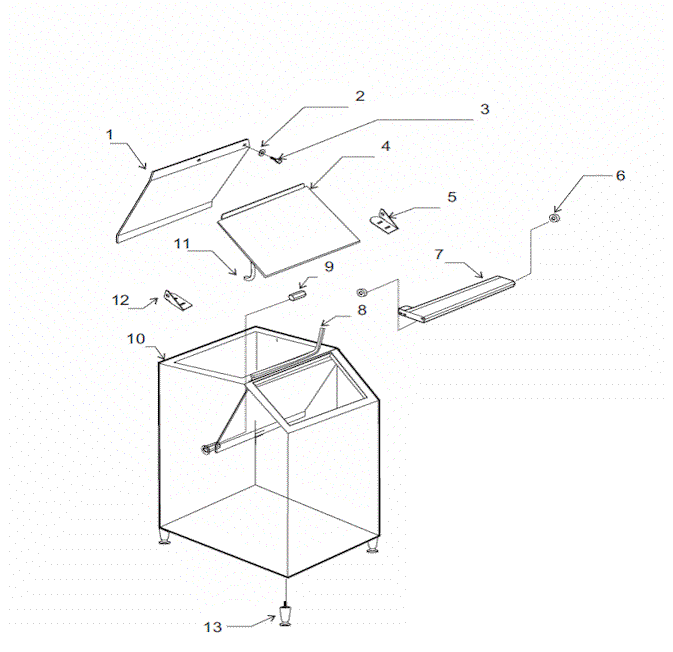

Scotsman BH360S Parts Diagram

Currently Viewing: BH360S

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		02-3943-05	DEFLECTOR ICE	Ships In 1-2 Days	$48.24
2		02-3943-14	WASHER	Ships In 1-2 Days	$1.93
3		02-3943-15	THUMBSCREW	Ships In 1-2 Days	$6.55
4		02-3943-03	DOOR w/o HINGES	Ships In 1-2 Days	$194.79
5		02-3943-02	HINGE RIGHT	Ships In 1-2 Days	$27.27
6		02-3943-16	BEARING NYLON	Ships In 1-2 Days	$7.84
7		02-3943-04	DRIP SHIELD	Ships In 1-2 Days	$59.98
7		02-3943-12	SCREW HINGE TO BIN	Ships In 1-2 Days	$1.85
8		02-3943-07	GASKET DRIP SHIELD P	Ships In 1-2 Days	$7.84
9		02-3943-13	HEX STAND OFF	Ships In 1-2 Days	$23.29
10		02-3943-08	GASKET BIN TOP - PER	Ships In 1-2 Days	$9.46
11		02-3943-06	GASKET - DOOR PER FT	Ships In 1-2 Days	$15.16
12		02-3943-01	HINGE LEFT	Ships In 1-2 Days	$28.52
13		02-3943-10	LEGS (SET OF 4)	Ships In 1-2 Days	$140.25
14		02-3943-09	STRAP - BIN TO MACHI	Ships In 1-2 Days	$11.72
