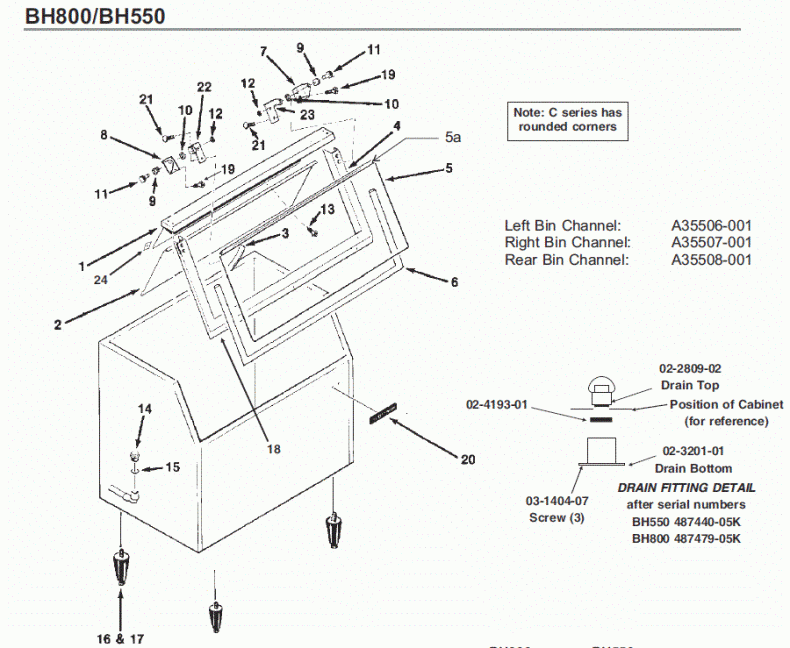

Scotsman BH800 Bin Parts Diagram
Currently Viewing: BH800
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A32408-001 CANOPY Ships In 1-2 Days $241.65
2   A32410-001 BAFFEL Ships In 1-2 Days $66.13
3   19-0503-04 Scotsman 1/4 IN FOAM RUBBER GASKET Ships In 1-2 Days $6.46
4   A37640-021 DOOR FRAME - BH800C Ships In 1-2 Days $178.61
5   A32419-020 DOOR Ships In 1-2 Days $805.03
5a   02-2881-02 GUARD DOOR BH800 Special Order - Ships In 3-4 Weeks $28.81
6 (Use 10 Ft) 13-0595-00 DOOR GASKET PER FT. Ships In 1-2 Days $5.83
7   A32396-002 DOOR HINGE-RIGHT Ships In 1-2 Days $64.80
8   A32396-001 DOOR HINGE-LEFT Ships In 1-2 Days $64.80
9   02-2380-01 HINGE BUSHING Ships In 1-2 Days $7.72
10   02-2380-02 SPACER Ships In 1-2 Days $4.32
11   02-2806-01 SHOULDER SCREW Ships In 1-2 Days $15.91
12   03-1539-09 RETAINING RING Ships In 1-2 Days $8.91
13   03-0727-00 THUMB SCREW Ships In 1-2 Days $15.15
14 02-2809-01 DRAIN TOP Ships In 1-2 Days $10.68
15 13-0617-11 O RING Ships In 1-2 Days $4.92
16 Obsolete
17 Obsolete
18   03-1404-07 SCREW Ships In 1-2 Days $0.92
19   03-1360-02 SCREW Ships In 1-2 Days $8.42
20   15-0808-01 EMBLEM - SCOTSMAN Ships In 1-2 Days $26.90
21   03-1418-41 FLAT HEAD SCREW Ships In 1-2 Days $0.92
22   A32546-001 HINGE-LEFT Ships In 1-2 Days $43.51
23   A32546-002 HINGE-RIGHT Ships In 1-2 Days $61.58
24   03-1423-07 SPEED NUT Ships In 1-2 Days $6.25
