Scotsman BH801 Bin Parts Diagram
Currently Viewing: BH801

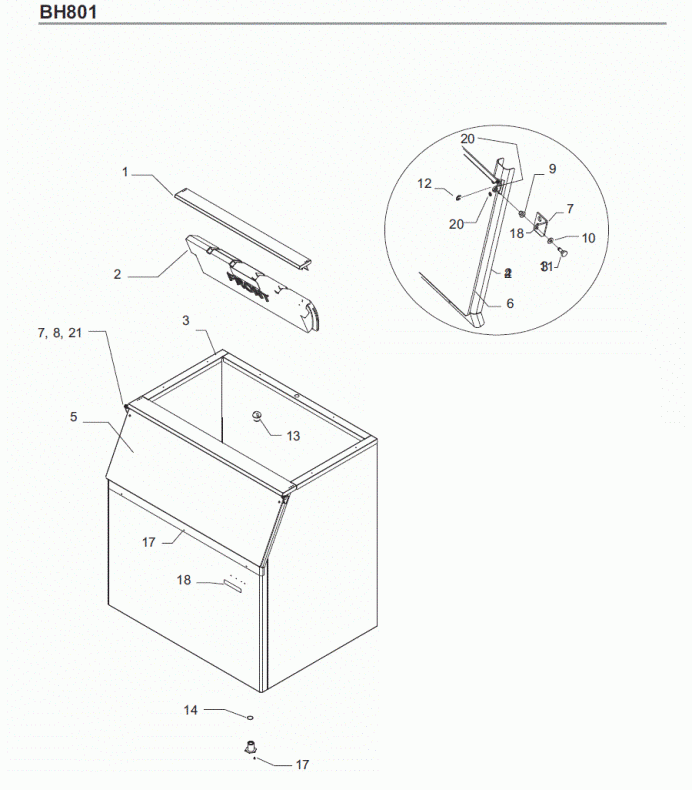

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A38434-001 CANOPY FAB ASSY BH80 Ships In 1-2 Days $110.67
2   A38476-001 BAFFLE ICE BIN Ships In 1-2 Days $115.35
3   19-0503-04 Scotsman 1/4 IN FOAM RUBBER GASKET Ships In 1-2 Days $5.75
4   A37640-021 DOOR FRAME - BH800C Ships In 1-2 Days $140.58
5   A32419-020 DOOR Ships In 1-2 Days $484.95
6   02-2881-02 GUARD DOOR BH800 Ships In 7-10 Days $25.51
7 (Use 10 Ft) 13-0595-00 DOOR GASKET PER FT. Ships In 1-2 Days $5.45
8   A32396-002 DOOR HINGE-RIGHT Ships In 1-2 Days $54.95
9   A32396-001 DOOR HINGE-LEFT Ships In 1-2 Days $54.95
10   02-2380-01 HINGE BUSHING Ships In 1-2 Days $7.22
11   02-2380-02 SPACER Ships In 1-2 Days $4.05
12   02-2806-01 SHOULDER SCREW Ships In 1-2 Days $14.87
13   03-1539-09 RETAINING RING Ships In 1-2 Days $8.33
14   02-4193-01 BIN DRAIN GASKET Ships In 1-2 Days $16.13
15   02-3201-01 DRAIN Ships In 1-2 Days $15.75
16 Obsolete
17   03-1404-07 SCREW Ships In 1-2 Days $0.47
18   03-1419-09 SCREW Ships In 1-2 Days $0.95
19   15-0808-01 EMBLEM - SCOTSMAN Ships In 1-2 Days $21.96
20 03-1418-24 FLAT HEAD SCREWS Ships In 1-2 Days $0.71
21   A32546-001 HINGE-LEFT Ships In 1-2 Days $40.29
22   A32546-002 HINGE-RIGHT Ships In 1-2 Days $41.95
