Scotsman CME306 Parts Diagram

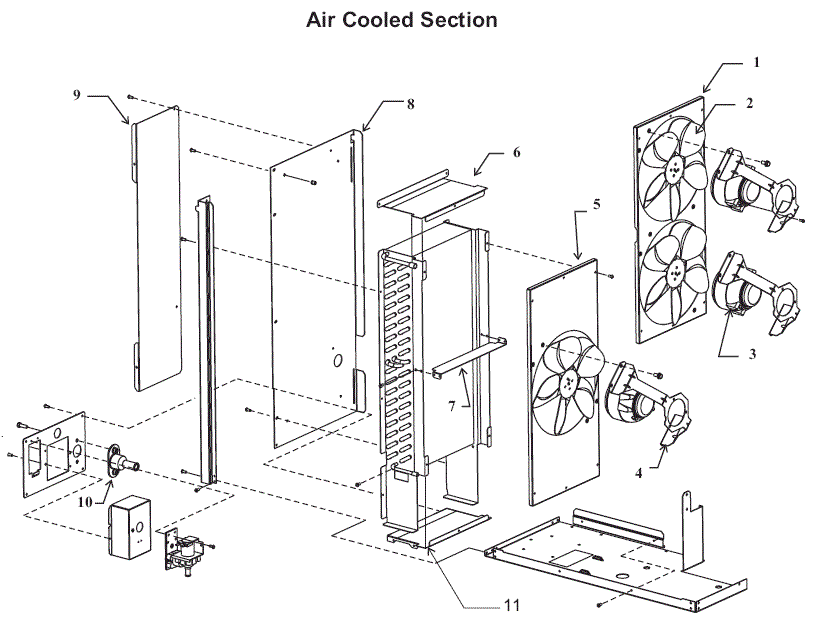

Currently Viewing: Air Cooled Section  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)...Shroud for CME456   A37576-001 SHROUD Ships In 1-2 Days $45.35
2)...Fan blade   18-8836-01 BALDE - FAN Ships In 1-2 Days $28.54
3)...Fan motor, 115/60 12-1681-23 Scotsman Motor Fan (16 Watt) - 12-1681-23 Ships In 1-2 Days $128.78
Fan motor, 230 volt   12-1681-04 MOTOR FAN Ships In 1-2 Days $179.26
4)...Fan motor bracket for A or B series (or E M & S fan motor)   A37503-001 BRACKET - FAN MOTOR Ships In 1-2 Days $26.18
Fan motor bracket for C series (or GE fan motor)   A38480-001 BRACKET-FAN Ships In 1-2 Days $18.93
Screw, bracket to shroud   03-1645-01 SCREW Ships In 1-2 Days $0.92
5)...Shroud for CME306   A37502-001 SHROUD Ships In 1-2 Days $37.09
6)...Top of shroud   A37613-001 SHROUD - TOP Ships In 1-2 Days $17.73
7)...Divider   A37591-001 DIVIDER Ships In 1-2 Days $13.41
8)...AC back panel   A37515-001 PANEL BACK A/C Ships In 1-2 Days $40.56
9)...AC baffle   A37646-001 BAFFLE A/C Ships In 1-2 Days $30.61
10)...Drain fitting 02-3692-21 SCOTSMAN DRAIN ADAPTER Ships In 1-2 Days $30.51
11)...Shroud bottom   A37612-001 SHROUD BOTTOM Ships In 1-2 Days $15.00
