Scotsman CME456R Contour Cube Ice Machine

Currently Viewing: Cabinet > Go Back To Other Parts Lists

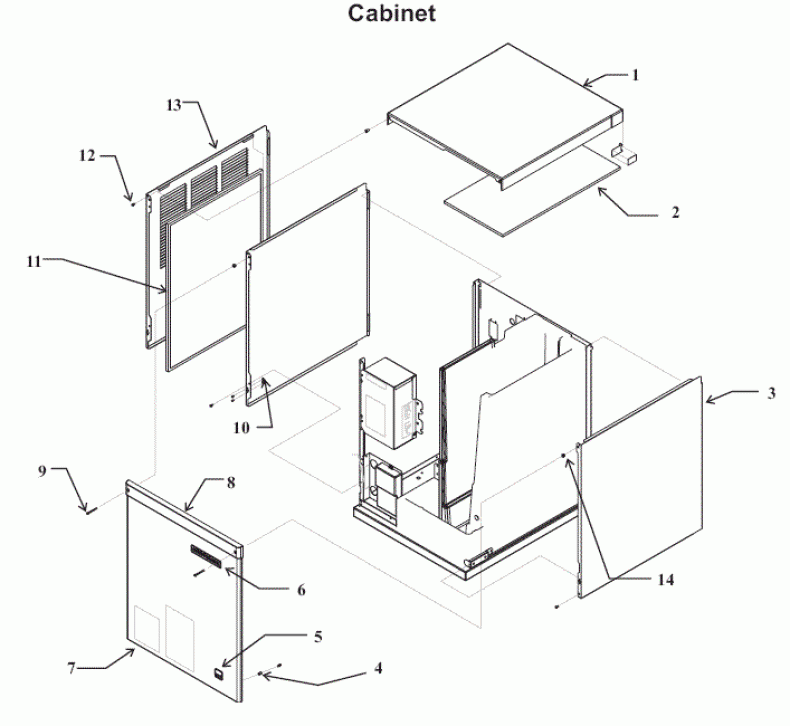

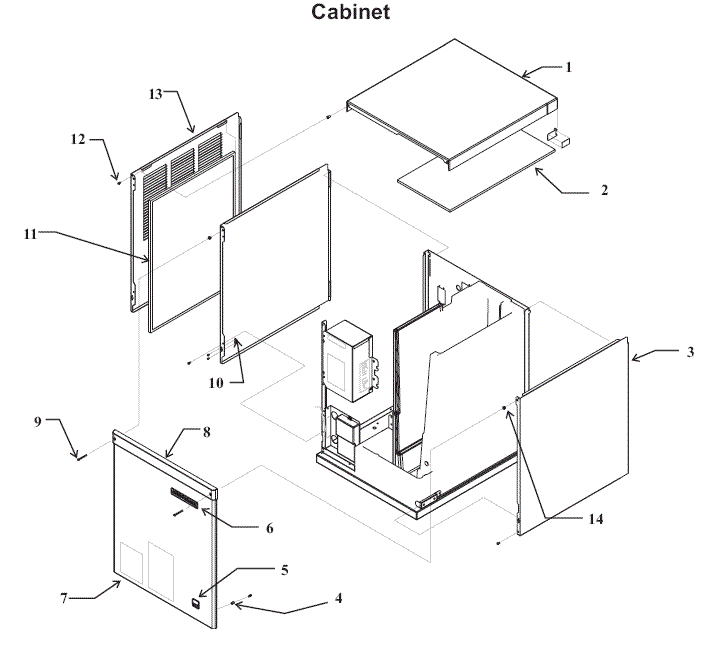

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		02-3820-21	PANEL TOP - PLASTIC	Ships In 3-4 weeks	$156.27
2		02-3835-01	INSULATION	Ships In 1-2 Days	$28.58
3		A37513-021	PANEL RIGHT SIDE	Ships In 1-2 Days	$112.86
4		03-1733-01	BALL STUD	Ships In 1-2 Days	$4.80
		03-1734-01	INSERT	Ships In 1-2 Days	$2.96
5		15-0792-02	EMBLEM CM3	Ships In 1-2 Days	$23.87
6		15-0808-03	EMBLEM - STICK ON - REPLACED BY 15-0808-01
7		A37577-021	PANEL FRONT	Special Order - -Ships in 3-4 Weeks	$142.73
8		02-3819-01	TRIM STRIP - REPLACED BY 02-3819-31
9		03-1735-03	SCREW	Ships 1 - 2 Days	$6.60
10		03-1733-02	BALL STUD	Special Order - Ships In 3-4 Weeks	$4.33
11		03-3804-01	CATCH - SCREW	Ships In 1-2 Days	$4.21
12		03-1409-19	NON-METALIC WASHERS - OBSOLETE, NO REPLACEMENT
13		A37531-021	PANEL LEFT SIDE W/C	Ships In 1-2 Days	$112.86
