Scotsman CME506R Contour Cube Ice Machine
Currently Viewing: Cabinet  > Go Back To Other Parts Lists

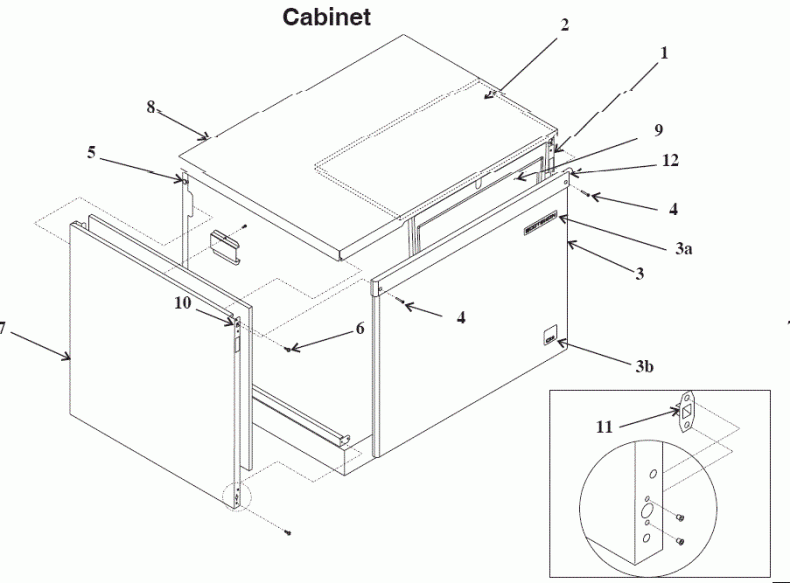

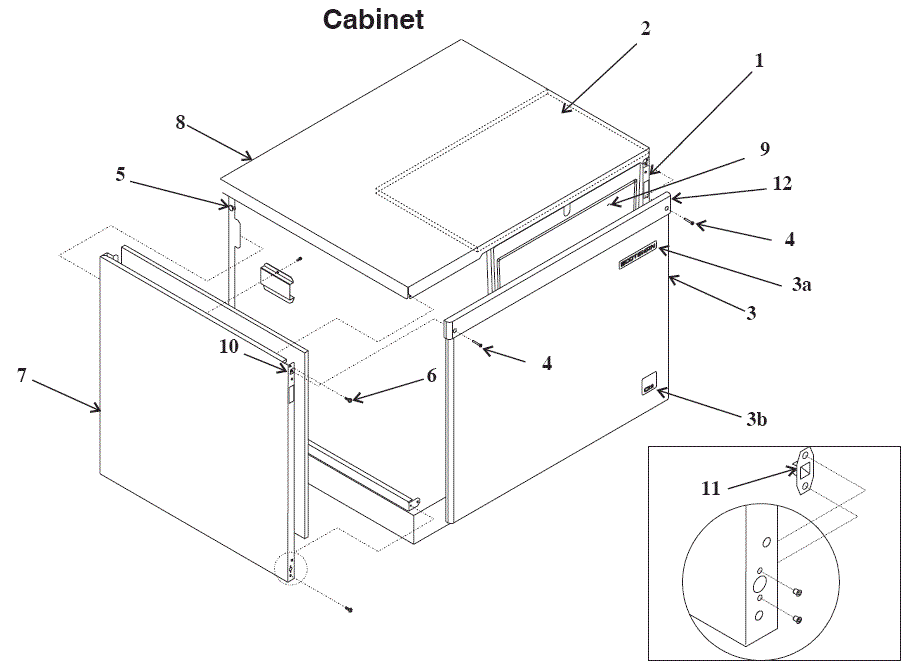

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A37071-021 PANEL RIGHT SIDE GRE - OBSOLETE, NO REPLACEMENT
  A37071-022 PANEL RIGHT SIDE SS Ships In 1-2 Days $173.92
  A38126-021 PANEL RT. SIDE (E) S Ships In 1-2 Days $109.99
2   02-3659-01 INSULATION TOP PANEL Special Order - Ships In 3-4 Weeks $31.31
3   02-3797-21 PANEL FRONT KIT - GREY PLASTIC Ships In 3-4 Weeks $170.18
  03-1733-01 BALL STUD Ships In 1-2 Days $4.80
  A37167-001 FRONT PANEL KIT Special Order - Ships In 3-4 Weeks $239.78
  A37488-031 PANEL FRONT KIT -SS Ships In 1-2 Days $198.80
  A35964-002 PANEL FT SS - REPLACED BY A37167-001
3a   15-0808-03 EMBLEM - STICK ON - REPLACED BY 15-0808-01
3b   15-0792-02 EMBLEM CM3 Ships In 1-2 Days $23.87
4   03-1735-03 SCREW Ships 1 - 2 Days $6.60
03-1404-12 SCREW Ships In 1-2 Days $1.85
  03-1419-22 SCREW Ships In 1-2 Days $1.85
5   02-1875-03 PLUG Ships In 1-2 Days $1.75
6   03-1531-01 SCREW Ships In 1-2 Days $1.85
03-1403-19 SCREW Ships In 1-2 Days $1.85
7   A37070-021 PANEL LEFT SIDE GREY - OBSOLETE, NO REPLACEMENT
A - D Series   A37070-022 PANEL LEFT SIDE SS Ships In 1-2 Days $168.46
E Series   A38127-021 SCOTSMAN PANEL LEFT SIDE (E) Special Order - Ships In 3-4 Weeks $119.16
8   A35965-001 PANEL TOP GREY - OBSOLETE, NO REPLACEMENT
  A35965-002 PANEL TOP SS Ships In 1-2 Days $248.51
  02-3822-21 PANEL TOP - PLASTIC Special Order - -Ships in 3-4 Weeks $130.87
9a 02-3663-01 Scotsman Evaporator Cover CME - 02-3663-01 In Stock $34.95
  02-3796-01 INSULATION Ships In 1-2 Days $31.42
02-3663-20 INSULATION PANEL Ships In 1-2 Days $56.26
10   03-1423-06 SPEED NUT Ships In 1-2 Days $2.84
11   03-1733-02 BALL STUD Special Order - Ships In 3-4 Weeks $4.33
12   02-3794-31 TRIM STRIP Ships In 1-2 Days $28.05
  03-1731-02 NUT Ships In 1-2 Days $1.85
