Scotsman FM800
Currently Viewing: FM800 Cabinet  > Go Back To Other Parts Lists

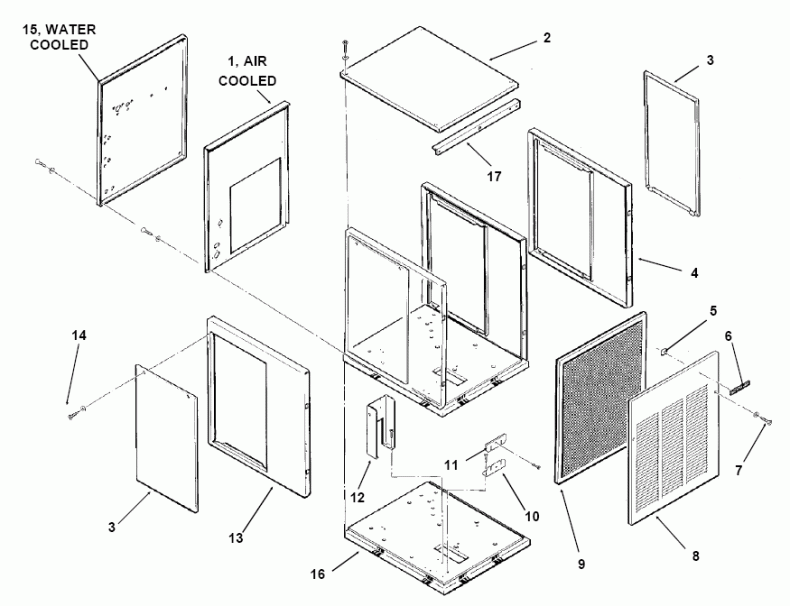

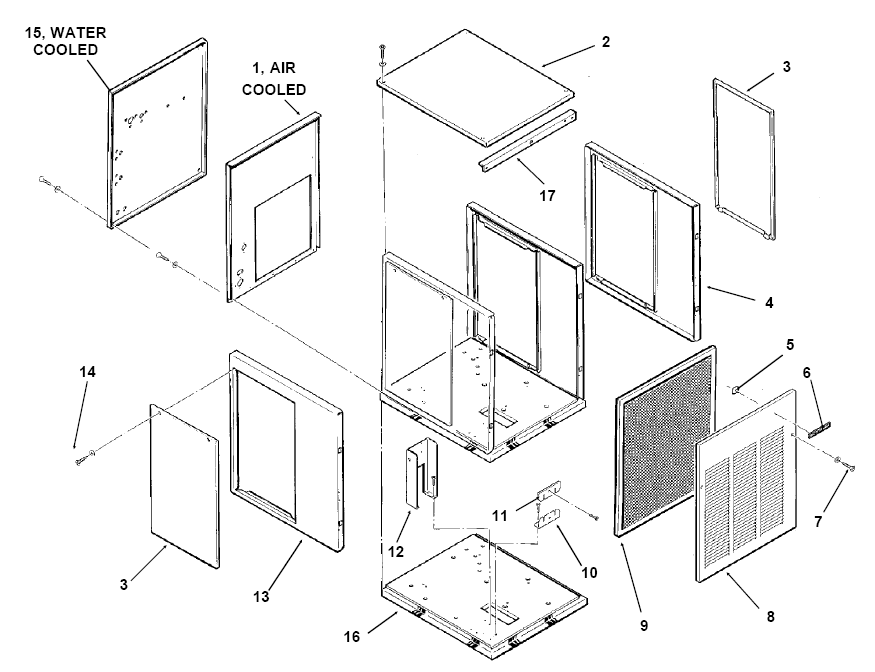

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A34544-001 BACK PANEL - OBSOLETE, NO REPLACEMENT
2   A33256-001 PANEL TOP SANDALWOOD - OBSOLETE, NO REPLACEMENT
  A33256-002 TOP PANEL Ships In 1-2 Days $197.76
3   A34038-001 PANEL SERVICE SANDAL - OBSOLETE, NO REPLACEMENT
  A34038-002 PANEL Ships In 1-2 Days $156.75
4 A33292-001 NLA
  A33292-002 END PANEL RT. Ships In 1-2 Days $116.89
5   03-0271-00 NUT - OBSOLETE, NO REPLACEMENT
6   15-0711-01 EMBLEM SCOTSMAN (BRO Ships In 1-2 Days $33.39
7   03-1419-08 SCREW Ships In 1-2 Days $1.85
8   A33255-001 PANEL FRONT SANDALWO - OBSOLETE, NO REPLACEMENT
  A33255-002 FT. PANEL Ships In 1-2 Days $261.18
9   02-2976-01 Scotsman Filter (Metal Frame) - 02-2976-01 Ships In 1-2 Days $39.98
10 A31462-001 NLA
11 A31461-001 NLA
12   A34039-001 SUPPORT Ships In 1-2 Days $57.94
13   A32435-001 PANEL END LEFT SANDA - OBSOLETE, NO REPLACEMENT
  A32435-002 END PANEL LEFT Ships In 1-2 Days $225.89
14 03-1404-12 SCREW Ships In 1-2 Days $1.85
15   A33252-001 BACK PANEL - OBSOLETE, NO REPLACEMENT
16 A34042-001 NLA
17   A34348-001 FRONT BRACE - A34348-001 Ships In 1-2 Days $43.53
