Scotsman FM800R

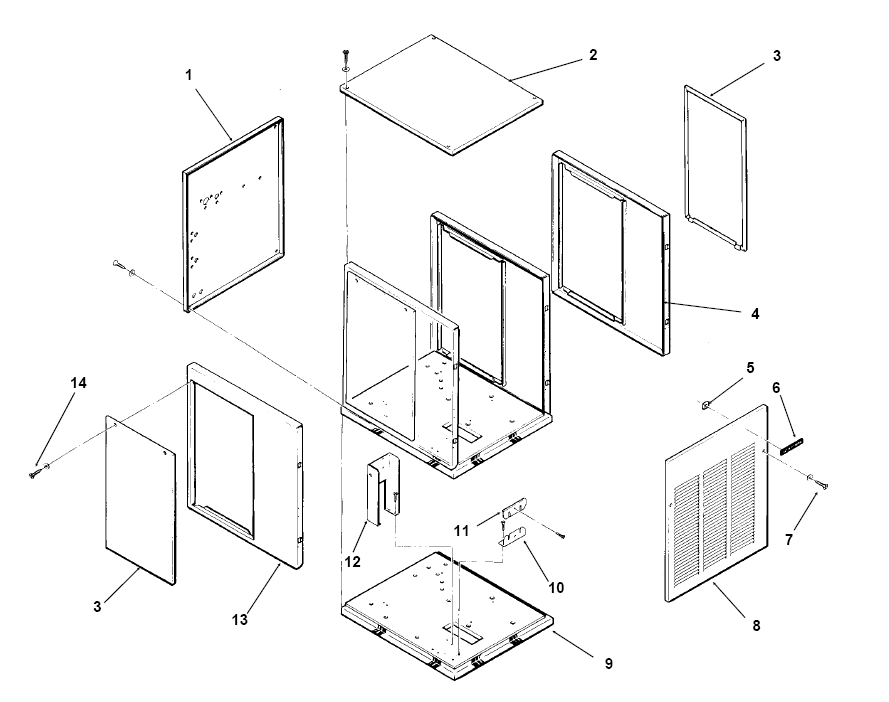

Currently Viewing: FM800R Cabinet Assembly > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Item	Part#	Description	Stock	Price	Qty
1	A33252-001	BACK PANEL - OBSOLETE, NO REPLACEMENT
2	A33256-001	PANEL TOP SANDALWOOD - OBSOLETE, NO REPLACEMENT
	A33256-002	TOP PANEL	Ships In 1-2 Days	$197.76
3	A34038-001	PANEL SERVICE SANDAL - OBSOLETE, NO REPLACEMENT
	A34038-002	PANEL	Ships In 1-2 Days	$156.75
4 A33292-001 NLA
	A33292-002	END PANEL RT.	Ships In 1-2 Days	$116.89
5	03-0271-00	NUT - OBSOLETE, NO REPLACEMENT
6	15-0711-01	EMBLEM SCOTSMAN (BRO	Ships In 1-2 Days	$33.39
7	03-1419-08	SCREW	Ships In 1-2 Days	$1.85
8	A33255-001	PANEL FRONT SANDALWO - OBSOLETE, NO REPLACEMENT
	A33255-002	FT. PANEL	Ships In 1-2 Days	$261.18
9 A34042-001 NLA
10 A341462-001 NLA
11 A31461-001 NLA
12	A34039-001	SUPPORT	Ships In 1-2 Days	$57.94
13	A32435-001	PANEL END LEFT SANDA - OBSOLETE, NO REPLACEMENT
	A32435-002	END PANEL LEFT	Ships In 1-2 Days	$225.89
14	03-1404-12	SCREW	Ships In 1-2 Days	$1.85
