Scotsman FM1202

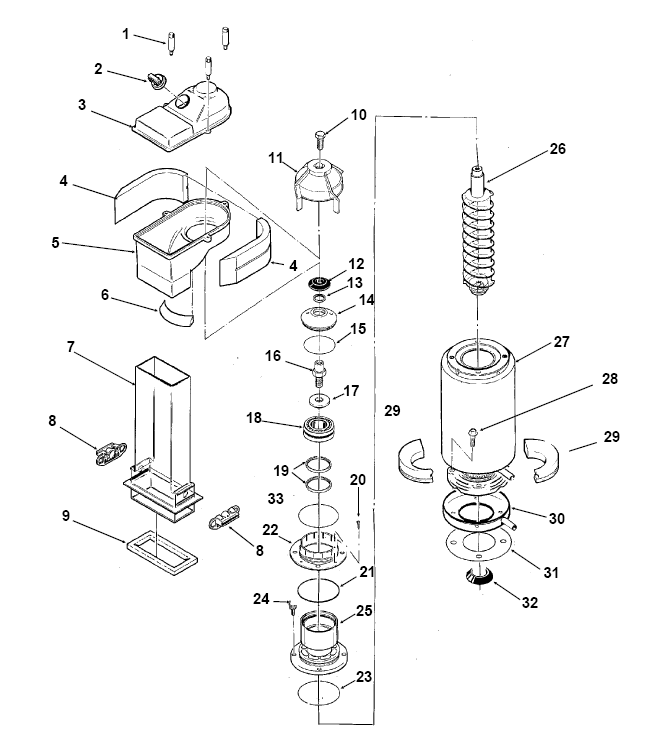

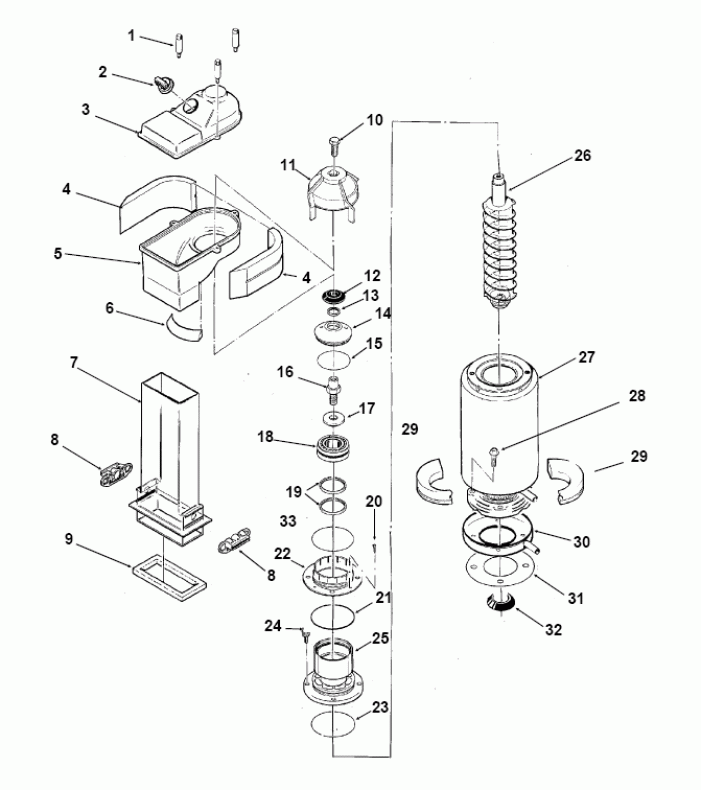

Currently Viewing: FM1202 Evaporator  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   02-2933-01 STUD Ships In 1-2 Days $32.48
2 a32891-021 nla
  13-0617-53 O-RING Ships In 1-2 Days $10.85
  12-2398-01 SWITCH Ships In 1-2 Days $33.08
3   02-2930-01 CHUTE COVER Ships In 1-2 Days $46.12
4   A32963-001 INSULATION TOP HALF Ships In 1-2 Days $23.29
5   02-2926-01 CHUTE BODY Ships In 1-2 Days $45.77
6   A33102-001 INSULATION COLLAR IN Ships In 1-2 Days $18.11
  A35419-020 STRAP KIT Ships In 1-2 Days $32.52
7   02-2929-01 ICE CHUTE-LOWER - OBSOLETE, NO REPLACEMENT
8   A37708-021 BIN LEVEL CONTROL Ships In 1-2 Days $98.87
9   A32930-001 CHUTE GASKET Ships In 1-2 Days $21.55
10   03-1405-52 HEX CAP SCREW Ships In 1-2 Days $10.46
11 02-3001-01 ICE SWEEP Ships In 1-2 Days $42.02
12   13-0871-01 WATER SHED Ships In 1-2 Days $26.71
13 02-2978-01 LIP SEAL Ships In 1-2 Days $31.84
14   02-3128-20 COVER Ships In 1-2 Days $45.88
15   13-0617-54 0-RING Ships In 1-2 Days $8.83
16   08-0660-01 AUGER STUD Ships In 1-2 Days $91.38
18   A34559-020 BEARING-SERVICE Ships In 1-2 Days $180.03
19 02-2977-01 LIP SEAL Ships In 1-2 Days $41.88
20 03-1405-27 nla
21   13-0617-52 O-RING Ships In 1-2 Days $16.79
22 02-2916-01 COLLAR Ships In 1-2 Days $31.35
23   13-0617-45 O-RING Ships In 1-2 Days $8.15
24 03-1544-08 SCREW Ships In 1-2 Days $12.67
25   A34505-020 BREAKER & BEARING Ships In 1-2 Days $707.79
26   A38071-022 AUGER - 15 INCHES LONG Ships In 1-2 Days $641.91
27   A32890-020 EVAPORATOR Ships In 1-2 Days $1,019.78
28 03-1420-03 nla
29 bottom   A32962-001 INSULATION - REPLACED BY 02-4358-01
  02-4358-01 INSULATION 02-4358-01 Ships In 1-2 Days $8.95
30   A32050-001 DRIP PAN Ships In 1-2 Days $33.80
31 13-0704-00 GASKET Ships In 1-2 Days $9.79
32   02-4663-01 WATER SHED Ships In 1-2 Days $33.78
33   13-0617-49 O-RING Ships In 1-2 Days $17.40
