Scotsman FM1202
Currently Viewing: FM1202 Control Box  > Go Back To Other Parts Lists

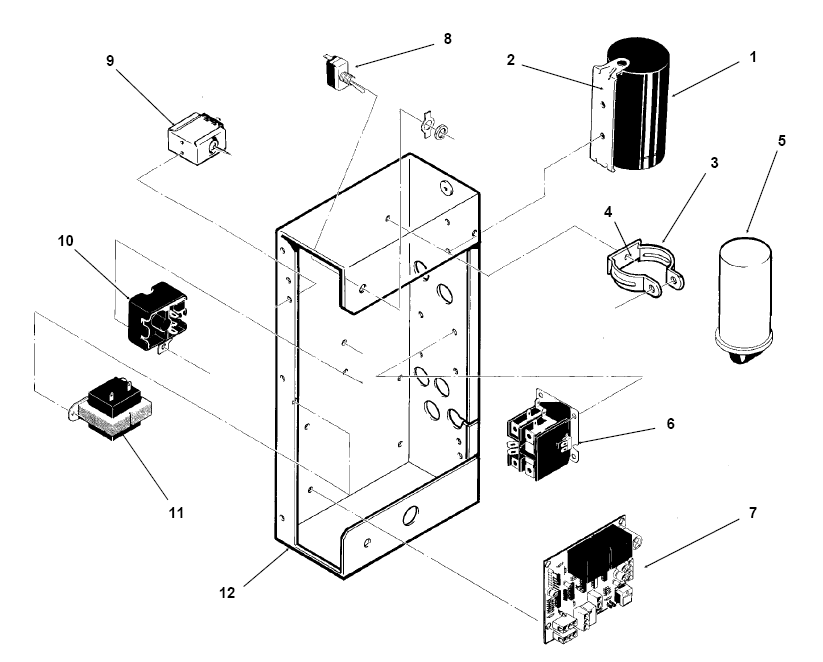

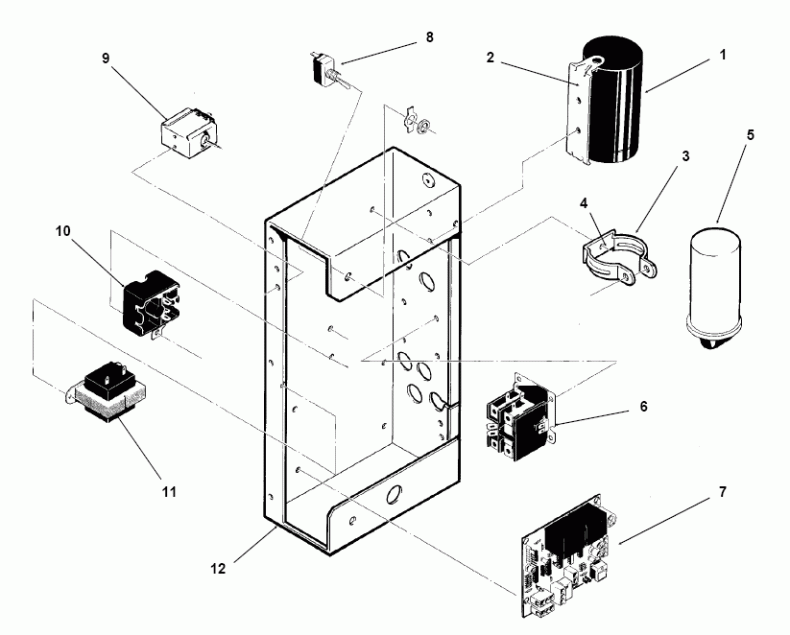

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 18-1901-15 START CAPACITOR Special Order - -Ships in 3-4 Weeks $51.43
  18-1901-23 START CAPACITOR - OBSOLETE, NO REPLACEMENT
  18-2200-38 CAPACITOR CAP Special Order - -Ships in 3-4 Weeks $11.93
2   18-2200-39 BRACKET - OBSOLETE, NO REPLACEMENT
  03-1638-04 SCREW - OBSOLETE, NO REPLACEMENT
03-1417-15 nla
3   A32872-001 BRACKET -OBSOLETE
03-1652-02 nla
03-0255-04 nla
4   03-1638-03 SCREW Ships In 1-2 Days $1.85
5 18-1902-53 RUN CAPACITOR Ships In 1-2 Days $70.59
6 12-2048-02 nla
  12-0739-02 MAG RELAY Ships In 1-2 Days $140.31
7   A37750-022 CONTROL BOARD KIT A37750-022 Ships In 1-2 Days $502.54
8   12-0426-01 TOGGLE SWITCH - OBSOLETE
9   11-0447-20 PRESSURE CONTROL Ships In 1-2 Days $123.59
10 60hz   18-1903-33 RELAY Ships In 1-2 Days $95.78
50hz   18-1903-46 RELAY Ships In 1-2 Days $74.19
11   12-2285-22 TRANSFORMER Ships In 1-2 Days $108.29
13   12-2337-02 PLUG - OBSOLETE, NO REPLACEMENT
14   12-2340-01 PLUG Ships In 1-2 Days $18.37
15   A34055-001 COVER CONTROL BOX - OBSOLETE, NO REPLACEMENT
