Scotsman FM1500

Currently Viewing: FM1500 Water Cooled Refrigeration > Go Back To Other Parts Lists

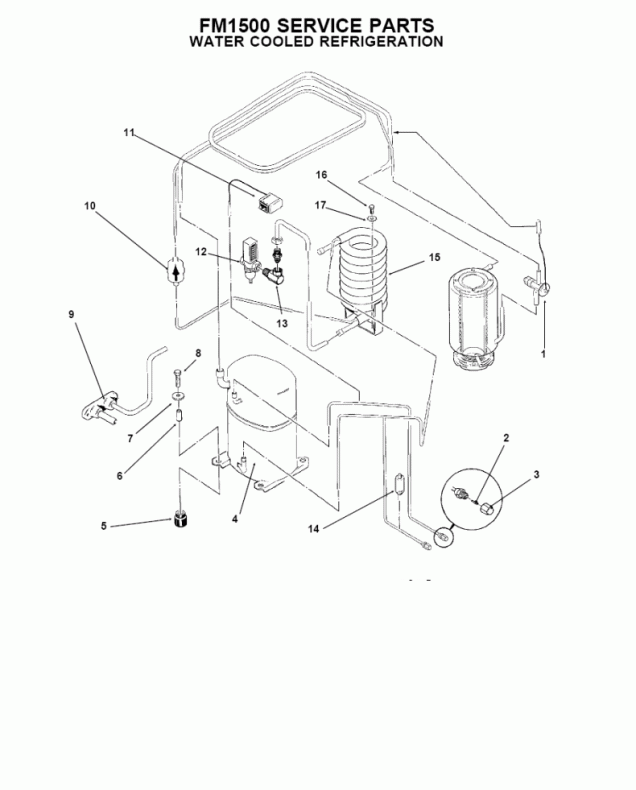

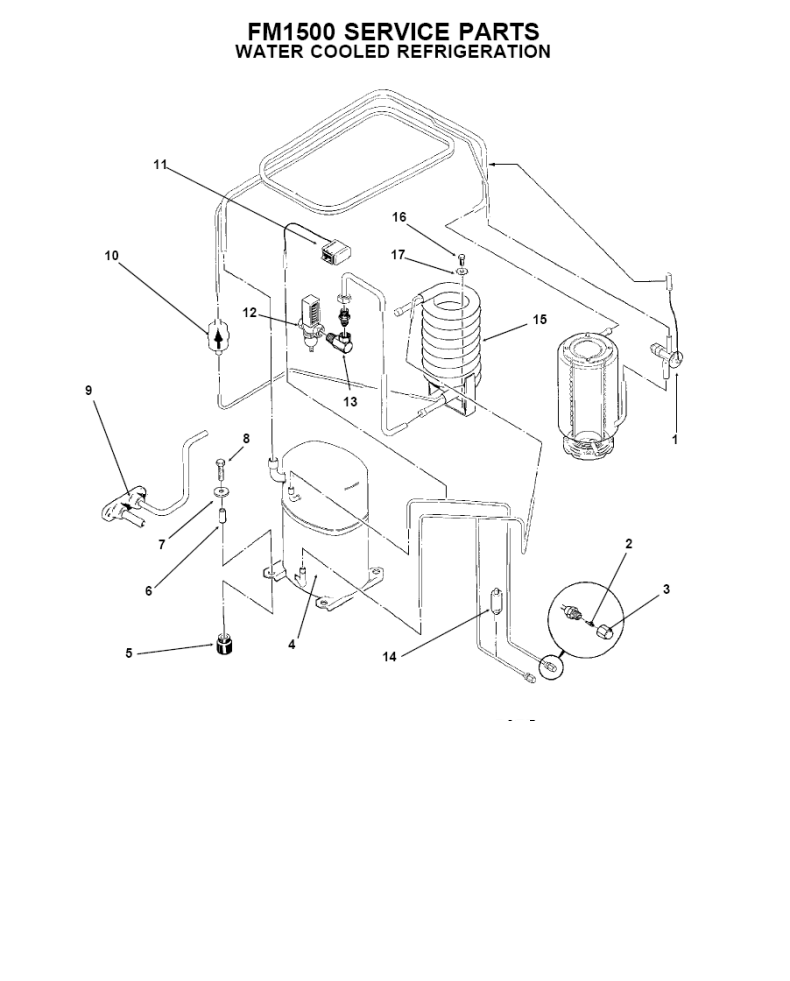

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		16-0780-21	VALVE	Ships In 1-2 Days	$224.82
2		16-0560-00	VALVE CORE	Ships In 1-2 Days	$4.72
3		16-0563-00	BRASS CAP	Ships In 1-2 Days	$14.17
4 208-230/60/3		18-5900-03	COMPRESSOR - OBSOLETE, NO REPLACEMENT
NLA 18-5900-02
5		18-6800-01	GROMMET - OBSOLETE, NO REPLACEMENT
6		18-2300-26	MOUNTING SLEEVE	Ships In 1-2 Days	$5.81
7		03-1407-07	TYPE A PLAIN WASHER	Ships In 1-2 Days	$2.63
8		03-1405-20	HEX CAP SCREW	Ships In 1-2 Days	$1.85
9		A31878-004	ADAPTOR	Ships In 1-2 Days	$119.42
10		02-3319-02	DRIER	Ships In 1-2 Days	$34.34
11		11-0447-20	PRESSURE CONTROL	Ships In 1-2 Days	$123.59
12		11-0424-01	WATER REG. VALVE	Special Order - Ships In 3-4 Weeks	$180.83
13 NLA 16-0401-02
14		11-0446-21	PRESSURE CONTROL - OBSOLETE, NO REPLACEMENT
15		18-6900-25	CONDENSER W/C, A - E Series	Ships In 1-2 Days	$658.28
16		03-1645-01	SCREW	Ships In 1-2 Days	$0.92
17		03-1417-09	TOOTHED LOCKWASHERS - OBSOLETE
