Scotsman FM1202RL

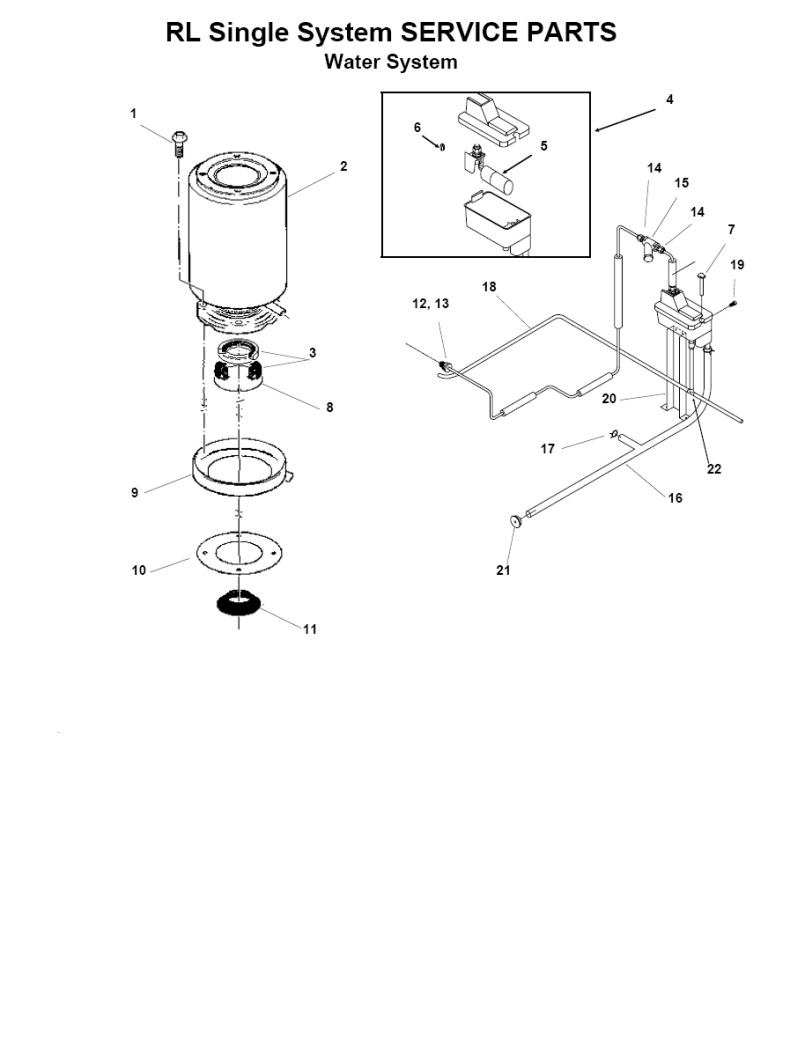

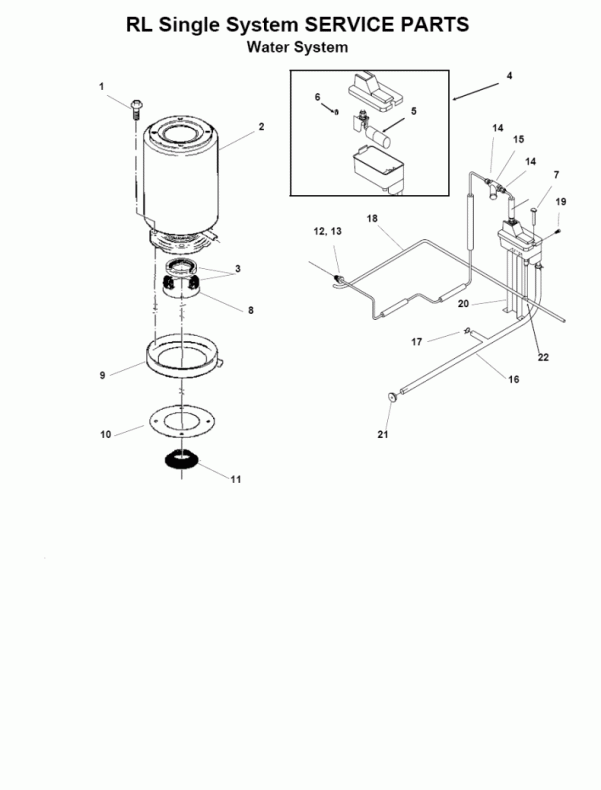

Currently Viewing: FM1202RL Water System  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   03-1405-46 HEX CAP SCREW Ships In 1-2 Days $2.96
2   A32890-020 EVAPORATOR Ships In 1-2 Days $1,019.78
3 02-0929-23 Scotsman Water Seal - 02-0929-23 Ships In 1-2 Days $108.36
4 02-3266-20 Scotsman Reservoir - 02-3266-20 Ships In 1-2 Days $120.16
5   02-3266-21 Scotsman Valve - 02-3266-21
6 02-3266-03 Scotsman Plunger - 02-3266-03 Ships In 1-2 Days $13.12
7   A33101-022 Scotsman Thermo Probe Service - A33101-022 Ships In 1-2 Days $85.95
8 A32777-001 RING Ships In 1-2 Days $25.83
9   A37705-021 DRIP PAN & HOSE KIT Ships In 1-2 Days $139.50
10 13-0704-00 GASKET Ships In 1-2 Days $9.79
11   02-4663-01 WATER SHED Ships In 1-2 Days $33.78
12 A27318-001 WATER INLET FITTING Special Order - Ships In 3-4 Weeks $31.95
13   16-0835-01 FITTING Ships In 1-2 Days $43.36
14   16-1039-01 CONNECTOR MALE Ships In 1-2 Days $25.68
15 16-0162-00 Scotsman Strainer - 16-0162-00 Ships In 1-2 Days $34.95
16   A36154-001 TUBE - PREFORMED Ships In 1-2 Days $41.26
17 NLA 02-1338-00
18   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
19 NLA 03-1639-03
20   A36078-002 BRACKET -OBSOLETE
21   13-0840-01 RUBBER PLUG Special Order - Ships In 3-4 Weeks $2.96
22   16-0670-02 TEE Ships In 1-2 Days $11.72
