Scotsman FM1500R
Currently Viewing: FM11500R_Refrigeration  > Go Back To Other Parts Lists

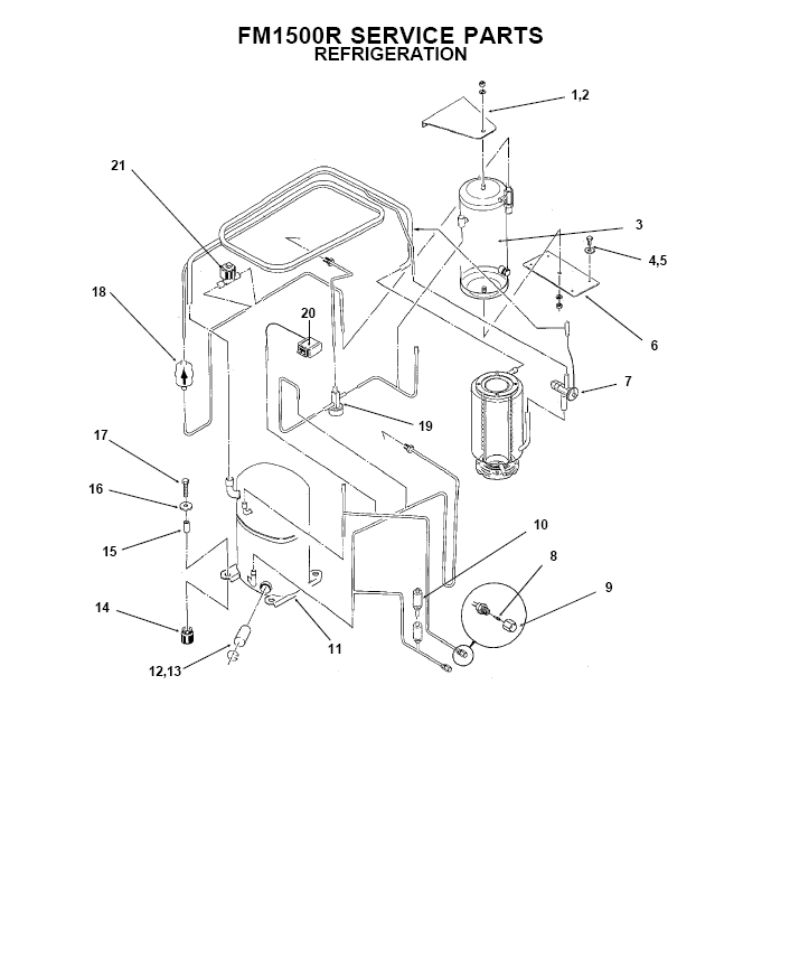

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   03-1406-13 HEX NUTS Ships In 1-2 Days $4.01
2   03-1410-06 HELICAL SPRING LOCKW Ships In 1-2 Days $1.85
3   16-0761-01 RECEIVER Ships In 1-2 Days $453.60
4   03-1645-01 SCREW Ships In 1-2 Days $0.92
5   03-1417-09 TOOTHED LOCKWASHERS - OBSOLETE
6   A31801-002 RECEIVER SUPPORT - OBSOLETE, NO REPLACEMENT
7   16-0780-21 VALVE Ships In 1-2 Days $224.82
8   16-0560-00 VALVE CORE Ships In 1-2 Days $4.72
9   16-0563-00 BRASS CAP Ships In 1-2 Days $14.17
10   11-0446-21 PRESSURE CONTROL - OBSOLETE, NO REPLACEMENT
11   18-5900-03 COMPRESSOR - OBSOLETE, NO REPLACEMENT
12   12-1868-03 HEATER CRANKCASE Ships In 1-2 Days $38.57
14   18-6800-01 GROMMET - OBSOLETE, NO REPLACEMENT
15   18-2300-26 MOUNTING SLEEVE Ships In 1-2 Days $5.81
16   03-1407-07 TYPE A PLAIN WASHER Ships In 1-2 Days $2.63
17   03-1405-20 HEX CAP SCREW Ships In 1-2 Days $1.85
18   02-3319-02 DRIER Ships In 1-2 Days $34.34
19   11-0422-22 CONTROL LOW AMBIENT Ships In 1-2 Days $261.65
20   11-0420-23 PRESSURE CONTROL Ships In 1-2 Days $116.40
21   12-2257-21 SOLENOID - OBSOLETE, NO REPLACEMENT
