Scotsman CME650 Contour Cube Ice Machine
Currently Viewing: CME650WE-* Water Cooled Refrigeration  > Go Back To Other Parts Lists

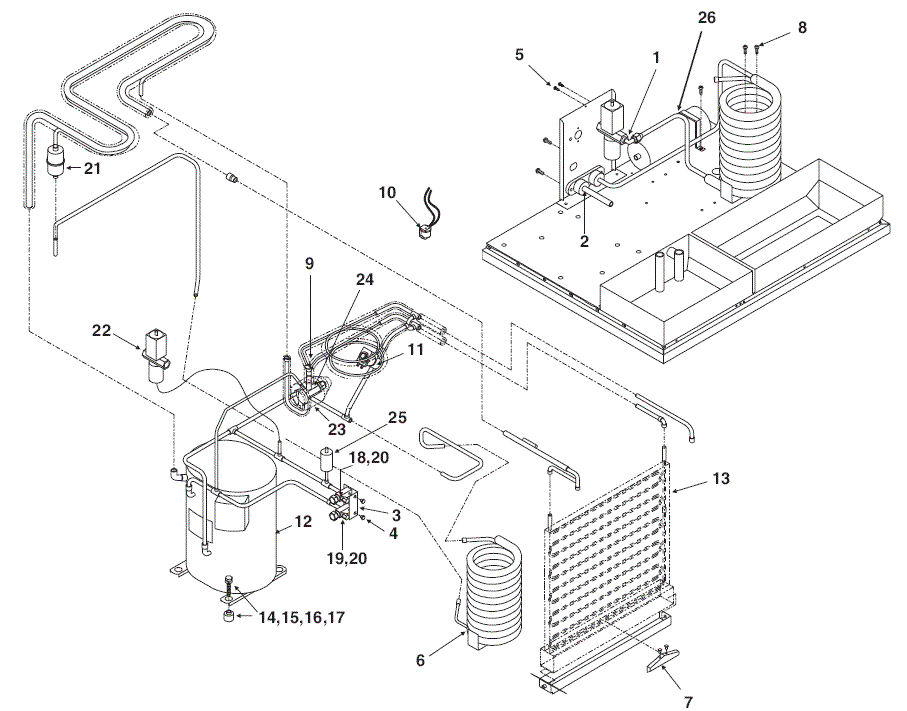

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)...Brass elbow - obsolete
2)...Drain assembly - obsolete
3)...Bracket for valves   A35588-001 BRACKET Ships In 1-2 Days $28.73
4)...Screw   03-0571-02 SCREW Ships In 1-2 Days $6.58
5)...Screw   03-1403-14 SCREW Ships In 1-2 Days $1.85
6)...Condenser   18-6900-25 CONDENSER W/C, A - E Series Ships In 1-2 Days $658.28
7)...End cover - obsolete
8)...Screw, 1/4 - 20 x 1/2   03-1645-01 SCREW Ships In 1-2 Days $0.92
8)...Lockwasher - obsolete   03-1417-08 TOOTHED LOCKWASHERS - OBSOLETE, NO REPLACEMENT
9)...Distributor - obsolete   16-0844-01 DISTRIBUTOR - OBSOLETE, NO REPLACEMENT
10)...Hi Temp Cut Out   12-2300-03 CONTROL CUT-0UT
11)...Hot Gas Valve with coil   12-2417-23 HOT GAS VALVE & COIL Ships In 1-2 Days $200.24
12)... 208-230/60/1 Comp. w/drier   18-8726-23 COMPRESSOR
12)...208-230/60/3 Comp. w/drier   18-8726-25 COMPRESSOR
13)....Evaporator   A30296-020 EVAPORATOR- INDIVIDUAL Ships In 1-2 Days $621.99
14)...Grommet   18-2200-28 MOUNTING GROMMET Ships In 1-2 Days $7.26
15)...Sleeve   18-2200-27 MOUNTING SLEEVE Ships In 1-2 Days $5.81
16)...Washer   03-1407-07 TYPE A PLAIN WASHER Ships In 1-2 Days $2.63
17)...Screw   03-1405-20 HEX CAP SCREW Ships In 1-2 Days $1.85
18)...Lo side access valve (w/caps)   16-0832-20 PROCESS VALVE KIT Ships In 1-2 Days $45.77
19)...Hi side access valve (w/caps)   16-0832-21 PROCESS VALVE & CAPS Ships In 1-2 Days $45.44
20)...Stem cap   16-0832-02 VALVE SET SCREW CAP Ships In 1-2 Days $10.34
20)...Core cap   16-0832-03 VALVE CORE CAP Ships In 1-2 Days $12.43
21)...Drier   02-3319-02 DRIER Ships In 1-2 Days $34.34
22)...Water regulating valve   11-0478-01 WATER REG. VALVE Ships In 1-2 Days $204.93
23)...TXV insulation   A36067-001 INSULATION Ships In 1-2 Days $25.53
24)...TXV   16-0867-22 TXV Ships In 1-2 Days $189.66
25)...Hi Pressure Cut Out Switch   11-0486-21 HIGH PRESSURE CONTRO Ships In 1-2 Days $139.87
26)...Receiver   02-2628-02 RECIEVER Ships In 1-2 Days $80.52
