Scotsman FM2402R
Currently Viewing: FM2402R Refrigeration System  > Go Back To Other Parts Lists

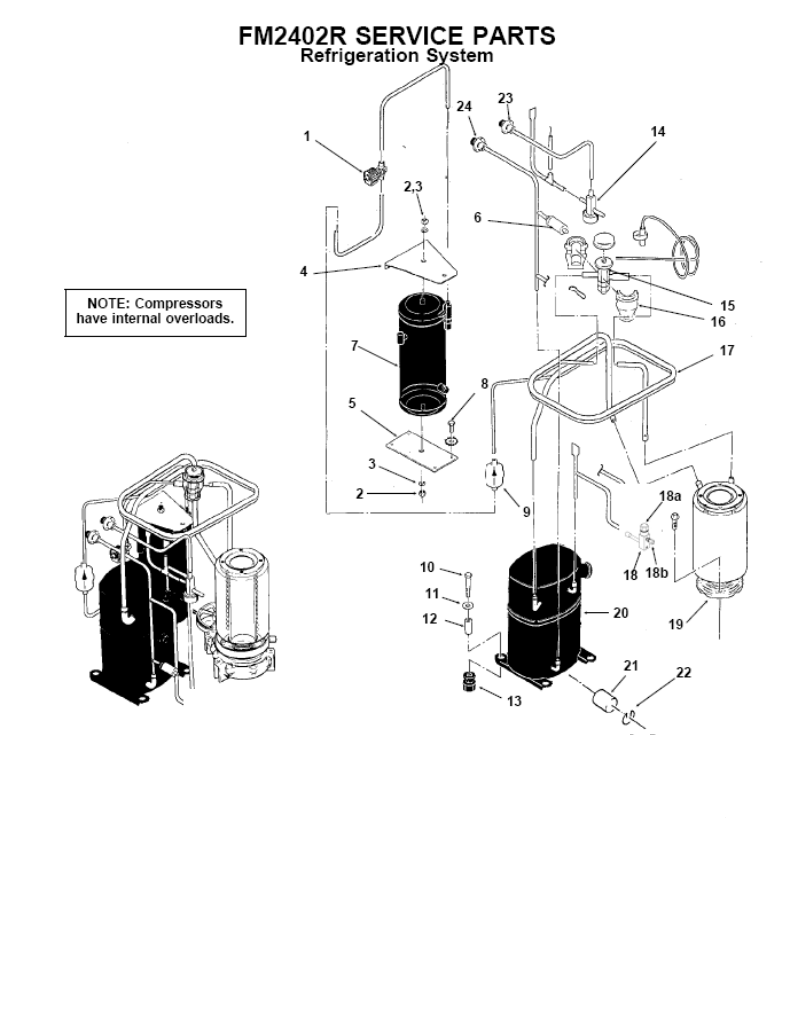

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   12-2257-21 SOLENOID - OBSOLETE, NO REPLACEMENT
2   03-1406-13 HEX NUTS Ships In 1-2 Days $4.01
3   03-1410-06 HELICAL SPRING LOCKW Ships In 1-2 Days $1.85
4   A32968-001 BRACE Ships In 1-2 Days $39.61
5   A31801-002 RECEIVER SUPPORT - OBSOLETE, NO REPLACEMENT
6   11-0446-27 PRESSURE CONTROL - OBSOLETE, NO REPLACEMENT
7   16-0761-01 RECEIVER Ships In 1-2 Days $453.60
8   03-1645-01 SCREW Ships In 1-2 Days $0.92
9   02-3319-02 DRIER Ships In 1-2 Days $34.34
10   03-1405-20 HEX CAP SCREW Ships In 1-2 Days $1.85
11   03-1407-07 TYPE A PLAIN WASHER Ships In 1-2 Days $2.63
12   18-2300-27 MOUNTING SLEEVE Ships In 1-2 Days $5.81
13   18-6800-01 GROMMET - OBSOLETE, NO REPLACEMENT
14   11-0422-22 CONTROL LOW AMBIENT Ships In 1-2 Days $261.65
15   11-0477-20 EXPASNSION VALVE Ships In 1-2 Days $174.67
16   A32961-020 INSULATION KIT Ships In 1-2 Days $50.94
17   A35566-001 SUCTION LINE -Obsolete
18   16-0832-20 PROCESS VALVE KIT Ships In 1-2 Days $45.77
  16-0832-02 VALVE SET SCREW CAP Ships In 1-2 Days $10.34
  16-0832-03 VALVE CORE CAP Ships In 1-2 Days $12.43
19   A32890-020 EVAPORATOR Ships In 1-2 Days $1,019.78
20   18-8716-23 COMPRESSOR
  18-8716-25 COMPRESSOR - OBSOLETE
21   18-2308-01 CRANKCASE HEATER Ships In 1-2 Days $44.81
22 NLA 18-230-01
23   16-0701-06 COUPLING - REPLACED BY 16-0850-03
