Scotsman FME2400 Parts Diagram

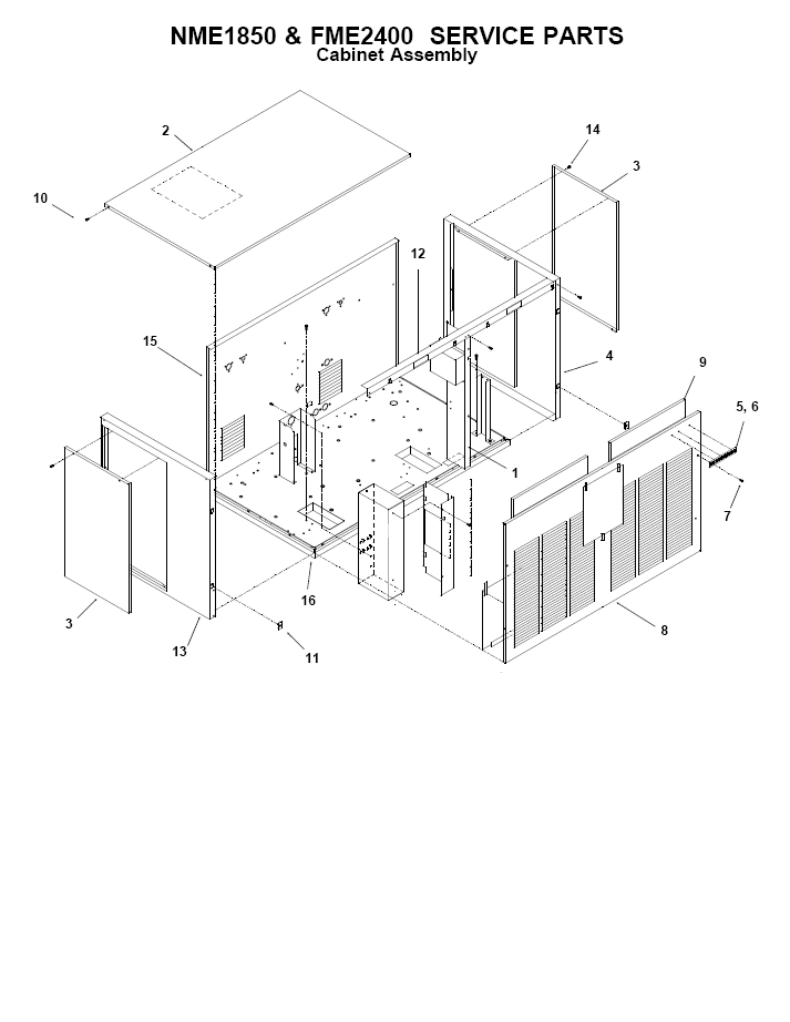

Currently Viewing: FME2400 Cabinet Assembly  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A34286-001 SUPPORT-CENTER Ships In 1-2 Days $52.20
2   A32461-001 PANEL TOP SANDALWOOD - OBSOLETE, NO REPLACEMENT
  A32461-015 PANEL TOP GREY - OBSOLETE, NO REPLACEMENT
  A32461-002 TOP PANEL Ships In 1-2 Days $276.47
3   A34038-001 PANEL SERVICE SANDAL - OBSOLETE, NO REPLACEMENT
  A34038-015 PANEL SERVICE GREY - OBSOLETE, NO REPLACEMENT
  A34038-002 PANEL Ships In 1-2 Days $156.75
4 NLA a33292-001
  A33292-015 PANEL END RT GREY - OBSOLETE, NO REPLACEMENT
  A33292-002 END PANEL RT. Ships In 1-2 Days $116.89
5   03-0271-00 NUT - OBSOLETE, NO REPLACEMENT
6   15-0711-01 EMBLEM SCOTSMAN (BRO Ships In 1-2 Days $33.39
  15-0808-03 EMBLEM - STICK ON - REPLACED BY 15-0808-01
7   03-1419-22 SCREW Ships In 1-2 Days $1.85
8   A34294-001 PANEL FRONT SANDALWO - OBSOLETE, NO REPLACEMENT
  A34294-015 PANEL FRONT GREY - OBSOLETE, NO REPLACEMENT
  A34294-002 FT. PANEL Ships In 1-2 Days $383.98
9   02-2976-01 Scotsman Filter (Metal Frame) - 02-2976-01 Ships In 1-2 Days $39.98
  03-1660-01 FILTER CLIP - OBSOLETE, NO REPLACEMENT
10   03-1531-01 SCREW Ships In 1-2 Days $1.85
11   02-0836-00 CATCH ZINC Ships In 1-2 Days $11.30
12   A34287-001 FT. BRACE - A34287-001 Ships In 1-2 Days $27.56
13   A32435-001 PANEL END LEFT SANDA - OBSOLETE, NO REPLACEMENT
  A32435-015 PANEL END LT GREY - OBSOLETE, NO REPLACEMENT
  A32435-002 END PANEL LEFT Ships In 1-2 Days $225.89
14 03-1404-12 SCREW Ships In 1-2 Days $1.85
15 NLA a36517-001
NLA a36517-15
16   A36554-001 BASE Ships In 1-2 Days $815.77
