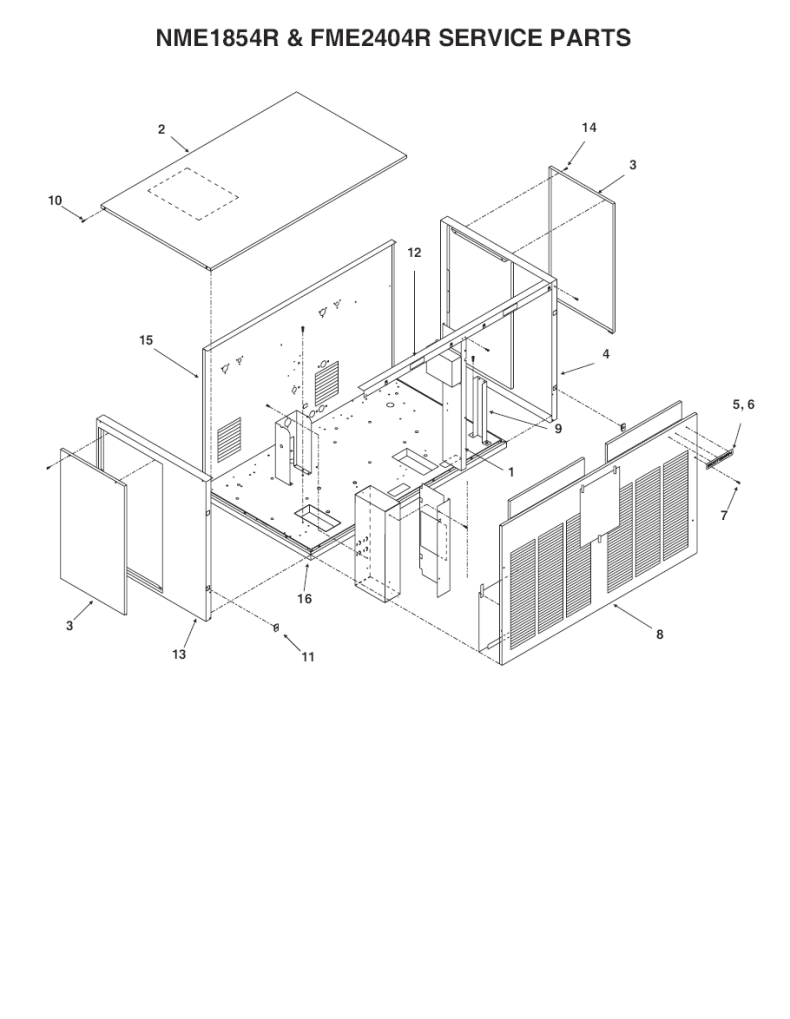

Scotsman FME2404R Parts Diagram

Currently Viewing: FME2404R Cabinet Assembly > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		A34286-001	SUPPORT-CENTER	Ships In 1-2 Days	$52.20
2		A32461-002	TOP PANEL	Ships In 1-2 Days	$276.47
3		A34038-002	PANEL	Ships In 1-2 Days	$156.75
4		A33292-002	END PANEL RT.	Ships In 1-2 Days	$116.89
5		03-0271-00	NUT - OBSOLETE, NO REPLACEMENT
6		15-0711-01	EMBLEM SCOTSMAN (BRO	Ships In 1-2 Days	$33.39
		15-0808-03	EMBLEM - STICK ON - REPLACED BY 15-0808-01
7		03-1419-22	SCREW	Ships In 1-2 Days	$1.85
8		A34294-002	FT. PANEL	Ships In 1-2 Days	$383.98
9 NLA a36078-001
10		03-1531-01	SCREW	Ships In 1-2 Days	$1.85
11		02-0836-00	CATCH ZINC	Ships In 1-2 Days	$11.30
12		A34287-001	FT. BRACE - A34287-001	Ships In 1-2 Days	$27.56
13		A32435-002	END PANEL LEFT	Ships In 1-2 Days	$225.89
14		03-1404-12	SCREW	Ships In 1-2 Days	$1.85
15 NLA a36517-002
16		A36554-001	BASE	Ships In 1-2 Days	$815.77
