You Are Here: Home > Scotsman HC400
Scotsman HC400

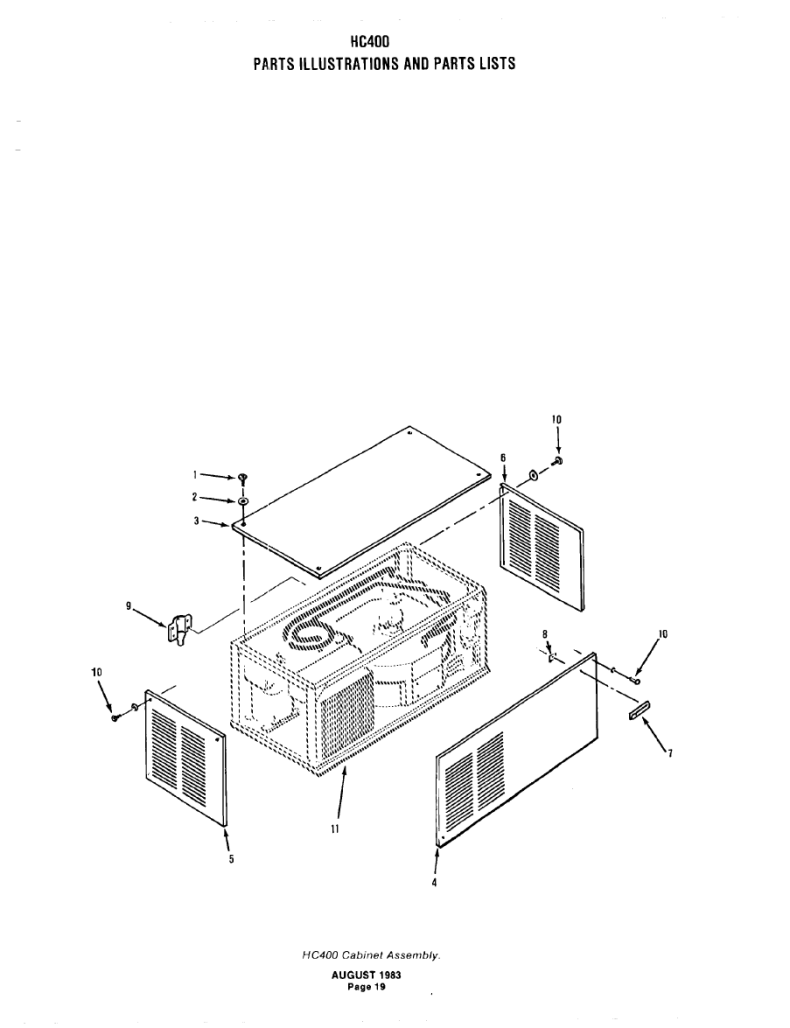

Currently Viewing: HC400 Cabinet Assembly  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Jump To The Parts List
click to open the full-size image in a new window
Item   Part# Description Stock Price Qty
1   03-1419-09 SCREW Ships In 1-2 Days $1.85
2   03-1417-08 TOOTHED LOCKWASHERS - OBSOLETE, NO REPLACEMENT
3 NLA a23784-006
NLA a23784-002
4 NLA a23785-005
NLA a23785-002
5 NLA a23782-006
NLA a23782-002
6 NLA a23783-006
NLA a23783-002
7   15-0711-01 EMBLEM SCOTSMAN (BRO Ships In 1-2 Days $33.39
8   03-0271-00 NUT - OBSOLETE, NO REPLACEMENT
9   02-2296-01 MC BASE DRAIN - OBSOLETE, NO REPLACEMENT
10 NLA 02-1404-10
11 NLA a26178-001
