Scotsman HD22

Currently Viewing: HD22 Front and Top Panels > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

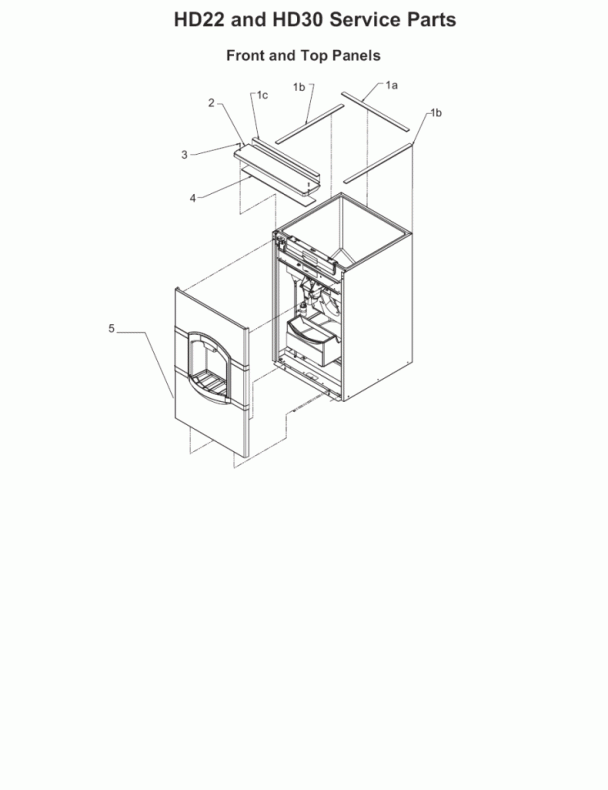

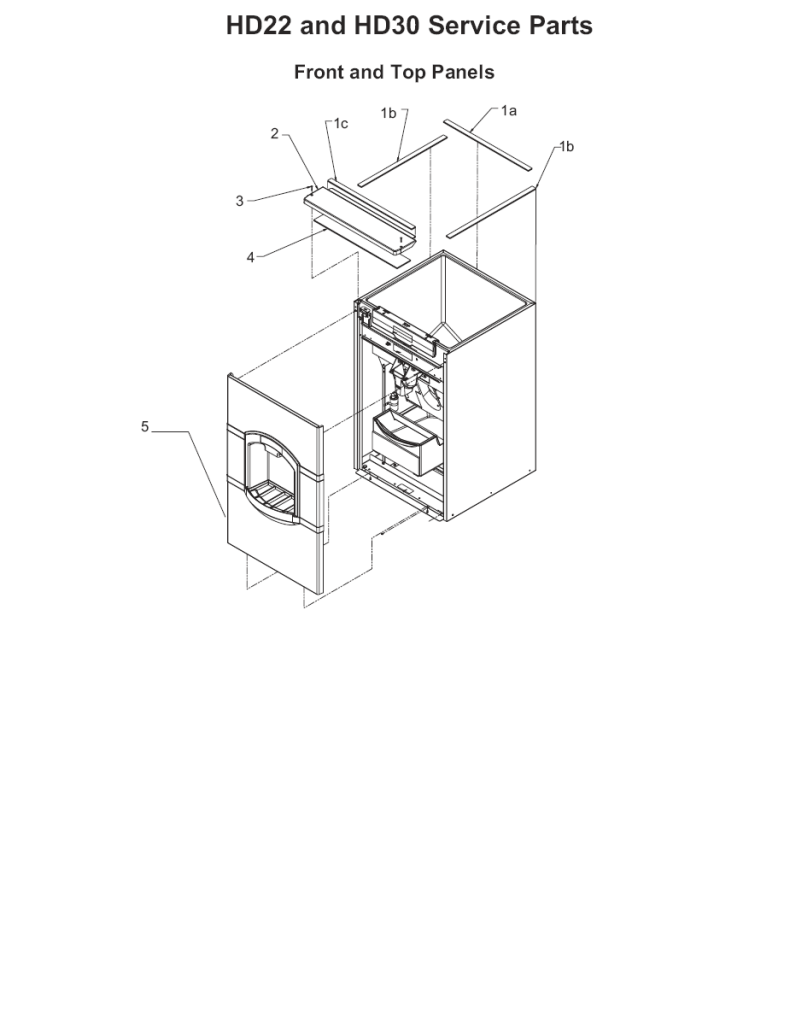

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		19-0503-04	Scotsman 1/4 IN FOAM RUBBER GASKET	Ships In 1-2 Days	$6.46
1a Use 27.5" for HD30, 19.25" for HD22
1b Use 27.88"
1c Use 27.25" for HD30, 19.25" for HD22
2		02-3997-31	Scotsman Panel Top HD30 - 02-3997-31	Special Order - Ships In 3-4 Weeks	$54.18
		02-3997-33	PANEL TOP HD22	Special Order - Ships In 3-4 Weeks	$55.70
3		03-1735-03	SCREW	Ships 1 - 2 Days	$6.60
4		02-3998-01	INSULATION PANEL HD3	Ships In 1-2 Days	$26.44
		02-3998-02	INSULATION PANEL HD2	Special Order - Ships In 3-4 Weeks	$24.61
5		A38318-021	PANEL FRONT HD30B/W	Special Order - Ships In 3-4 Weeks	$323.88
		A38318-023	PANEL FRONT HD30N	Ships In 1-2 Days	$368.25
		A38319-021	PANEL FRONT HD22	Ships In 1-2 Days	$488.93
