Scotsman HD150

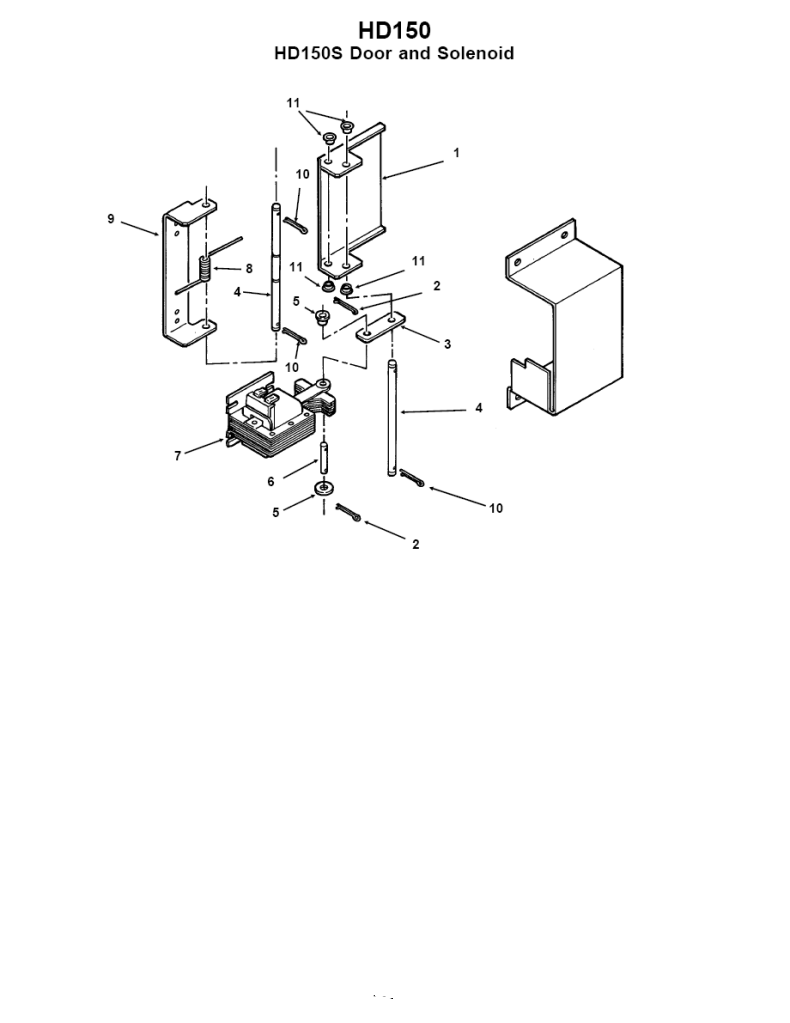

Currently Viewing: HD150 Door and Solenoid > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		A34801-001	DOOR	Ships In 1-2 Days	$39.38
2		03-0396-01	PIN COTTER - REPLACED BY 03-0396-08
3		02-3089-02	SOLENOID LINK - REPLACED BY A38098-001
4		02-3088-01	AXEL	Ships In 1-2 Days	$31.78
5		03-1407-02	TYPE A PLAIN WASHERS	Special Order - -Ships in 3-4 Weeks	$1.85
6		A32685-001	LINKAGE PIN-MED.	Ships In 1-2 Days	$33.16
7		12-2862-01	SOLENOID	Ships In 1-2 Days	$129.58
8		A32690-001	Dispenser Door Spring	Ships In 1-2 Days	$19.58
9		A34802-001	HINGE	Ships In 1-2 Days	$28.68
10		03-0396-08	PIN COTTER	Ships In 1-2 Days	$1.85
11		02-3187-01	BUSHING - REPLACED BY 12-1213-02
12		A35623-001	KIT - DOOR RS/IS -OBSOLETE
