You Are Here: Home > Scotsman HD150
Scotsman HD150
Currently Viewing: HD150 Kit Parts  > Go Back To Other Parts Lists

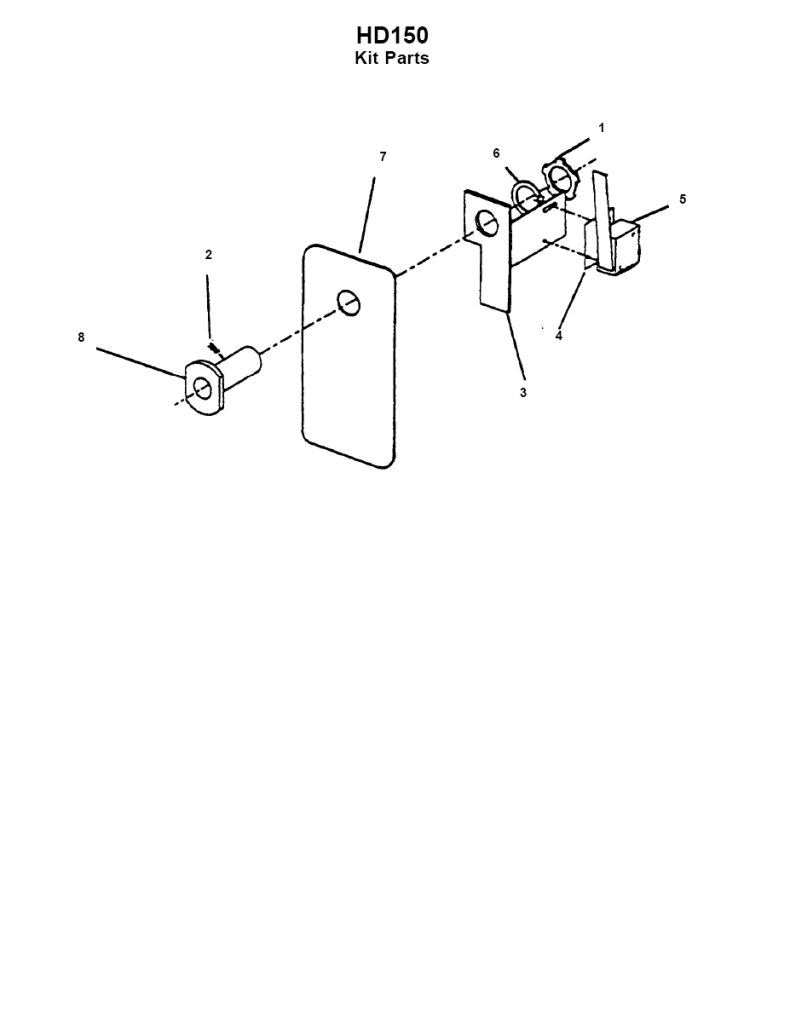

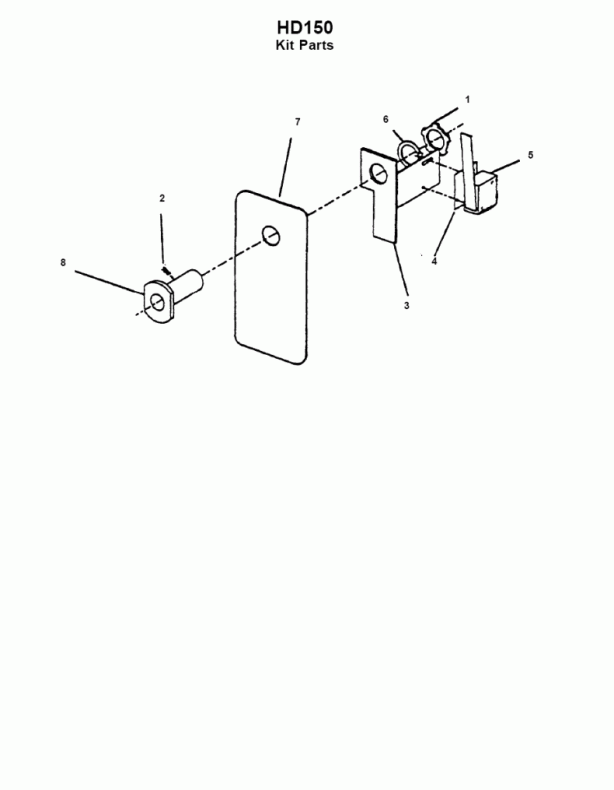

Parts List Begins Below The Diagram Image
Jump To The Parts List
click to open the full-size image in a new window
Item   Part# Description Stock Price Qty
KSLDK2 Key Mech Kit for HD150S
1   C01002800 NUT - OBSOLETE, NO REPLACEMENT
2   C19549700 SCREW - OBSOLETE, NO REPLACEMENT
3 NLA c42792800
4 No Number: Barrier
5   C26203100 SWITCH Special Order - Ships In 3-4 Weeks $24.56
6   C80452001 DRAIN WASHER - OBSOLETE, NO REPLACEMENT
7   C80417804 COVER KEY MECH - OBSOLETE, NO REPLACEMENT
8   C42647900 LOCK HOUSING - OBSOLETE, NO REPLACEMENT
KSLDC or KSLDC2 Coin Mech Kit
1 NLA c18223900
2   C46292701 RELAY - REPLACED BY 12-2858-02
3   C80457301 COIN SLIDE MECHANISM - OBSOLETE, NO REPLACEMENT
4   C80457401 COIN BOX - OBSOLETE, NO REPLACEMENT
5   C80457501 MOUNTING PLATE - OBSOLETE, NO REPLACEMENT
6   C80565701 TIMER Ships In 1-2 Days $129.93
7   C80457302 SWITCH - OBSOLETE, NO REPLACEMENT
