Scotsman HD156

Currently Viewing: HD156 Cabinet Parts > Go Back To Other Parts Lists

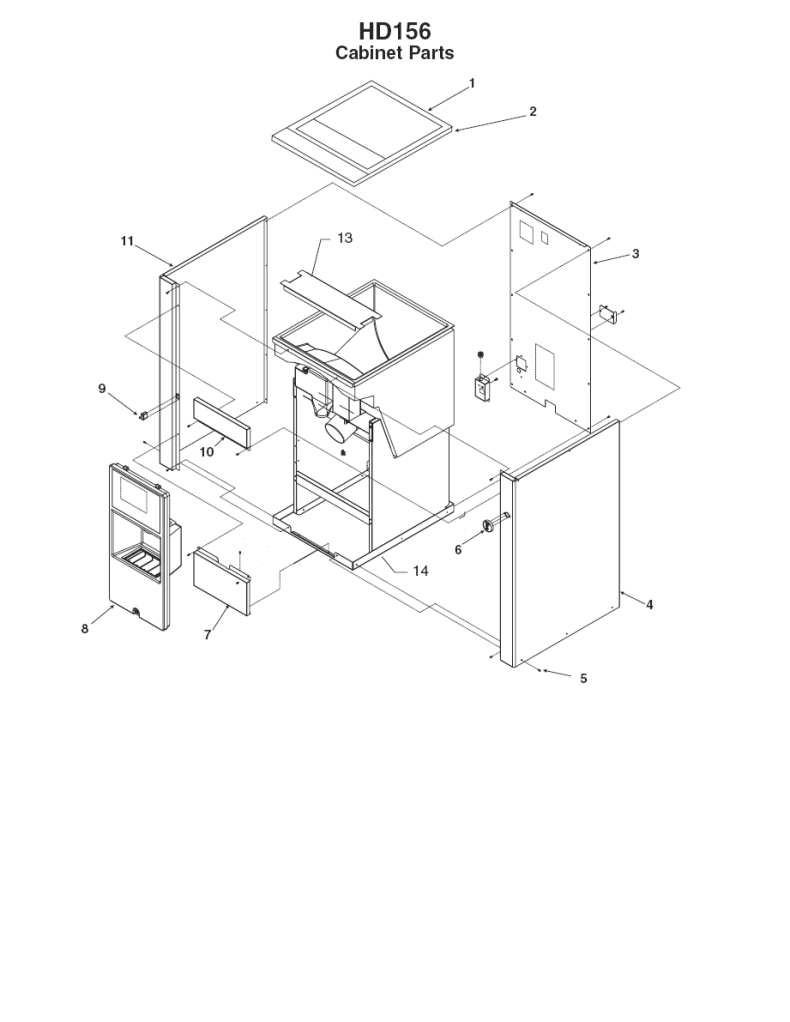

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		19-0503-04	Scotsman 1/4 IN FOAM RUBBER GASKET	Ships In 1-2 Days	$6.46
2		02-3922-01	COVER BIN	Ships In 1-2 Days	$162.03
3		A38080-001	PANEL BACK	Ships In 1-2 Days	$70.96
4		A38078-001	PANEL RT. SIDE	Ships In 1-2 Days	$174.05
5		03-1638-03	SCREW	Ships In 1-2 Days	$1.85
6		02-3773-01	SWITCH PUSH BOTTON	Ships In 1-2 Days	$36.14
7		A38107-001	PANEL BOTTOM	Ships In 1-2 Days	$35.49
8		A38112-001	SINK ASSY	Ships In 1-2 Days	$419.18
9		12-2961-01	MICRO SWITCH	Ships In 1-2 Days	$35.69
10		A38084-001	PANEL TOP FRONT	Ships In 1-2 Days	$28.40
11		A38138-001	PANEL LEFT SIDE	Ships In 1-2 Days	$175.38
12		12-2333-01	TRANSFORMER	Ships In 1-2 Days	$496.06
13		A38156-001	BRACE	Ships In 1-2 Days	$31.95
14		A38077-001	BASE	Ships In 1-2 Days	$124.24
