Scotsman HD156
Currently Viewing: HD156 Bin Parts  > Go Back To Other Parts Lists

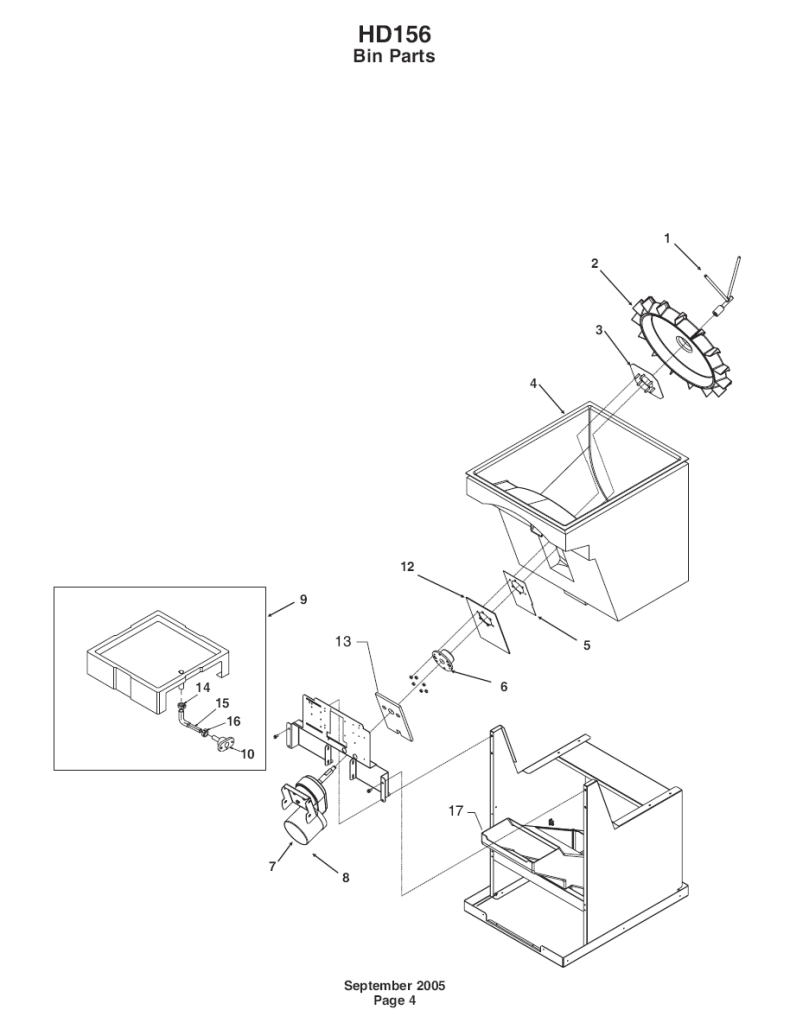

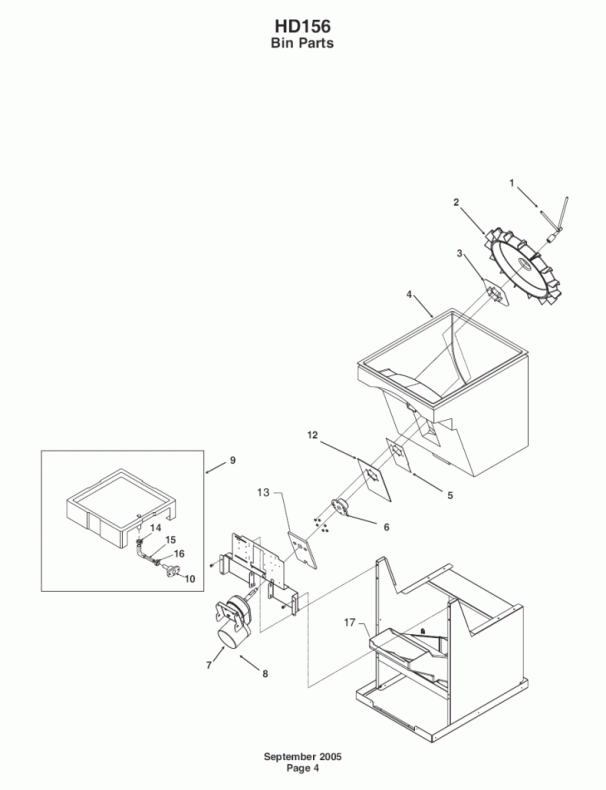

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   02-3925-01 SWEEP ARM Ships In 1-2 Days $148.98
2   02-3040-01 ROTOR Ships In 1-2 Days $83.35
3   A38145-001 PLATE SUPPORT Ships In 1-2 Days $38.96
4   A38117-001 BIN-STORAGE Ships In 1-2 Days $369.05
5   A34817-001 PLATE Ships In 1-2 Days $27.03
6   A34760-001 HUB Ships In 1-2 Days $225.39
6a   02-3075-01 BEARING Ships In 1-2 Days $39.78
6b   02-3065-01 SEAL Ships In 1-2 Days $167.72
6c   03-1408-08 SPECIAL WASHERS Special Order - Ships In 3-4 Weeks $4.96
7   12-2369-21 GEARMOTOR Ships In 1-2 Days $1,132.64
8   C12235901 CAPACITOR - OBSOLETE, NO REPLACEMENT
9   A38021-001 DRAIN PAN KIT Ships In 1-2 Days $203.78
10 NLA a31757-007
11 NLA KLP7
12   13-0937-01 INSULATION PAD - REPLACED BY 13-0940-01
13   13-0938-01 INSULATION PAD - REPLACED BY 13-0939-01
14   02-2814-11 HOSE CLAMP Special Order - Ships In 3-4 Weeks $5.22
15   02-3895-01 HOSE - PRE-FORMED Ships In 1-2 Days $29.93
16   02-2814-10 HOSE CLAMP Ships In 1-2 Days $10.68
17   A38099-001 CHUTE ICE Ships In 1-2 Days $85.16
  A38102-001 SCREEN DRAIN Ships In 1-2 Days $29.09
