Scotsman ID200

Currently Viewing: ID200 Rotary Solenoid > Go Back To Other Parts Lists

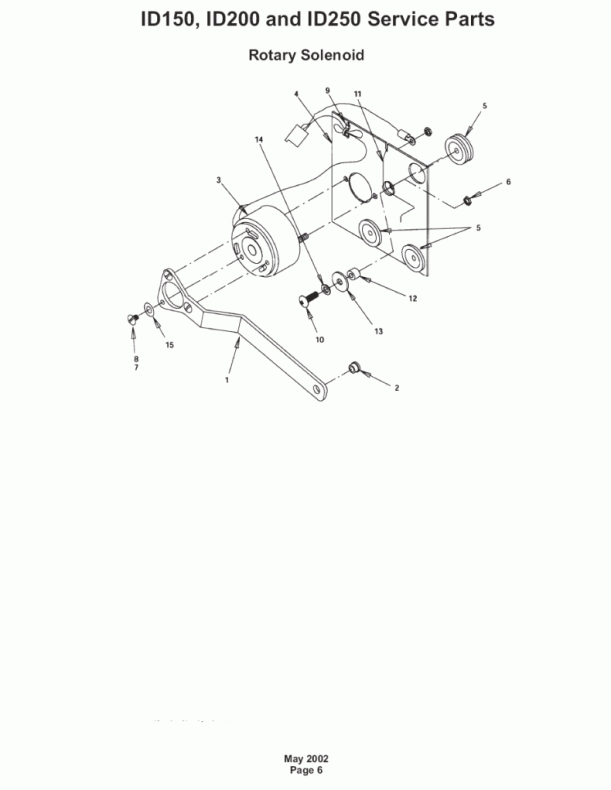

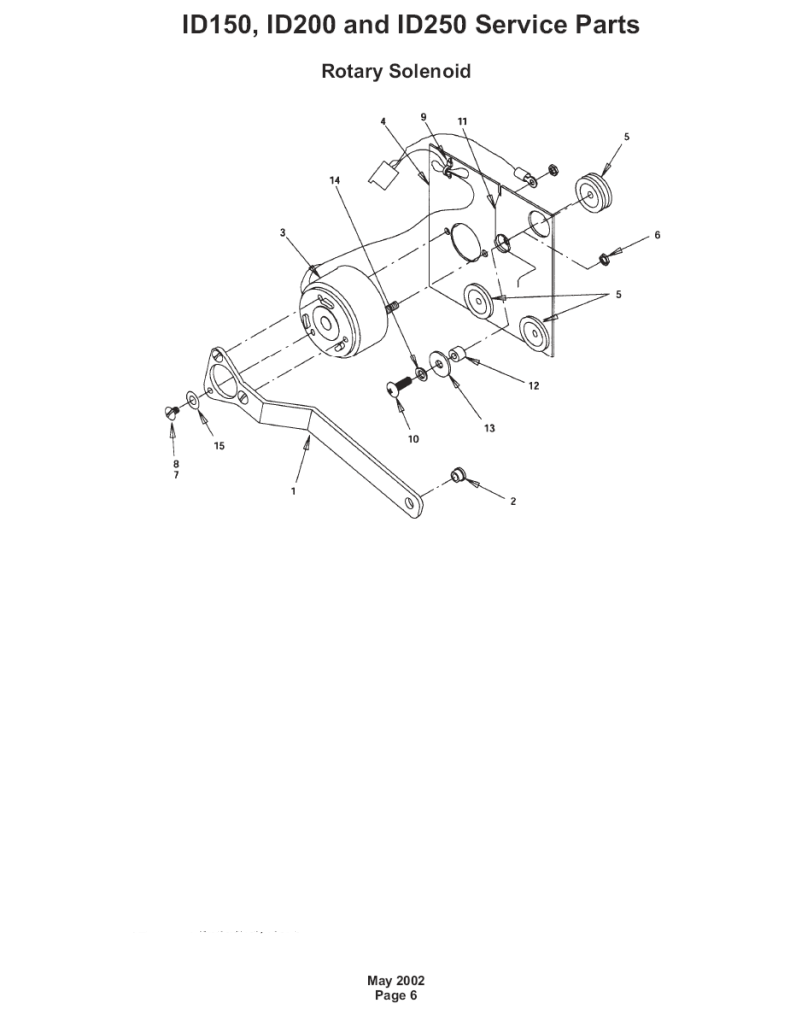

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		R28173	ARM GATE LIFT	Ships In 1-2 Days	$34.00
2		R50754	BEARING-GATE ARM	Ships In 1-2 Days	$22.66
3		R32957	SOLENOID-120 V	Ships In 1-2 Days	$431.82
		R33397	SOLENOID 220-240 VOL - OBSOLETE, NO REPLACEMENT
4		R28172	PLATE SOLENOID MOUNT	Ships In 1-2 Days	$35.80
5		R50752	ISOLATOR	Ships In 1-2 Days	$18.53
6		R70015	NUT HEX NO. 10-32 KE - OBSOLETE, NO REPLACEMENT
7 No Number: Locktite
8		R70162	SCREW NO 8-32 BY 1/4	Ships In 1-2 Days	$1.85
9		R50705	TIE CABLE	Ships In 1-2 Days	$3.17
10		R70165	SCREW	Ships In 1-2 Days	$1.85
11		R71007	SPRING SOLENOID ARM	Ships In 1-2 Days	$12.84
12		R51348	SPACER	Ships In 1-2 Days	$4.62
13		R70067	WASHER-.218 I.D.	Ships In 1-2 Days	$1.85
14		R70057	LOCKWASHER	Ships In 1-2 Days	$0.92
15		R70052	WASHER FLAT - OBSOLETE, NO REPLACEMENT
