Scottsman IS220

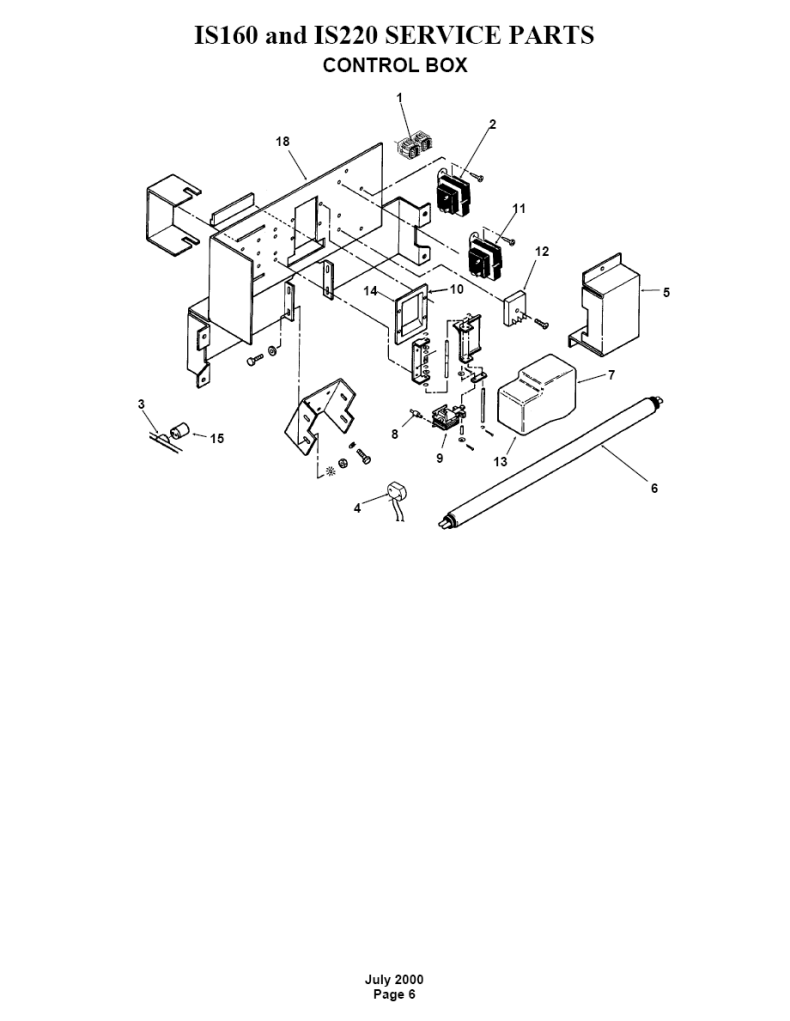

Currently Viewing: IS220 Control Box > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		12-2483-02	RELAY	Special Order - -Ships in 3-4 Weeks	$67.20
2		12-2390-01	TRANSFORMER	Ships In 1-2 Days	$115.53
3		12-2395-01	SOCKET	Ships In 1-2 Days	$26.75
4		12-2385-01	HOLDER - OBSOLETE
5		A36853-001	COVER CONTROL BOX -Obsolete
		A36853-002	COVER CONTROL BOX -obsolete
6		12-2377-01	BULB	Ships In 1-2 Days	$27.92
		12-2377-02	BULB	Ships In 1-2 Days	$30.13
7		02-3067-01	COVER - REPLACED BY A38087-001
8		13-0882-01	MOUNTS	Ships In 1-2 Days	$26.06
9		A34920-001	COVER	Ships In 1-2 Days	$33.39
10		13-0595-00	DOOR GASKET PER FT.	Ships In 1-2 Days	$5.83
11		12-2390-01	TRANSFORMER	Ships In 1-2 Days	$115.53
12		12-2371-01	TIMER - OBSOLETE
13		03-0727-06	THUMB SCREW	Ships In 1-2 Days	$8.18
14		02-3188-01	SPOUT KIT - REPLACED BY 02-3188-20
15		12-2386-01	STARTER	Ships In 1-2 Days	$7.75
16		12-2484-01	BALLAST	Ships In 1-2 Days	$35.82
17 NLA 02-3786-01
18		A37756-001	BRACKET MOTOR -Obsolete
