Scottsman MAR2000

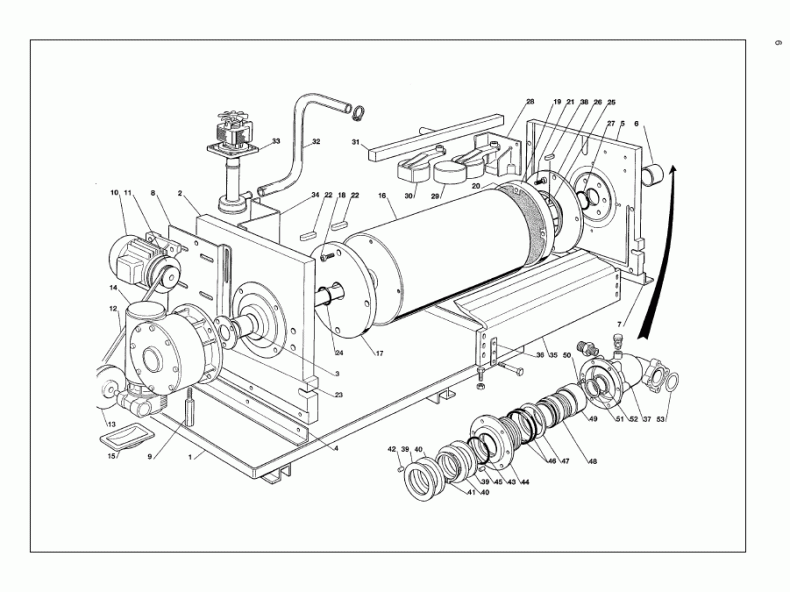

Currently Viewing: MAR2000 Evaporator and Gear Reducer Assembly  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   M781376-03 UNIT BASE Ships In 1-2 Days $391.39
2   M742108-00 BASIN SIDE - GEAR SI Ships In 1-2 Days $1,606.34
3   M651060-00 BUSHING Ships In 1-2 Days $33.46
4   M742274-00 BRACKET - REPLACED BY M724274-00
5   M742129-00 BASIN SIDE - REFR. S Ships In 1-2 Days $1,815.30
6   M651060-02 BUSHING Ships In 1-2 Days $48.63
7   M724274-00 METAL BRACKET Ships In 1-2 Days $33.57
8   M784350-06 PLATE MOUNTING Ships In 1-2 Days $126.92
9   M733211-00 BELT TIGHTNER Ships In 1-2 Days $32.88
10   M620316-05 DRIVE MOTOR 230/60/1 Ships In 1-2 Days $677.16
11   M734597-46 PULLEY - MAR 121 - REPLACED BY M650879-07
  M650879-07 PULLEY Ships In 1-2 Days $201.80
12   M650878-00 BELT Ships In 1-2 Days $37.22
  M650422-18 BELT DRIVE- REPLACED BY M650878-00
13   M734597-27 PULLEY - MAR 101 - REPLACED BY M650879-10
  M650879-10 PULLEY Ships In 1-2 Days $207.99
14   M620377-04 REDUCER Ships In 1-2 Days $1,845.95
15 No Number: Sink
16   M784353-02 EVAP. DRUM Ships In 1-2 Days $8,653.86
17   M742111-00 FLANGE - GEAR SIDE Ships In 1-2 Days $42.06
18   M420014-10 SCREW Ships In 1-2 Days $1.85
19   M742110-00 FLANGE - REFR. SIDE Ships In 1-2 Days $44.06
20   M650615-00 INSULATION Ships In 1-2 Days $13.76
21   M420014-09 SCREW Ships In 1-2 Days $1.85
22   M741092-03 KEY - FIBER Ships In 1-2 Days $39.24
23   M724254-05 FLANGE Ships In 1-2 Days $91.50
24   M640041-18 O-RING Ships In 1-2 Days $3.42
25   M640107-00 RING GASKET & SPRING Ships In 1-2 Days $22.94
26   M742112-00 FLANGE Ships In 1-2 Days $119.38
27   M640041-19 0-RING Ships In 1-2 Days $3.29
28   M743128-02 FLOAT VALVE BRACKET Ships In 1-2 Days $44.91
30   M660585-00 FLOAT VALVE - REPLACED BY F660585-00
31   M650760-00 MAR 121 LOWER SPRAY Ships In 1-2 Days $197.06
32   M610169-05 PLASTIC TUBE Ships In 1-2 Days $25.72
33   M620433-06 WATER PUMP Ships In 1-2 Days $147.13
34   M781417-00 PUMP GUARD Ships In 1-2 Days $100.00
35   M723123-08 SCRAPING BLADE Ships In 1-2 Days $1,309.62
36   M721341-02 PLATE Ships In 1-2 Days $13.52
37   M743127-01 REFRIG. MANIFOLD Ships In 1-2 Days $620.67
38   M724260-00 KEY Ships In 1-2 Days $7.75
39   M724257-00 SPACER Ships In 1-2 Days $77.90
40   M651061-00 WASHER Ships In 1-2 Days $37.99
42   M723133-00 PLUG Ships In 1-2 Days $4.33
43   M640041-13 O-RING Ships In 1-2 Days $32.64
44   M724307-00 RING HOUSING Ships In 1-2 Days $299.67
45   M723133-00 PLUG Ships In 1-2 Days $4.33
46   M640041-10 O-RING Ships In 1-2 Days $22.55
47   M640101-00 O-RING Ships In 1-2 Days $15.26
48   M001028-05 SEAL KIT Ships In 1-2 Days $1,528.90
49   M724308-00 SPACER RING Ships In 1-2 Days $185.88
50   M420014-08 SCREW Ships In 1-2 Days $1.85
51   M724256-01 WASHER Ships In 1-2 Days $26.32
52   M640096-00 GASKET Ships In 1-2 Days $122.69
53   M640076-09 GASKET Ships In 1-2 Days $4.33
