Scottsman MCD200C

Currently Viewing: MC200C Water Pump > Go Back To Other Parts Lists

Parts List Begins Below The Diagram Image

Jump To The Parts List

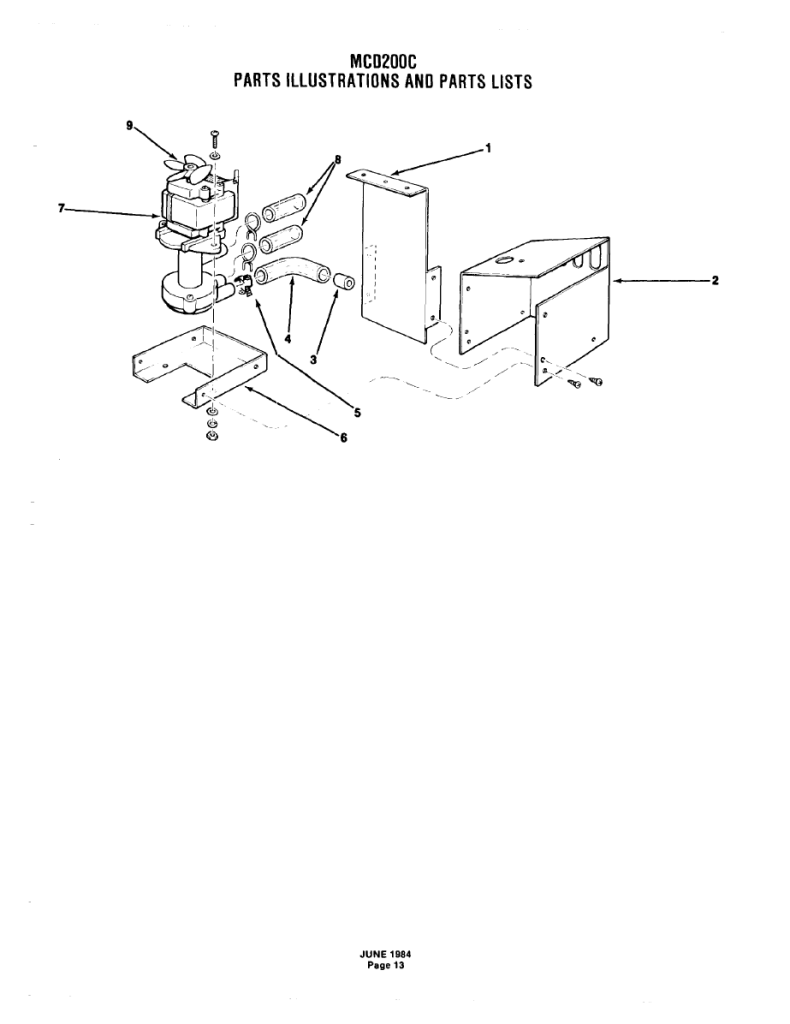

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1 No Number: Pump Mounting Bracket
NLA 03-1404-05
2 No Number: Bracket Pump Box
		03-1407-03	TYPE A PLAIN WASHERS	Ships In 1-2 Days	$1.85
		03-1410-02	HELICAL SPRING LOCKW	Ships In 1-2 Days	$0.92
NLA 03-1403-32
3 NLA a28123-001
4 NLA a27068-002
		02-1530-01	HOSE CLAMP	Ships In 1-2 Days	$12.88
NLA 02-0536-01
5 NLA 02-0179-00
6 No Number: Pump Box Bracket
		03-1407-03	TYPE A PLAIN WASHERS	Ships In 1-2 Days	$1.85
		03-1410-02	HELICAL SPRING LOCKW	Ships In 1-2 Days	$0.92
NLA 03-1403-32
7		A28961-001	WATER PUMP	Ships In 1-2 Days	$282.22
8		13-0674-07	TUBING - PER FT.	Ships In 1-2 Days	$15.26
9		02-1719-00	Fan Blade	Ships In 1-2 Days	$22.46
