Scottsman MCD200C

Currently Viewing: MCD200C Control Box > Go Back To Other Parts Lists

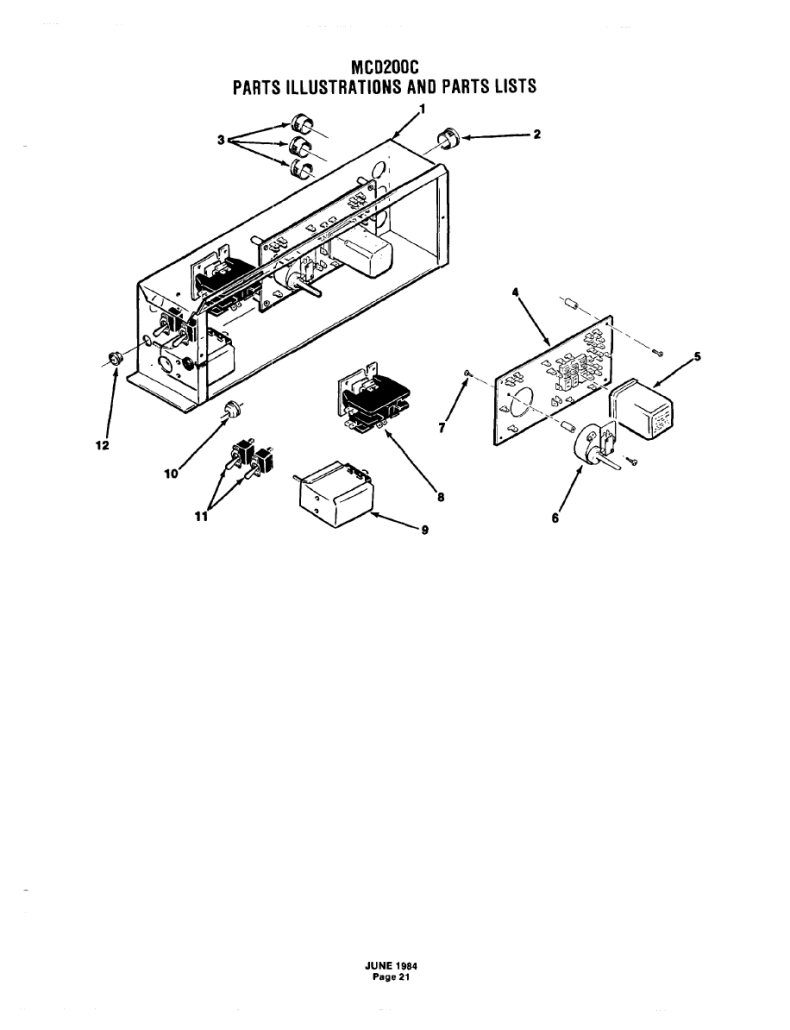

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1 No Number: Control Box
2		12-1213-10	BUSHING	Ships In 1-2 Days	$1.85
3		12-1213-10	BUSHING	Ships In 1-2 Days	$1.85
4		12-1912-01	Scotsman Circuit Board - 12-1912-01	Ships In 1-2 Days	$90.68
5		12-1879-02	Scotsman Relay - 12-1879-02	Ships In 1-2 Days	$56.91
6 NLA 12-1980-01
		03-1403-03	SCREW - 03-1403-03	Ships In 1-2 Days	$1.85
7		03-1403-03	SCREW - 03-1403-03	Ships In 1-2 Days	$1.85
8 NLA 12-2048-01
		03-1403-17	SCREW	Ships In 1-2 Days	$0.92
9 NLA 11-0389-02
NLA 11-0388-02
		03-1403-03	SCREW - 03-1403-03	Ships In 1-2 Days	$1.85
10		13-0557-00	GROMMET	Ships In 1-2 Days	$3.65
11		12-0426-01	TOGGLE SWITCH - OBSOLETE
12		12-1213-04	BUSHING	Ships In 1-2 Days	$0.92
