You Are Here: Home > Scottsman MDT4F12
Scottsman MDT4F12
Currently Viewing: MDT4F12 Cabinet  > Go Back To Other Parts Lists

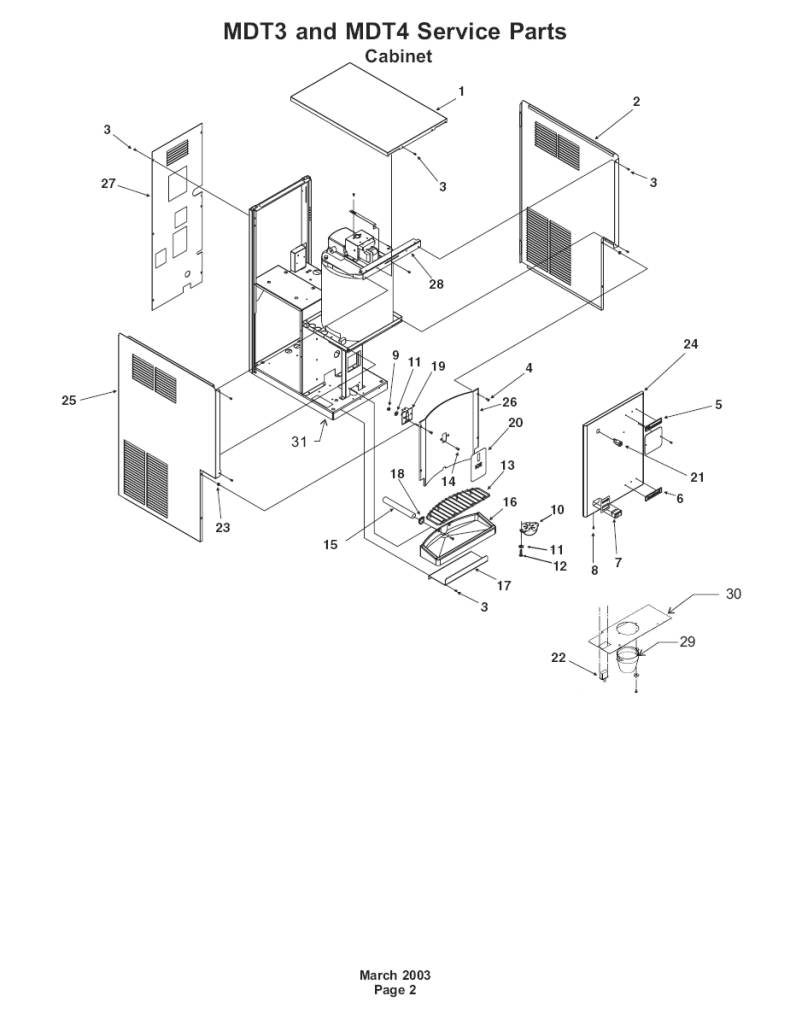

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A37767-001 PANEL TOP Ships In 1-2 Days $67.06
2   A37783-001 PANEL RIGHT SIDE Ships In 1-2 Days $172.28
3   03-1638-03 SCREW Ships In 1-2 Days $1.85
4   03-1419-17 SCREW Ships In 1-2 Days $1.85
5   15-0809-01 EMBLEM SCOTSMAN Ships In 1-2 Days $22.38
6   15-0803-01 EMBLEM - TOUCH FREE Ships In 1-2 Days $22.38
7   12-1377-00 SWITCH Ships In 1-2 Days $38.10
8   03-1403-15 SCREW Ships In 1-2 Days $1.85
9   03-1406-04 HEX NUTS Ships In 1-2 Days $0.92
10 02-3944-01 SPOUT Special Order - Ships In 3-4 Weeks $25.67
11   03-1407-03 TYPE A PLAIN WASHERS Ships In 1-2 Days $1.85
12 03-1403-19 SCREW Ships In 1-2 Days $1.85
13   02-3302-02 GRILL Ships In 1-2 Days $51.33
14   03-1418-30 FLAT HEAD SCREW Ships In 1-2 Days $0.92
15   13-0674-07 TUBING - PER FT. Ships In 1-2 Days $15.26
16 02-3402-32 SINK ONLY - GREY Ships In 1-2 Days $79.45
17   A35875-015 BRACKET SUPPORT GREY Ships In 1-2 Days $26.80
18   02-2814-10 HOSE CLAMP Ships In 1-2 Days $10.68
19   12-2551-20 SENSOR TOUCH FREE Ships In 1-2 Days $270.45
20 17-2830-01 LABEL - ICE Ships In 1-2 Days $22.64
21   12-2391-01 SWITCH Ships In 1-2 Days $35.88
22   12-2501-01 SWITCH (TOUCH FREE) Ships In 1-2 Days $51.64
23   03-3804-01 CATCH - SCREW Ships In 1-2 Days $4.21
24 A37766-021 PANEL FRONT Special Order - Ships In 3-4 Weeks $97.96
  A37766-002 PANEL FRONT GOVT Ships In 1-2 Days $94.76
25   A37784-001 PANEL LEFT SIDE Ships In 1-2 Days $172.28
26   02-3878-31 PANEL SPLASH Ships In 1-2 Days $89.95
27   A37875-001 PANEL BACK Ships In 1-2 Days $60.21
28   A37873-001 BRACKET Ships In 1-2 Days $22.38
29 02-3944-01 SPOUT Special Order - Ships In 3-4 Weeks $25.67
30   A36547-001 SPOUT COVER Ships In 1-2 Days $36.52
31   13-0566-01 MOULDING - GREY Ships In 1-2 Days $48.11
