Scottsman MDT4F12
Currently Viewing: MDT4F12 Condensing Components  > Go Back To Other Parts Lists

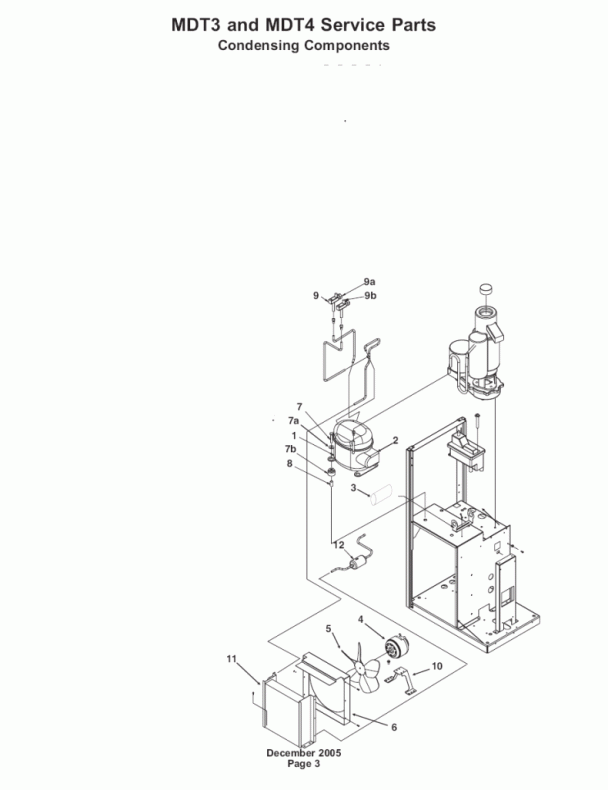

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 60hz   18-8741-21 COMPRESSOR
50hz   18-8741-26 COMPRESSOR
2 60hz   18-8741-27 OVERLOAD Ships In 1-2 Days $42.01
50hz   18-8741-22 OVERLOAD Ships In 1-2 Days $42.01
60hz 18-8741-28 Relay - Replaces by 18-8831-28 Ships In 1-2 Days $42.01
50hz   18-8741-23 RELAY Ships In 1-2 Days $42.01
3 60hz   18-8741-29 CAPACITOR Ships In 1-2 Days $101.31
50hz   18-8741-24 CAPACITOR Ships In 1-2 Days $90.66
4 60hz   18-8849-01 MOTOR Ships In 1-2 Days $181.56
50hz   18-7200-03 FAN MOTOR Ships In 1-2 Days $274.13
5 60hz   18-8858-01 BLADE - FAN Ships In 1-2 Days $31.02
50hz   18-8743-01 FAN BLADE Ships In 1-2 Days $31.02
6 60hz   A37839-001 SHROUD - FAN Ships In 1-2 Days $38.64
50hz   A36094-001 SHROUD Ships In 1-2 Days $43.54
7 NLA 03-1405-40
7a   03-1407-02 TYPE A PLAIN WASHERS Special Order - -Ships in 3-4 Weeks $1.85
7b   18-4700-28 MOUNTING GROMMET Ships In 1-2 Days $5.22
8   18-0108-41 SLEEVE Ships In 1-2 Days $7.26
9   16-0832-21 PROCESS VALVE & CAPS Ships In 1-2 Days $45.44
9a   16-0832-03 VALVE CORE CAP Ships In 1-2 Days $12.43
9b   16-0832-02 VALVE SET SCREW CAP Ships In 1-2 Days $10.34
10   18-0422-00 BRACKET FAN Ships In 1-2 Days $19.09
11   18-8846-01 CONDENSER A/C Special Order - Ships In 3-4 Weeks $180.61
12   02-3319-01 DRIER Ships In 1-2 Days $43.27
