Scottsman MDT4F12
Currently Viewing: MDT4F12 Water and Drain System  > Go Back To Other Parts Lists

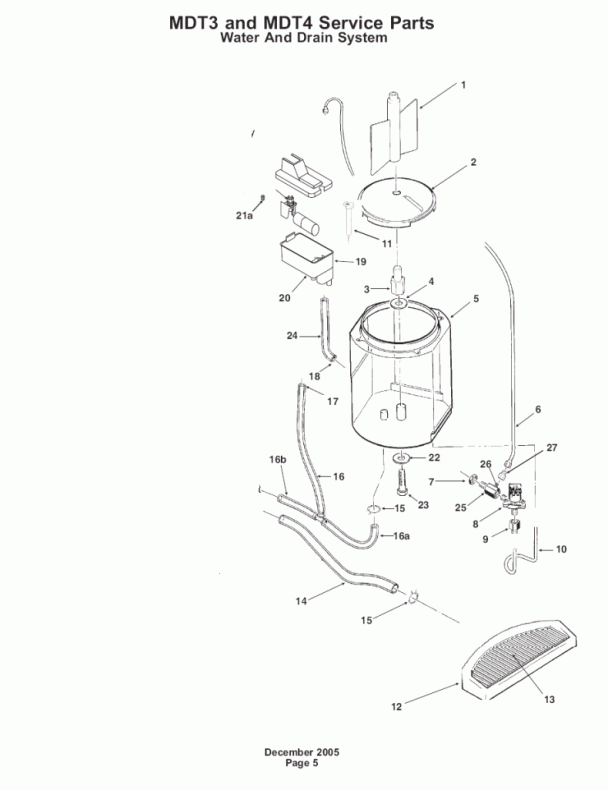

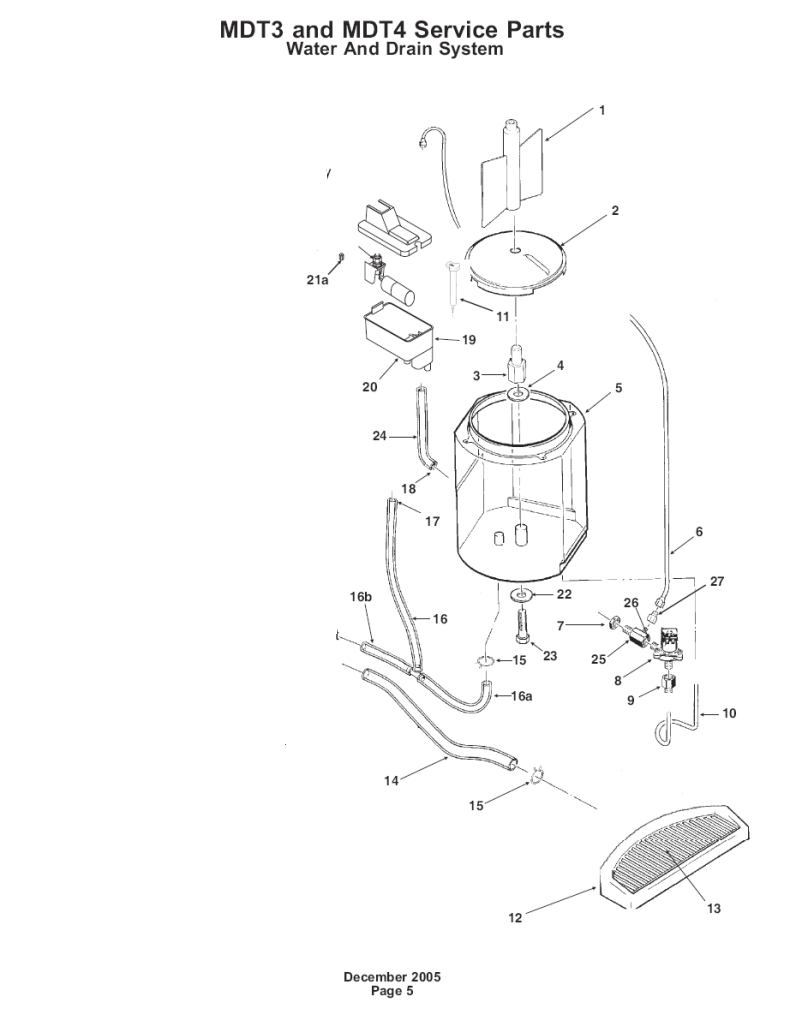

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A37893-001 VANE Ships In 1-2 Days $232.90
2   A38272-001 BOTTOM BIN Ships In 1-2 Days $168.23
3   02-3033-01 HUB Ships In 1-2 Days $51.28
4   03-1409-22 NON-METALIC WASHERS Ships In 1-2 Days $16.02
5   A36118-020 STORAGE BIN Ships In 1-2 Days $396.65
6   13-0895-01 HOSE - PER FT. Ships In 1-2 Days $1.84
7   03-1394-00 NUT Ships In 1-2 Days $3.10
8   12-1434-04 VALVE-INLET Ships In 1-2 Days $91.15
  12-1434-05 VALVE-INLET Ships In 1-2 Days $103.50
9   16-0869-01 ADAPTER Ships In 1-2 Days $18.02
10 NLA 02-4200-01
11   A33101-022 Scotsman Thermo Probe Service - A33101-022 Ships In 1-2 Days $85.95
12 02-3402-32 SINK ONLY - GREY Ships In 1-2 Days $79.45
13   02-3302-02 GRILL Ships In 1-2 Days $51.33
14   13-0674-07 TUBING - PER FT. Ships In 1-2 Days $15.26
15   02-2814-10 HOSE CLAMP Ships In 1-2 Days $10.68
16 Order 1 ft   13-0674-09 TUBING - PER FT. Ships In 1-2 Days $11.93
16a Bin Drain, 11" (Order 1 ft)   13-0674-09 TUBING - PER FT. Ships In 1-2 Days $11.93
16b Bin Drain, 9" (Order 1 ft)   13-0674-09 TUBING - PER FT. Ships In 1-2 Days $11.93
17   02-2814-08 Scotsman Hose Clamp - 02-2814-08 Ships In 1-2 Days $7.84
18   02-2814-07 HOSE CLAMP Ships In 1-2 Days $10.60
19   02-3371-20 RESERVOIR Ships In 1-2 Days $123.89
20   A36402-001 BRACKET Ships In 1-2 Days $32.47
21   02-3371-21 FLOAT & ARM Ships In 1-2 Days $63.59
21a 02-3266-03 Scotsman Plunger - 02-3266-03 Ships In 1-2 Days $13.12
22   03-1407-05 TYPE A PLAIN WASHERS Ships In 1-2 Days $0.92
23   03-1645-01 SCREW Ships In 1-2 Days $0.92
24   13-0674-06 TUBING - PER FT. Ships In 1-2 Days $8.63
25   A21433-000 INLET FITTING Ships In 1-2 Days $51.82
26   16-0870-01 FITTING Ships In 1-2 Days $19.75
27   16-0871-01 BRASS INSERT Ships In 3-4 Weeks $5.81
