Scottsman MDT4F12

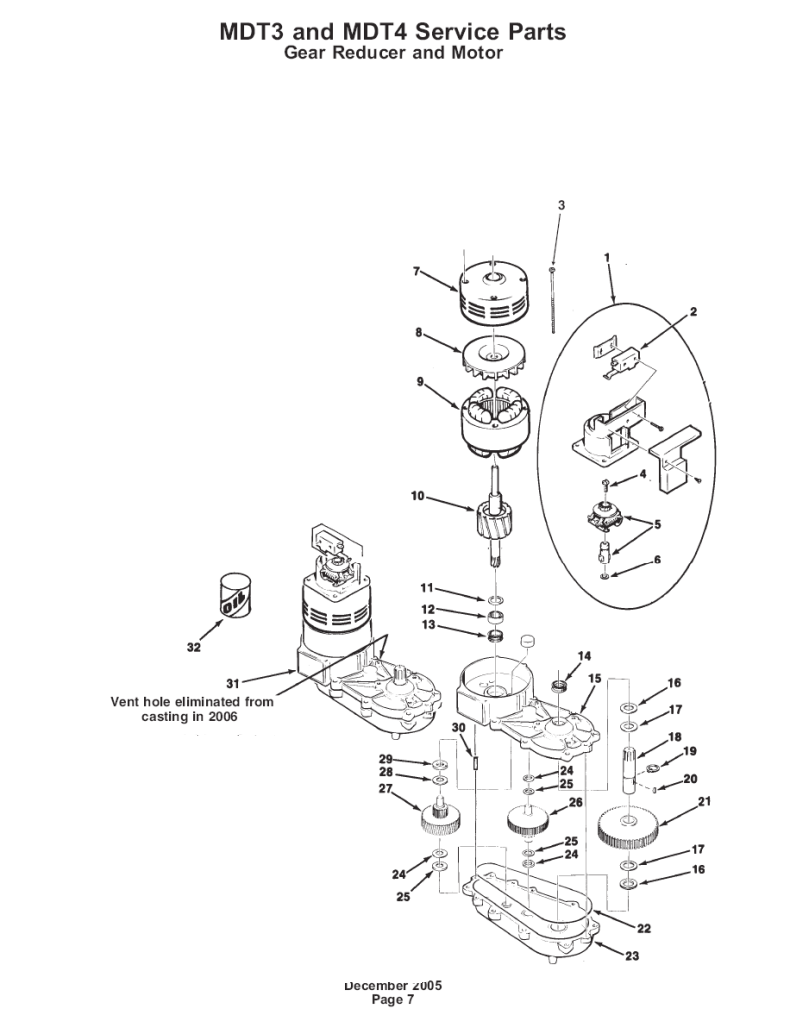

Currently Viewing: MDT4F12 Gear Reducer and Motor  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A27494-001 SWITCH KIT Ships In 1-2 Days $141.22
2   12-2059-01 SWITCH-LIMIT Ships In 1-2 Days $52.48
3 No Number: Motor Bolt
4   03-1403-77 SCREW Ships In 1-2 Days $9.27
5   A30579-001 ACTUATOR Ships In 1-2 Days $88.37
6   03-1408-36 SPECIAL WASHERS Ships In 1-2 Days $1.85
7   A38487-001 KIT MOTOR HOUSING AS Ships In 1-2 Days $166.64
8   A28168-001 FAN Ships In 1-2 Days $37.73
9 A37707-021 MOTOR KIT 1/10 HP Ships In 1-2 Days $439.95
  A38501-001 MOTOR KIT - 230 V Special Order - Ships In 3-4 Weeks $676.56
10 No Number: part of item 9
11   03-1408-08 SPECIAL WASHERS Special Order - Ships In 3-4 Weeks $4.96
12   02-1501-00 BEARING Ships In 1-2 Days $34.22
13 02-3969-20 OIL SEAL Ships In 1-2 Days $26.55
14 02-1503-00 GREASE SEAL Ships In 1-2 Days $10.36
15   A28165-021 GEAR CASE COVER- OBSOLETE NO REPLACEMENT
16 03-1408-21 SPECIAL WASHERS Ships In 1-2 Days $7.00
17 03-1408-04 SPECIAL WASHERS Ships In 1-2 Days $2.42
18   02-2445-01 SHAFT-DRIVE MTR Ships In 1-2 Days $47.87
19   03-1515-03 RETAINING RING Ships In 1-2 Days $3.42
20   03-1602-01 WOODRUFF KEY Ships In 1-2 Days $8.00
21   02-2444-01 OUTPUT GEAR Ships In 1-2 Days $122.60
22 02-1505-00 O RING Ships In 1-2 Days $19.58
23 A28166-001 Scotsman Gear Case - A28166-001 Ships In 1-2 Days $160.66
24 03-1408-39 SPECIAL WASHERS Ships In 1-2 Days $9.46
25 03-1408-40 SPECIAL WASHERS Special Order - Ships In 3-4 Weeks $4.33
26 02-2439-01 2ND GEAR 3RD PINION Ships In 1-2 Days $85.36
27 02-2438-01 Scotsman 1st Gear and 2nd Pinion - 02-2438-01 Ships In 1-2 Days $81.56
28 03-1408-38 SPECIAL WASHERS Ships In 1-2 Days $2.72
29 03-1408-41 SPECIAL WASHERS Ships In 1-2 Days $1.85
30   03-0774-11 PIN SPRING Ships In 1-2 Days $2.95
31   02-4399-21 Scotsman 60HZ Gear Reduce W/Motor Ships In 1-2 Days $1,207.14
  A36549-006 REDUCER 230/50/1 Ships In 1-2 Days $1,488.58
32 A32379-027 Scotsman Gear Reducer Lubricant Ships In 1-2 Days $28.95
