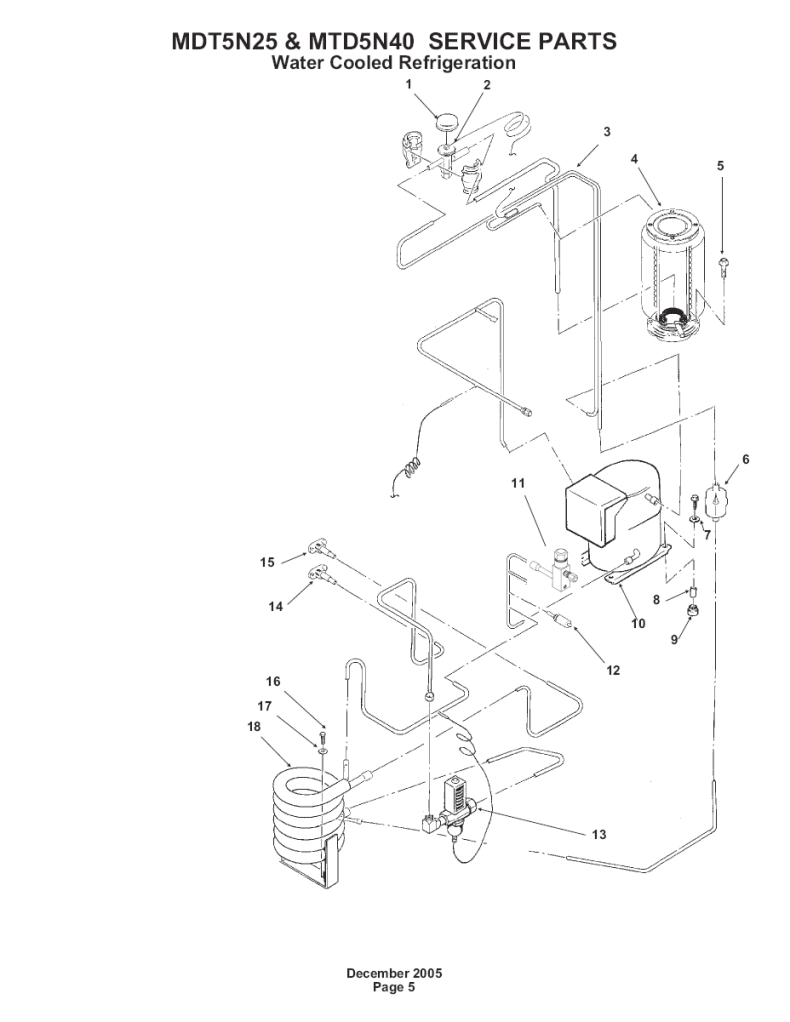

Scottsman MDT5N40 Parts Diagram
Currently Viewing: MDT5N40 Water Cooled Refrigeration  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   02-3792-01 INSULATION Special Order - Ships In 3-4 Weeks $26.21
2   11-0488-21 THERMO EXP VALVE Ships In 1-2 Days $249.14
3   A37917-001 SUCTION LINE Ships In 1-2 Days $88.48
  A37919-001 SUCTION LINE Ships In 1-2 Days $96.75
4   A33194-020 EVAPORATOR Ships In 1-2 Days $1,021.17
5   03-1405-41 HEX CAP SCREW Ships In 1-2 Days $5.46
6   02-3319-02 DRIER Ships In 1-2 Days $34.34
7   03-1406-10 HEX NUTS Ships In 1-2 Days $0.92
8   18-2200-27 MOUNTING SLEEVE Ships In 1-2 Days $5.81
9   18-2200-28 MOUNTING GROMMET Ships In 1-2 Days $7.26
10 115v 60hz   18-8720-21 COMPRESSOR
115v   18-5700-50 OVERLOAD Ships In 1-2 Days $55.14
230v 50hz   18-8720-26 COMPRESSOR
230v   18-5700-55 OVERLOAD -Obsolete
11   16-0832-20 PROCESS VALVE KIT Ships In 1-2 Days $45.77
12   11-0485-22 PRESSURE CONTROL MAN Ships In 1-2 Days $119.75
13   11-0478-01 WATER REG. VALVE Ships In 1-2 Days $204.93
14   A31828-002 ADAPTOR-FLANGED - OBSOLETE
15   A31828-001 ADAPTER-FLANGED - OBSOLETE
16   03-1405-17 HEX CAP SCREWS Ships In 1-2 Days $1.85
17   03-1410-03 HELICAL SPRING LOCKW Ships In 1-2 Days $1.85
18   18-3305-25 CONDENSER W/C Ships In 1-2 Days $359.89
  18-8871-21 CONDENSER W/C CUPRO- Special Order - Ships In 3-4 Weeks $321.95
