Scottsman MDT5N40 Parts Diagram

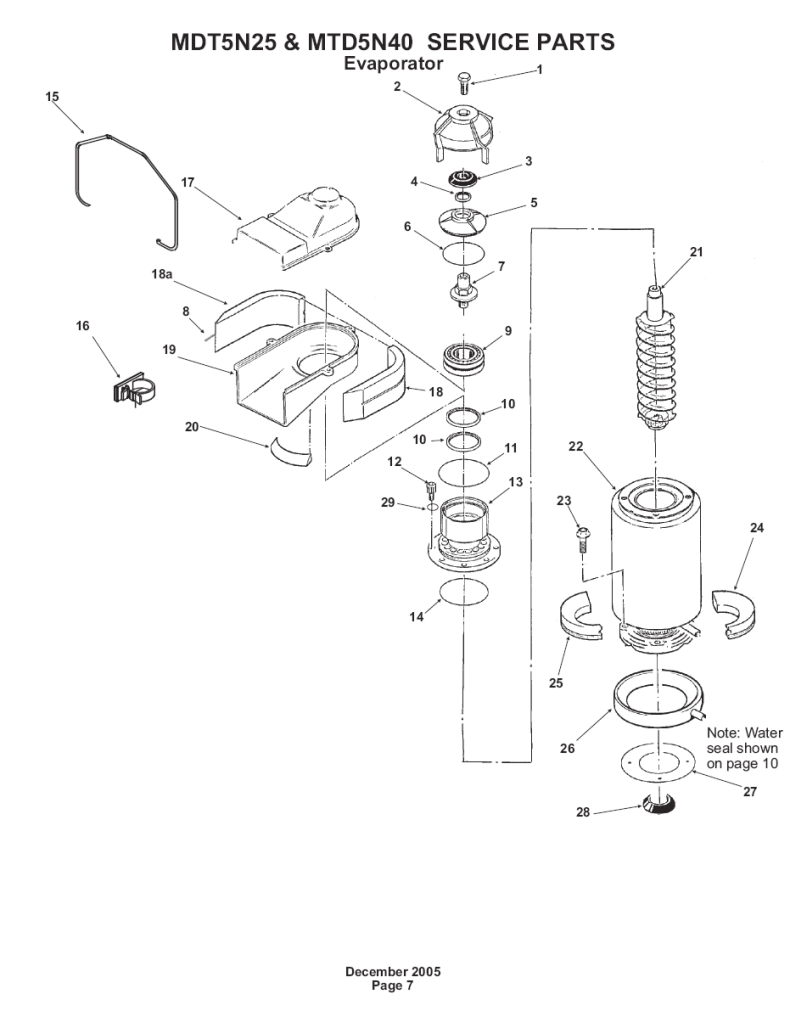

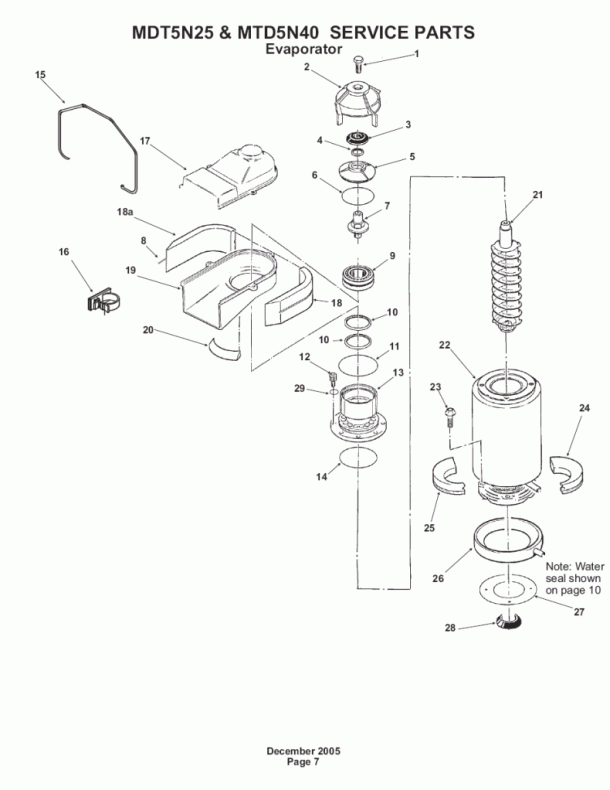

Currently Viewing: MDT5N40 Evaporator  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   03-1405-52 HEX CAP SCREW Ships In 1-2 Days $10.46
2 02-3001-01 ICE SWEEP Ships In 1-2 Days $42.02
3   13-0871-01 WATER SHED Ships In 1-2 Days $26.71
4 02-2978-01 LIP SEAL Ships In 1-2 Days $31.84
5   02-3128-20 COVER Ships In 1-2 Days $45.88
6   13-0617-54 0-RING Ships In 1-2 Days $8.83
7   08-0660-01 AUGER STUD Ships In 1-2 Days $91.38
8   A35419-020 STRAP KIT Ships In 1-2 Days $32.52
9   A34559-020 BEARING-SERVICE Ships In 1-2 Days $180.03
10 02-2977-01 LIP SEAL Ships In 1-2 Days $41.88
11   13-0617-52 O-RING Ships In 1-2 Days $16.79
12 03-1544-08 SCREW Ships In 1-2 Days $12.67
13   A32900-020 BREAKER Ships In 1-2 Days $692.21
14   13-0617-45 O-RING Ships In 1-2 Days $8.15
15   A34969-001 BAIL/CLAMP Ships In 1-2 Days $28.82
16   02-3268-01 HOSE CLIP Ships In 1-2 Days $14.54
17   02-2930-04 ICE CHUTE COVER Ships In 1-2 Days $35.83
18   A32963-001 INSULATION TOP HALF Ships In 1-2 Days $23.29
18a   A32963-002 INSULATION TOP-HALF Ships In 1-2 Days $23.87
19   02-2943-01 SPOUT Ships In 1-2 Days $41.13
20   A33102-001 INSULATION COLLAR IN Ships In 1-2 Days $18.11
21   A38071-021 AUGER - 12 INCH LONG Ships In 1-2 Days $526.23
22   A33194-020 EVAPORATOR Ships In 1-2 Days $1,021.17
23   03-1405-41 HEX CAP SCREW Ships In 1-2 Days $5.46
24   A32962-001 INSULATION - REPLACED BY 02-4358-01
25   02-4358-01 INSULATION 02-4358-01 Ships In 1-2 Days $8.95
26   02-3837-01 DRIP PAN - PLASTIC Ships In 1-2 Days $28.01
27 13-0704-00 GASKET Ships In 1-2 Days $9.79
28   02-4663-01 WATER SHED Ships In 1-2 Days $33.78
29   03-1408-26 SPECIAL WASHER - OBSOLETE, NO REPLACEMENT
