Scottsman MDT5N40 Parts Diagram
Currently Viewing: MDT5N40 Control Box  > Go Back To Other Parts Lists

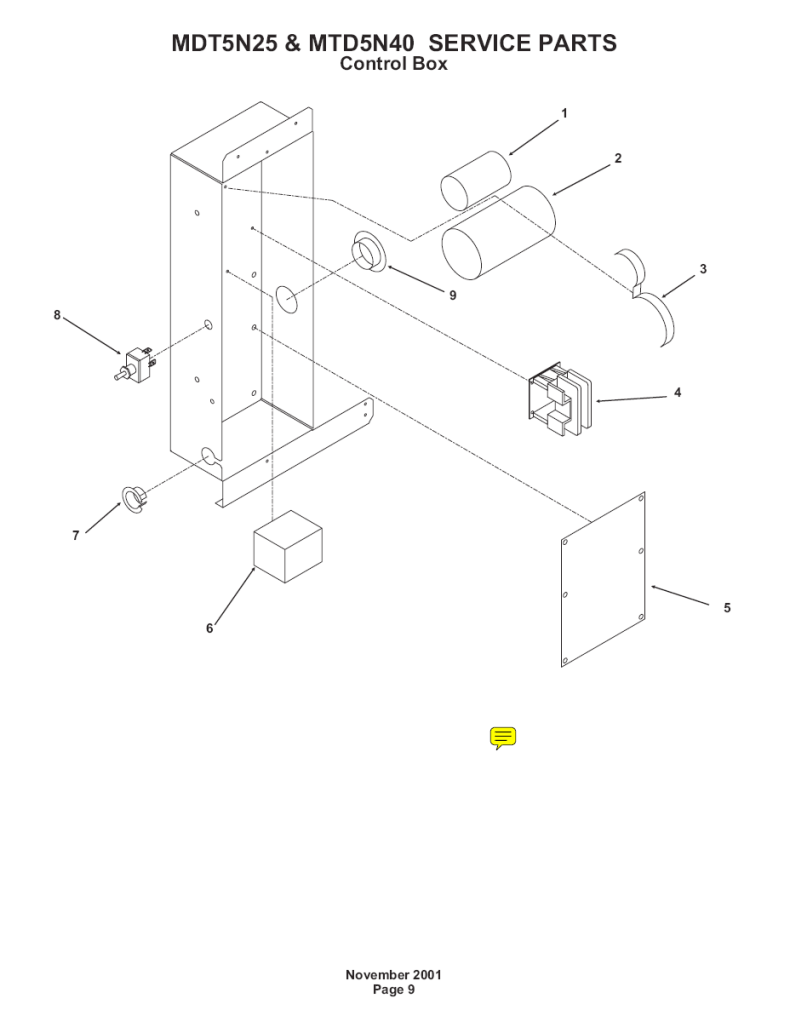

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 115v 60hz   18-1902-68 RUN CAPACITOR Ships In 1-2 Days $60.42
2 115v 60hz   18-1901-49 START CAPACITOR Ships In 1-2 Days $72.16
230v 50hz   18-2200-35 CAPACITOR Ships In 1-2 Days $57.78
  18-2200-38 CAPACITOR CAP Special Order - -Ships in 3-4 Weeks $11.93
3   A36141-001 CAPACITOR STRAP Ships In 1-2 Days $9.37
4 115v 60hz 12-2469-03 Scotsman Contactor - 12-2469-03 Ships In 1-2 Days $73.02
230v 50hz   12-2469-02 CONTACTOR Ships In 1-2 Days $75.89
5 12-2843-21 Scotsman Circuit Board MDT/TDE 115/60 - 12-2843-21 Ships In 1-2 Days $604.00
  12-2843-26 CIRCUIT BOARD 220/50 Ships In 1-2 Days $1,176.73
5a   12-2499-01 STAND OFF Ships In 1-2 Days $5.38
6 115v 60hz   18-1903-44 RELAY Ships In 1-2 Days $101.39
230v 50hz   18-1903-54 RELAY Ships In 1-2 Days $77.37
7   12-1213-10 BUSHING Ships In 1-2 Days $1.85
8   12-0426-01 TOGGLE SWITCH - OBSOLETE
9   12-1213-12 BUSHING Special Order - Ships In 3-4 Weeks $3.42
10   A36146-001 CONTROL BOX COVER Ships In 1-2 Days $32.79
