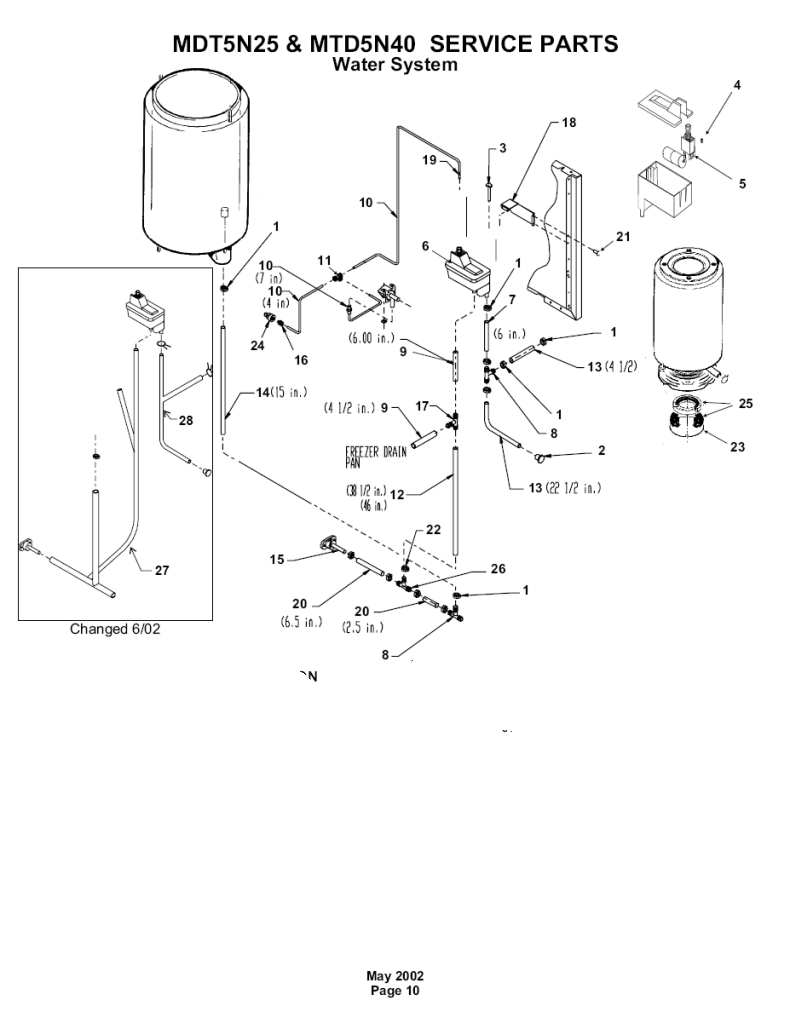

Scottsman MDT5N40 Parts Diagram
Currently Viewing: MDT5N40 Water System  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   02-2814-08 Scotsman Hose Clamp - 02-2814-08 Ships In 1-2 Days $7.84
2   13-0840-01 RUBBER PLUG Special Order - Ships In 3-4 Weeks $2.96
3   A33101-022 Scotsman Thermo Probe Service - A33101-022 Ships In 1-2 Days $85.95
4 02-3266-03 Scotsman Plunger - 02-3266-03 Ships In 1-2 Days $13.12
5 02-3266-02 Scotsman Valve - 02-3266-02 Ships In 1-2 Days $73.15
6 02-3266-20 Scotsman Reservoir - 02-3266-20 Ships In 1-2 Days $120.16
7   13-0674-06 TUBING - PER FT. Ships In 1-2 Days $8.63
8   16-0670-01 Scotsman Tee - 16-0670-01 Ships In 1-2 Days $7.84
9   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
10   13-0895-01 HOSE - PER FT. Ships In 1-2 Days $1.84
11   16-1040-01 TEE Ships In 1-2 Days $25.26
12 46"   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
13   13-0674-06 TUBING - PER FT. Ships In 1-2 Days $8.63
14   13-0079-01 Scotsman Tubing (Per Foot) - 13-0079-01 Ships In 1-2 Days $14.96
15 02-3692-21 SCOTSMAN DRAIN ADAPTER Ships In 1-2 Days $30.51
16   16-1039-01 CONNECTOR MALE Ships In 1-2 Days $25.68
17   16-0670-02 TEE Ships In 1-2 Days $11.72
18   A37804-001 BRACKET Ships In 1-2 Days $25.76
19   16-0871-01 BRASS INSERT Ships In 3-4 Weeks $5.81
20 NLA 13-0679-01
21   03-1531-01 SCREW Ships In 1-2 Days $1.85
22   02-2814-07 HOSE CLAMP Ships In 1-2 Days $10.60
23 A32777-001 RING Ships In 1-2 Days $25.83
24   16-0835-01 FITTING Ships In 1-2 Days $43.36
25 02-0929-23 Scotsman Water Seal - 02-0929-23 Ships In 1-2 Days $108.36
26   16-0670-04 TEE Ships In 1-2 Days $11.72
27   A38259-001 HOSE DRAIN Ships In 1-2 Days $45.22
28   A38260-001 HOSE - RESERVOIR Ships In 1-2 Days $39.02
