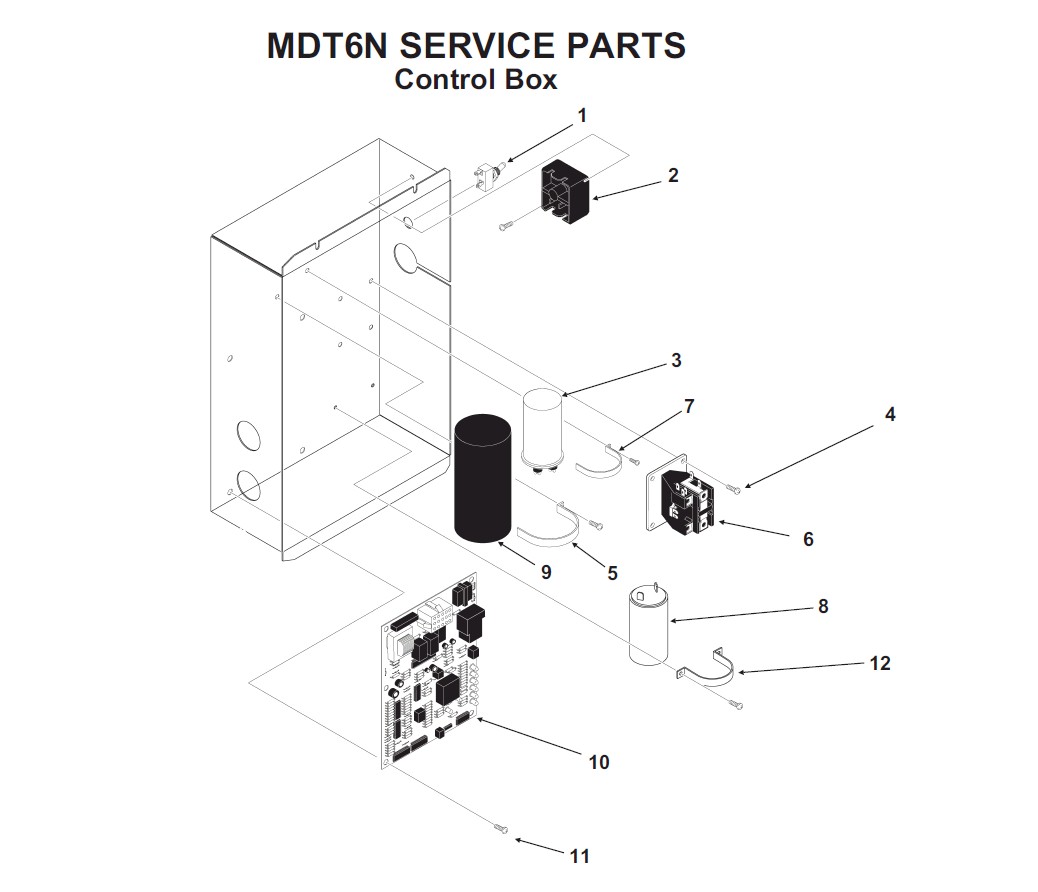

Scottsman MDT6N90 Parts Diagram
Currently Viewing: MDT6N90 Control Box  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)...Toggle switch   12-0426-02 SWITCH Ships In 1-2 Days $29.64
2)...Potential Relay, A- H series   18-1903-50 RELAY Ships In 1-2 Days $82.89
Start relay, J series   18-1903-44 RELAY Ships In 1-2 Days $101.39
3)...Run capacitor for compressor, A- H series   18-1902-45 RUN CAPACITOR Ships In 1-2 Days $65.22
Run capacitor for compressor, J series
4)...Screw   03-1531-01 SCREW Ships In 1-2 Days $1.85
5)...Capacitor bracket   A35971-001 STRAP Ships In 1-2 Days $6.18
6)...Contactor 115v 12-2469-03 Scotsman Contactor - 12-2469-03 Ships In 1-2 Days $73.02
7)...Capacitor bracket
8)...Run capacitor-bin drive motor   18-3701-01 CAPACITOR Special Order - Ships In 3-4 Weeks $56.89
9)...Start capacitor, A-H series   18-1901-03 START CAPACITOR Ships In 1-2 Days $50.75
Start capacitor, J series
10)...Circuit board 12-2843-21 Scotsman Circuit Board MDT/TDE 115/60 - 12-2843-21 Ships In 1-2 Days $604.00
11)...Standoff
12)...Control box cover - not shown   A34528-015 COVER CONTROL BOX - OBSOLETE, NO REPLACEMENT
