Scottsman MF400
Currently Viewing: MF400 Gearmotor  > Go Back To Other Parts Lists

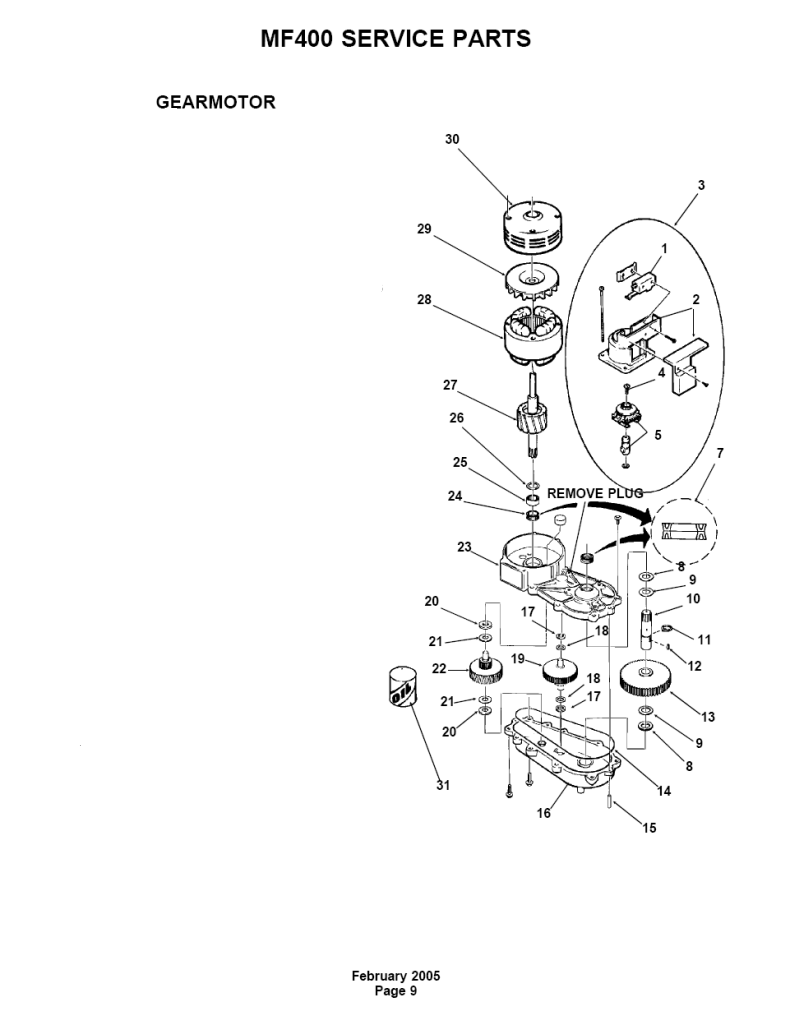

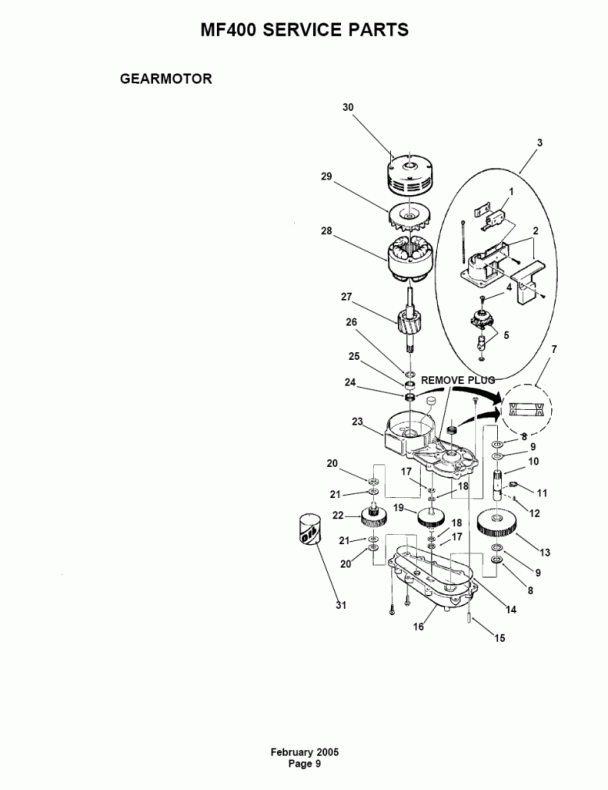

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   12-2059-01 SWITCH-LIMIT Ships In 1-2 Days $52.48
2 NLA a27895-001
3   A27494-001 SWITCH KIT Ships In 1-2 Days $141.22
4   03-1403-77 SCREW Ships In 1-2 Days $9.27
5   A30579-001 ACTUATOR Ships In 1-2 Days $88.37
6   03-1408-36 SPECIAL WASHERS Ships In 1-2 Days $1.85
7 02-1503-00 GREASE SEAL Ships In 1-2 Days $10.36
NLA 13-0841-01
8 03-1408-21 SPECIAL WASHERS Ships In 1-2 Days $7.00
9 03-1408-04 SPECIAL WASHERS Ships In 1-2 Days $2.42
10   02-2445-01 SHAFT-DRIVE MTR Ships In 1-2 Days $47.87
11   03-1515-03 RETAINING RING Ships In 1-2 Days $3.42
12   03-1602-01 WOODRUFF KEY Ships In 1-2 Days $8.00
13   02-2444-01 OUTPUT GEAR Ships In 1-2 Days $122.60
14 02-1505-00 O RING Ships In 1-2 Days $19.58
15   03-0774-11 PIN SPRING Ships In 1-2 Days $2.95
16 A28166-001 Scotsman Gear Case - A28166-001 Ships In 1-2 Days $160.66
17 03-1408-39 SPECIAL WASHERS Ships In 1-2 Days $9.46
18 03-1408-40 SPECIAL WASHERS Special Order - Ships In 3-4 Weeks $4.33
19 02-2439-01 2ND GEAR 3RD PINION Ships In 1-2 Days $85.36
20 03-1408-41 SPECIAL WASHERS Ships In 1-2 Days $1.85
21 03-1408-38 SPECIAL WASHERS Ships In 1-2 Days $2.72
22 02-2438-01 Scotsman 1st Gear and 2nd Pinion - 02-2438-01 Ships In 1-2 Days $81.56
23   A28165-021 GEAR CASE COVER- OBSOLETE NO REPLACEMENT
24 02-3969-20 OIL SEAL Ships In 1-2 Days $26.55
25   02-1501-00 BEARING Ships In 1-2 Days $34.22
26   03-1408-08 SPECIAL WASHERS Special Order - Ships In 3-4 Weeks $4.96
27 A37707-021 MOTOR KIT 1/10 HP Ships In 1-2 Days $439.95
28 No Number: part of item 27
29   A28168-001 FAN Ships In 1-2 Days $37.73
30   A38501-001 MOTOR KIT - 230 V Special Order - Ships In 3-4 Weeks $676.56
31 A32379-027 Scotsman Gear Reducer Lubricant Ships In 1-2 Days $28.95
32   02-4399-21 Scotsman 60HZ Gear Reduce W/Motor Ships In 1-2 Days $1,207.14
33   02-4398-21 Gear Reducer, No Motor Ships In 1-2 Days $896.61
