Scottsman MFE400
Currently Viewing: MFE400 Cabinet  > Go Back To Other Parts Lists

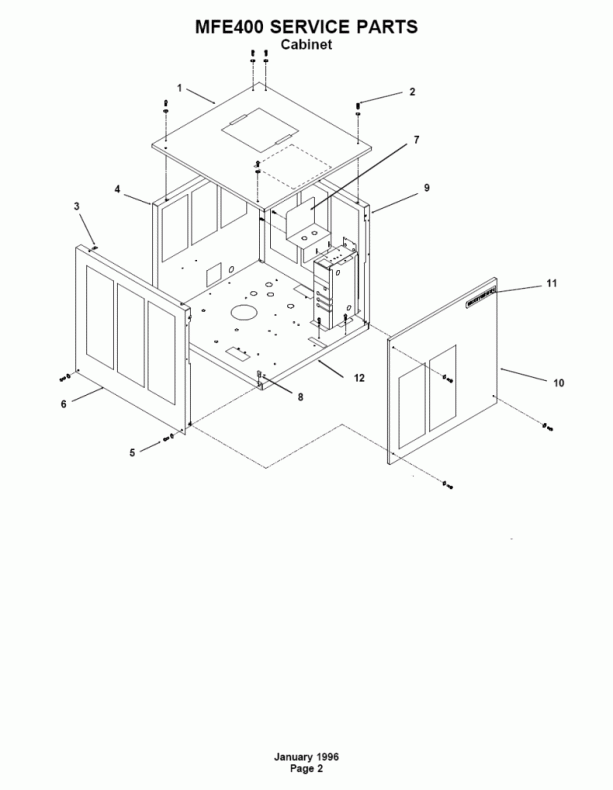

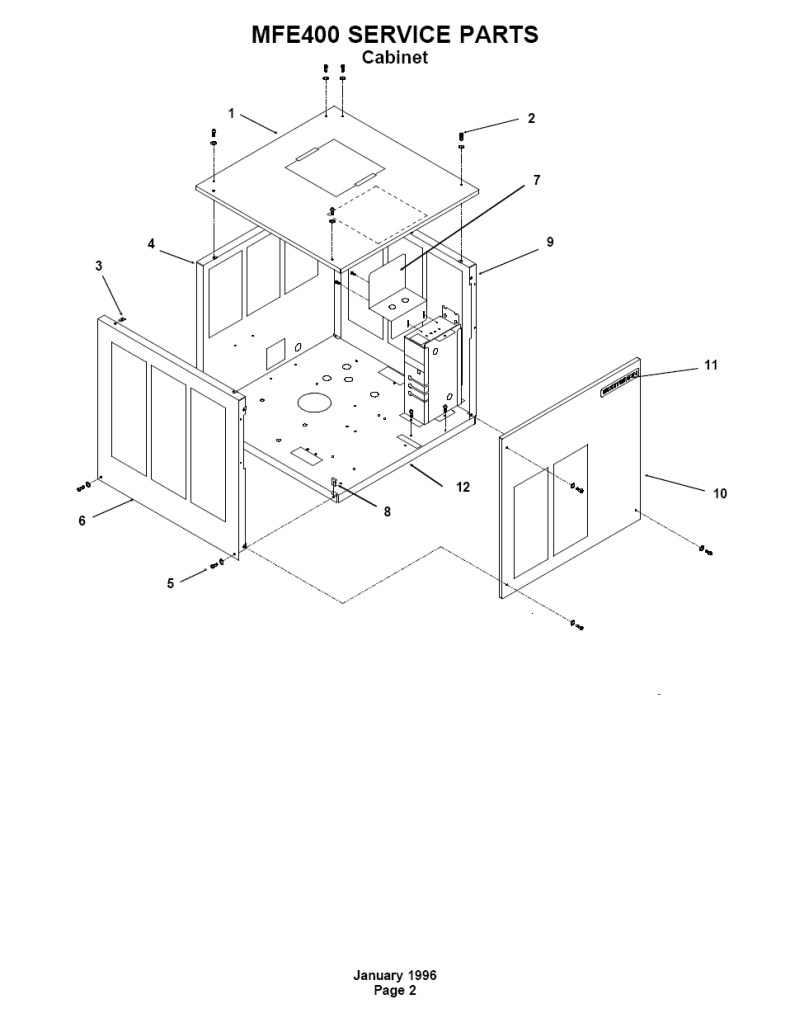

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 NLA a26625-005
NLA a26625-015
  A26625-006 TOP PANEL Ships In 1-2 Days $126.77
2   03-1419-09 SCREW Ships In 1-2 Days $1.85
3   03-1423-06 SPEED NUT Ships In 1-2 Days $2.84
4 NLA a28048-004
NLA a28048-015
  A28048-005 PANEL-REAR Ships In 1-2 Days $230.52
5   03-1404-09 SCREW Ships In 1-2 Days $0.92
6 NLA a26623-005
NLA a26623-015
  A26623-006 PANEL LT. SIDE Ships In 1-2 Days $194.79
7   A36077-001 RESERVOIR BRACKET Ships In 1-2 Days $32.36
8   03-1507-00 SPEED NUT Ships In 1-2 Days $4.33
9 NLA a26624-005
NLA a26624-015
  A26624-006 PANEL RT. SIDE Ships In 1-2 Days $144.60
10   A36441-001 PANEL FRONT - OBSOLETE, NO REPLACEMENT
NLA a36441-015
  A36441-002 PANEL FRONT Ships In 1-2 Days $266.10
11   15-0718-01 EMBLEM SCOTSMAN - OBSOLETE, NO REPLACEMENT
  15-0718-02 SCOTSMAN EMBLEM - obsolete
  03-0271-00 NUT - OBSOLETE, NO REPLACEMENT
12   A36072-001 BASE Ships In 1-2 Days $256.95
