Scottsman MFE400

Currently Viewing: MFE400 Water System and Misc. Refrigeration > Go Back To Other Parts Lists

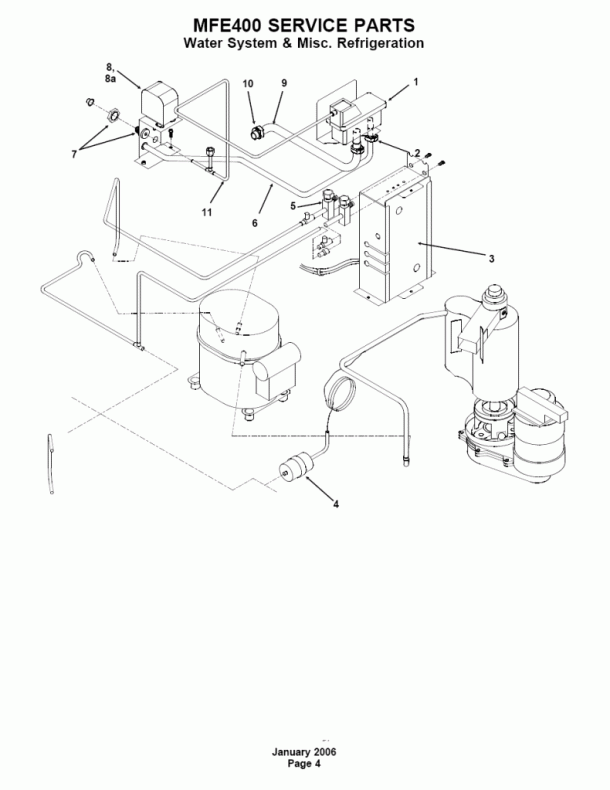

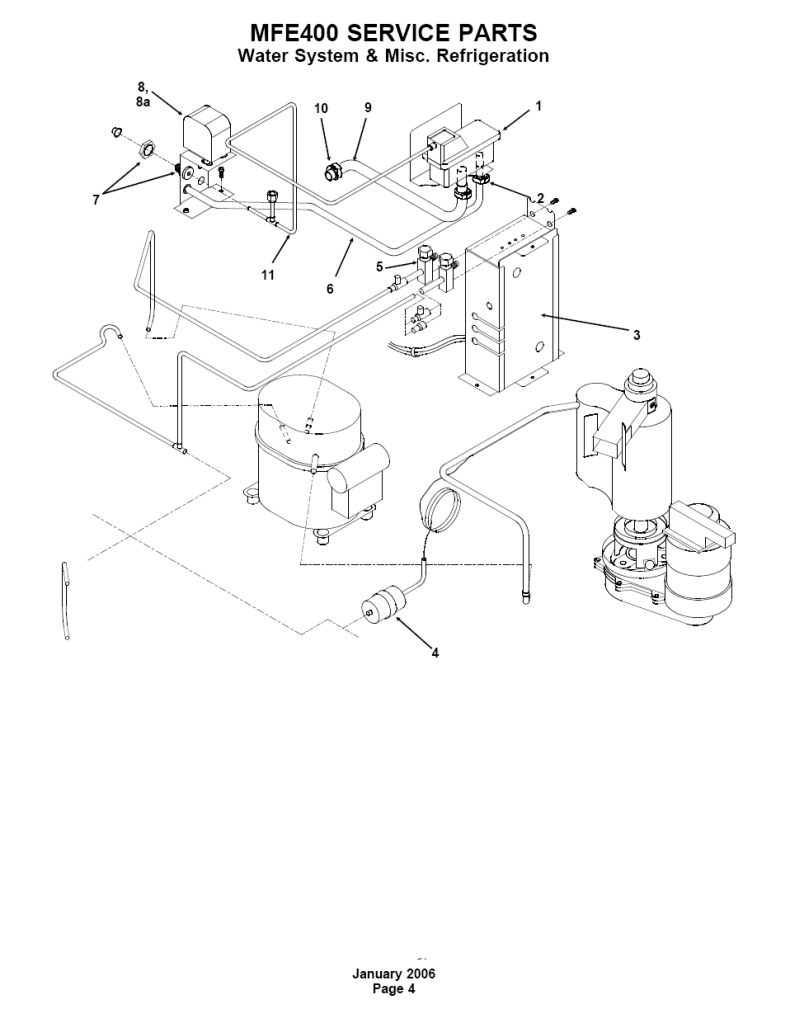

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
1		02-2217-01	Scotsman Reservoir - 02-2217-01	Ships In 1-2 Days	$99.44
1a		02-2217-02	Scotsman Float & Valve - 02-2217-02	Ships In 1-2 Days	$63.59
2		02-0535-01	CLAMP - OBSOLETE, NO REPLACEMENT
3		A36065-001	CONTROL BOX COVER	Ships In 1-2 Days	$32.47
4		02-3319-01	DRIER	Ships In 1-2 Days	$43.27
5		16-0832-20	PROCESS VALVE KIT	Ships In 1-2 Days	$45.77
5a		16-0832-02	VALVE SET SCREW CAP	Ships In 1-2 Days	$10.34
5b		16-0832-03	VALVE CORE CAP	Ships In 1-2 Days	$12.43
6		13-0079-03	RUBBER TUBING	Ships In 1-2 Days	$6.80
7		16-0835-01	FITTING	Ships In 1-2 Days	$43.36
		03-1394-00	NUT	Ships In 1-2 Days	$3.10
8		11-0296-00	PRESSURE CONTROL	Ships In 1-2 Days	$133.58
		16-1046-01	CONNECTOR FEMALE	Ships In 1-2 Days	$23.84
9		13-0674-09	TUBING - PER FT.	Ships In 1-2 Days	$11.93
10 NLA 02-0179-03
11		13-0895-01	HOSE - PER FT.	Ships In 1-2 Days	$1.84
