Scottsman MFE400
Currently Viewing: MFE400 Evaporator  > Go Back To Other Parts Lists

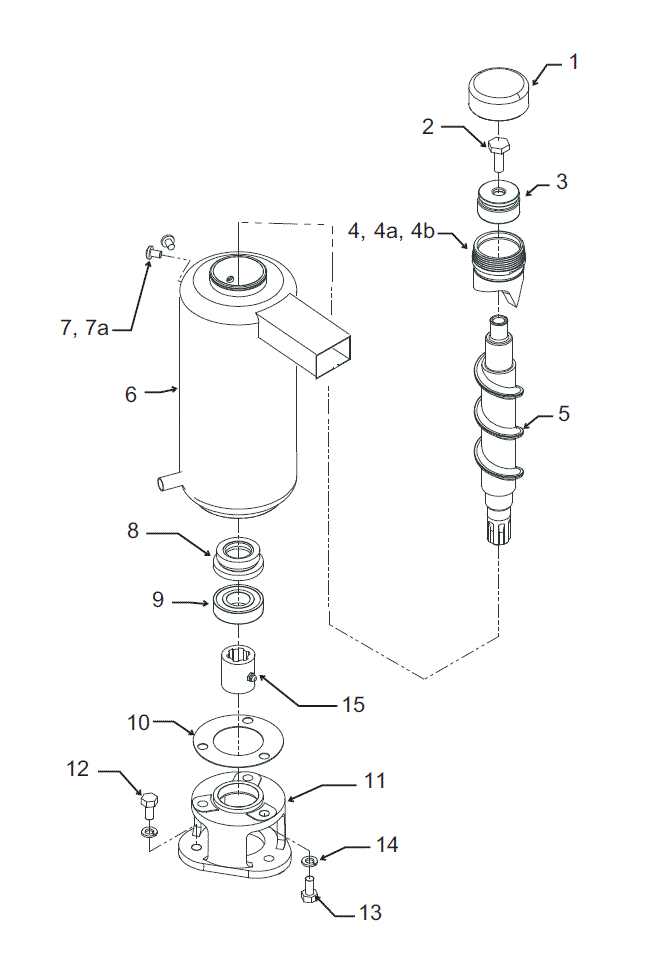

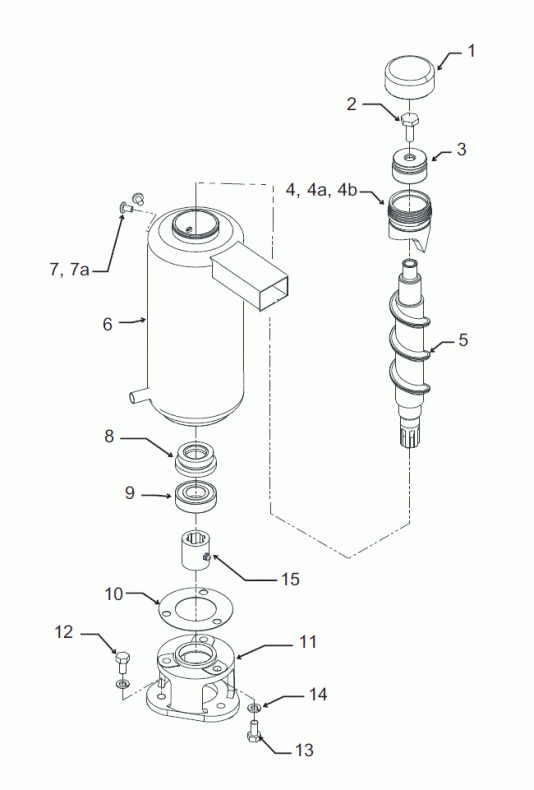

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1)...Threaded cap - grey   02-4404-02 Threaded Cap - Grey Special Order - Ships In 3-4 Weeks $40.08
2)...Screw 03-0758-00 SCREW Ships In 1-2 Days $10.68
3)...Top bearing, w/thrust washer - for updated units*   02-4535-01 Upper Bearing W/Thrust Washer Ships In 1-2 Days $214.95
4)...Breaker kit, includes items 1, 3, 4a, 4b, 7 & 7a*   02-4575-21 Breaker Kit Ships In 1-2 Days $432.00
4a)...O-Ring (inside) 13-0617-16 Scotsman O Ring - 13-0617-16 Ships In 1-2 Days $7.50
4b)... 13-0617-37 O RING Ships In 1-2 Days $16.19
5)...Auger - for updated units*
6)...Evaporator   A36098-020 FREEZER Ships In 1-2 Days $1,152.81
7)...Washer 03-1417-07 TOOTHED LOCKWASHERS Ships In 1-2 Days $1.85
7a)...Screw   03-1403-46 SCREW Ships In 1-2 Days $4.13
8)...Water Seal 02-4599-21 Scotsman Water Seal - 02-4599-21 In Stock $59.45
9)...Lower Bearing 02-0417-20 Scotsman Bearing - 02-0417-20 In Stock $44.32
10)...Gasket   03-1505-00 GASKET Ships In 7-10 Days $8.83
11)...Adapter   08-0595-01 ADAPTOR CASTING Ships In 1-2 Days $98.09
12)...Cap Screw (3 required))   03-1405-38 SCREW - 03-1405-38 Special Order - Ships In 3-4 Weeks $2.71
13)...Cap Screw   03-1420-01 SCREW Ships In 1-2 Days $3.22
14)...Washer (3 required)   03-1410-04 HELICAL SPRING LOCKW Ships In 1-2 Days $0.92
15)...Spline Coupling   A29915-002 COUPLING Ships In 1-2 Days $30.00
16)...Auger and bearing kit Includes items 1, 2, 4, 4a, 4b, 5, 7, 7a, 8, and 9   02-4578-02 Auger & Breaker/Bearing Assembly Ships In 1-2 Days $847.79
17)...Top bearing grease, 13 oz tube

* Updated units have new auger and top breaker and bearing. Update available beginning Feb. 2010. Updated units have grey cap. Non-updated units require auger kit item 16 when replacing top bearing or auger.
