Scottsman ND650
Currently Viewing: ND650 Water Cooled Refrigeration  > Go Back To Other Parts Lists

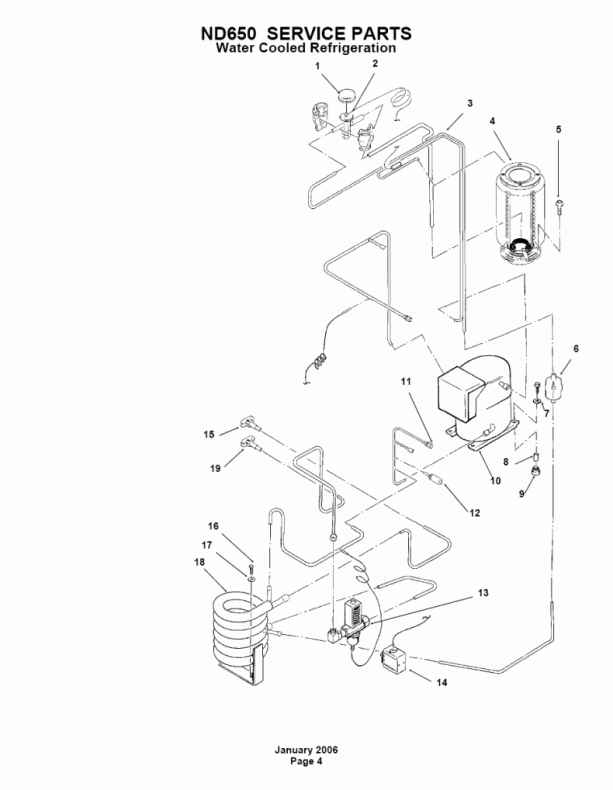

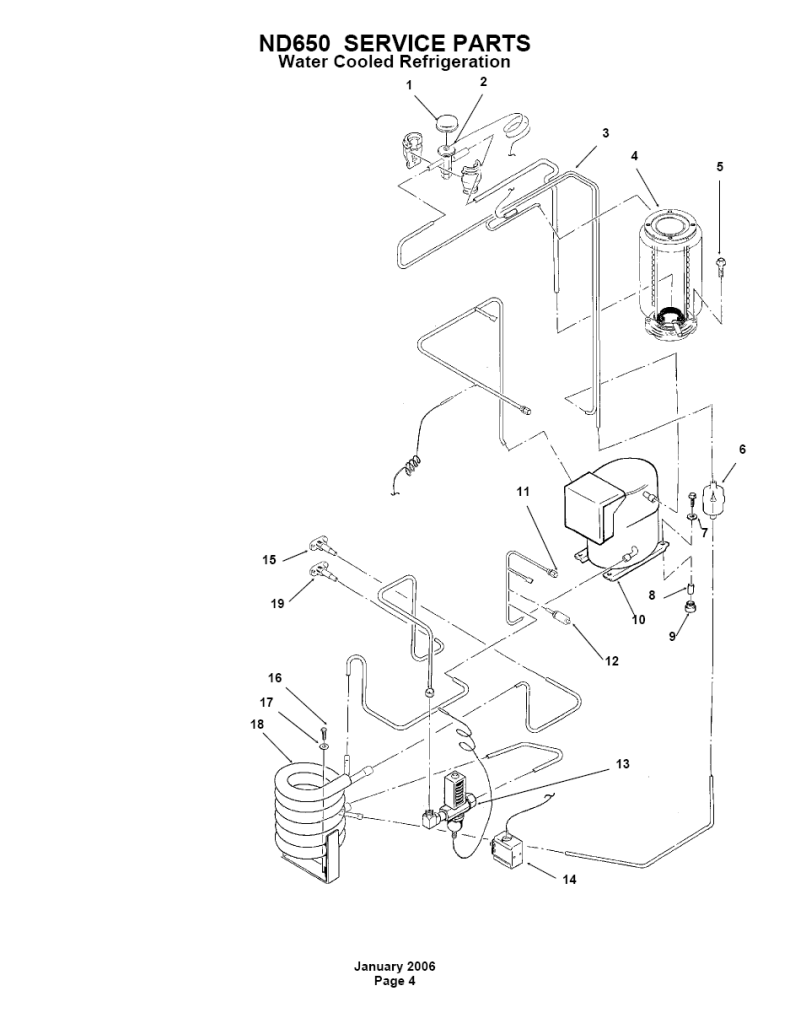

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A32961-020 INSULATION KIT Ships In 1-2 Days $50.94
2   16-0780-21 VALVE Ships In 1-2 Days $224.82
3   A33330-001 HEAT EXCHANGER - OBSOLETE, NO REPLACEMENT
4   A33194-020 EVAPORATOR Ships In 1-2 Days $1,021.17
5 NLA 03-1420-03
6   02-3319-02 DRIER Ships In 1-2 Days $34.34
7   03-1406-10 HEX NUTS Ships In 1-2 Days $0.92
8   18-2200-27 MOUNTING SLEEVE Ships In 1-2 Days $5.81
9   18-2200-28 MOUNTING GROMMET Ships In 1-2 Days $7.26
10   18-5700-01 COMPRESSOR -OBSOLETE
11   16-0560-00 VALVE CORE Ships In 1-2 Days $4.72
  16-0563-00 BRASS CAP Ships In 1-2 Days $14.17
12   11-0446-22 PRESSURE CONTROL - OBSOLETE, NO REPLACEMENT
13 11-0424-01 WATER REG. VALVE Special Order - Ships In 3-4 Weeks $180.83
14   11-0447-20 PRESSURE CONTROL Ships In 1-2 Days $123.59
15   A31828-001 ADAPTER-FLANGED - OBSOLETE
16   03-1645-01 SCREW Ships In 1-2 Days $0.92
17   03-1410-03 HELICAL SPRING LOCKW Ships In 1-2 Days $1.85
18   18-3305-25 CONDENSER W/C Ships In 1-2 Days $359.89
19   A31828-002 ADAPTOR-FLANGED - OBSOLETE
