Scottsman ND650

Currently Viewing: ND650 Kits > Go Back To Other Parts Lists

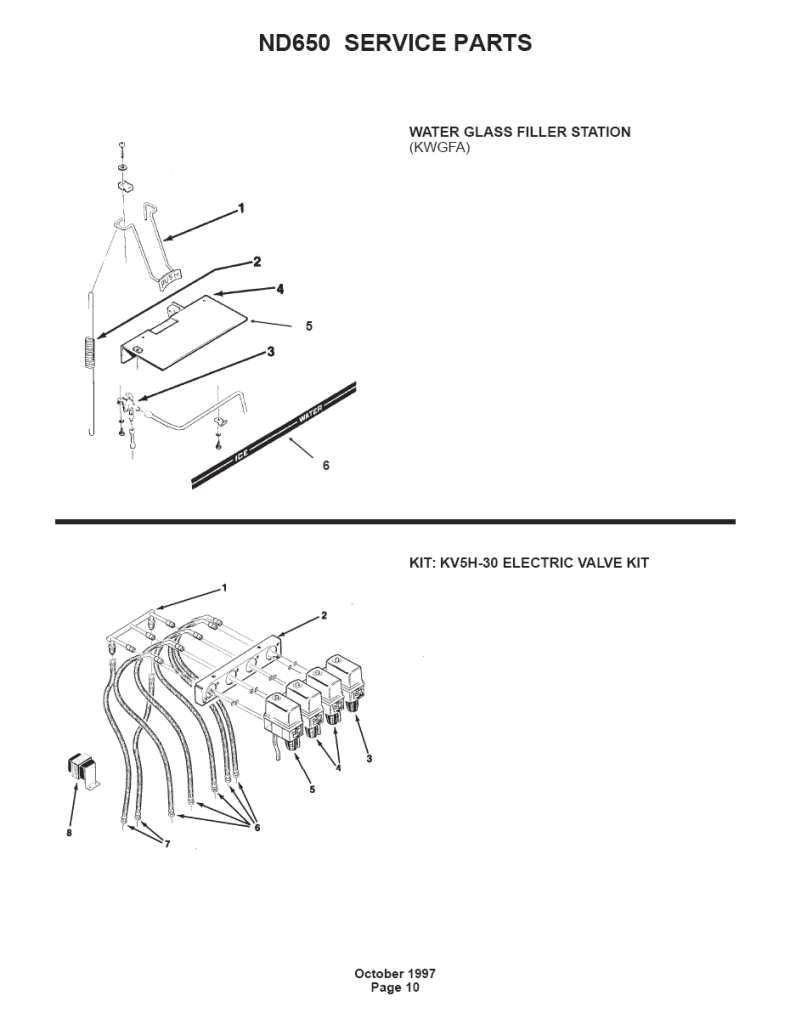

Parts List Begins Below The Diagram Image

Jump To The Parts List

click to open the full-size image in a new window

Item		Part#	Description	Stock	Price	Qty
Kit: KWGFA Water Glass Filler
1		02-2076-01	GLASS FILLER LEVERS - OBSOLETE, NO REPLACEMENT
2		02-3022-01	SPRING	Ships In 1-2 Days	$34.74
3		12-1646-01	Scotsman Inlet Water Valve	Ships In 1-2 Days	$77.11
4 NLA 12-1642-00
		12-2409-01	SWITCH	Ships In 1-2 Days	$43.44
5		A29886-001	VALVE PLATE - OBSOLETE, NO REPLACEMENT
6		15-0672-01	DECAL-ICE	Ships In 1-2 Days	$28.33
Kit: KV5H-30 Electric Valve Kit
1 NLA 02-2128-01
2 NLA a20368-000
3 NLA 02-1205-19
4 NLA 02-1205-16
5 NLA 02-1205-17
6 NLA a30209-001
7 NLA a20547-000
8 NLA 12-1809-00
