Scottsman ND750
Currently Viewing: ND750 Water Cooled Refrigeration  > Go Back To Other Parts Lists

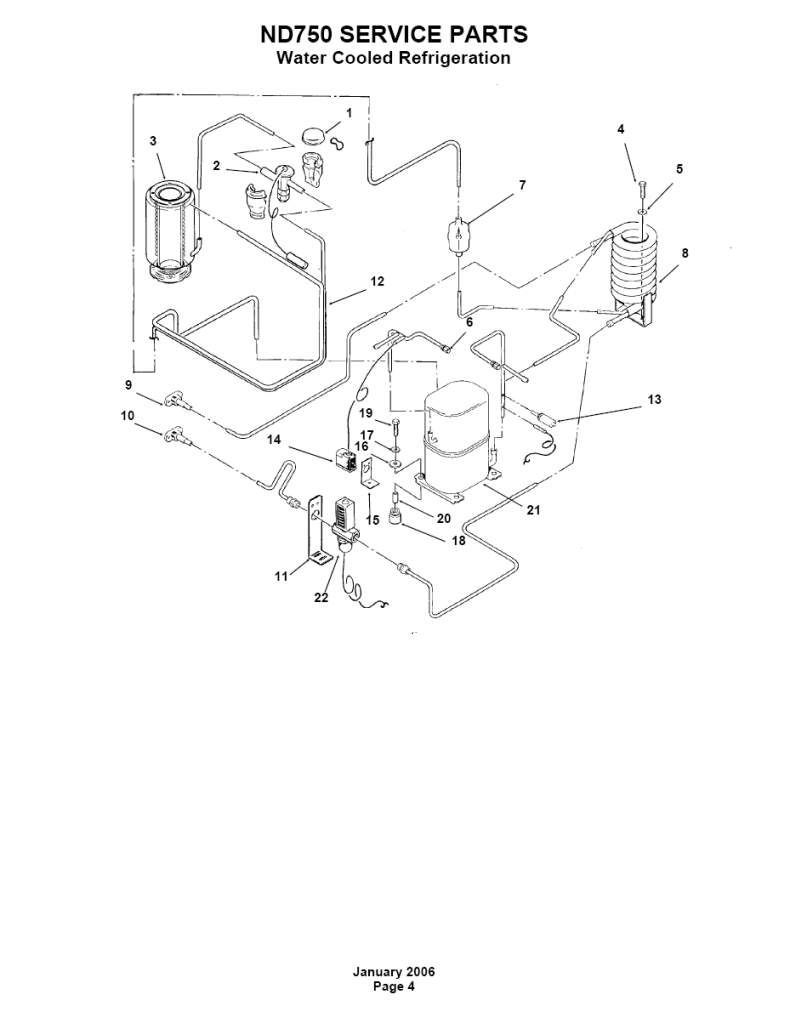

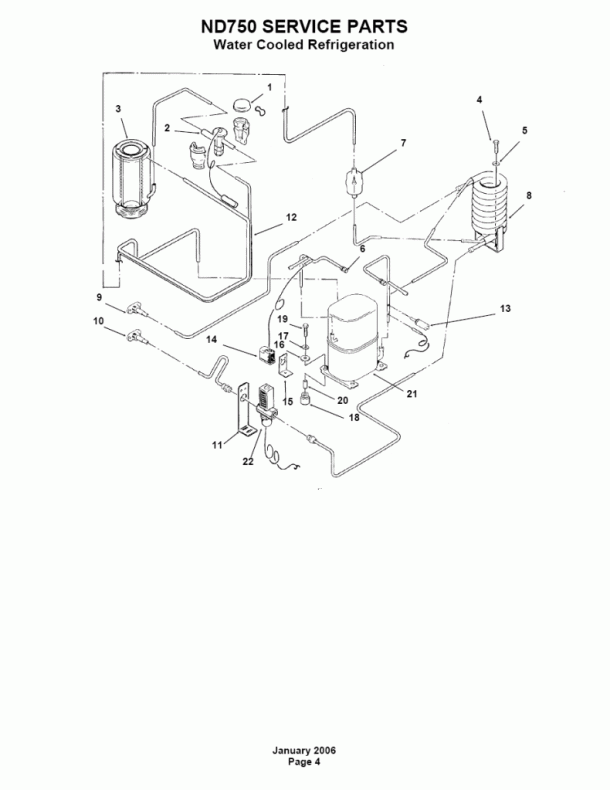

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A32961-020 INSULATION KIT Ships In 1-2 Days $50.94
2   16-0780-21 VALVE Ships In 1-2 Days $224.82
3   A33194-020 EVAPORATOR Ships In 1-2 Days $1,021.17
4   03-0571-01 SCREW
5   03-1407-05 TYPE A PLAIN WASHERS Ships In 1-2 Days $0.92
6   16-0560-00 VALVE CORE Ships In 1-2 Days $4.72
  16-0563-00 BRASS CAP Ships In 1-2 Days $14.17
7   02-3319-02 DRIER Ships In 1-2 Days $34.34
8   18-3306-25 CONDENSER W/C, A - E series Special Order - Ships In 3-4 Weeks $437.17
9   A31828-001 ADAPTER-FLANGED - OBSOLETE
10   A31828-002 ADAPTOR-FLANGED - OBSOLETE
11   A33990-001 BRACKET - A33990-001 Ships In 1-2 Days $21.30
12 NLA a34587-001
13   11-0446-22 PRESSURE CONTROL - OBSOLETE, NO REPLACEMENT
14 NLA 11-0447-21
15 NLA a28887-001
16   03-1407-07 TYPE A PLAIN WASHER Ships In 1-2 Days $2.63
17   03-1410-04 HELICAL SPRING LOCKW Ships In 1-2 Days $0.92
18   18-2200-28 MOUNTING GROMMET Ships In 1-2 Days $7.26
19   03-1406-10 HEX NUTS Ships In 1-2 Days $0.92
20   18-2200-27 MOUNTING SLEEVE Ships In 1-2 Days $5.81
21   18-6100-01 COMPRESSOR - OBSOLETE, NO REPLACEMENT
22 NLA 11-0424-02
