Scottsman ND750
Currently Viewing: ND750 Water System  > Go Back To Other Parts Lists

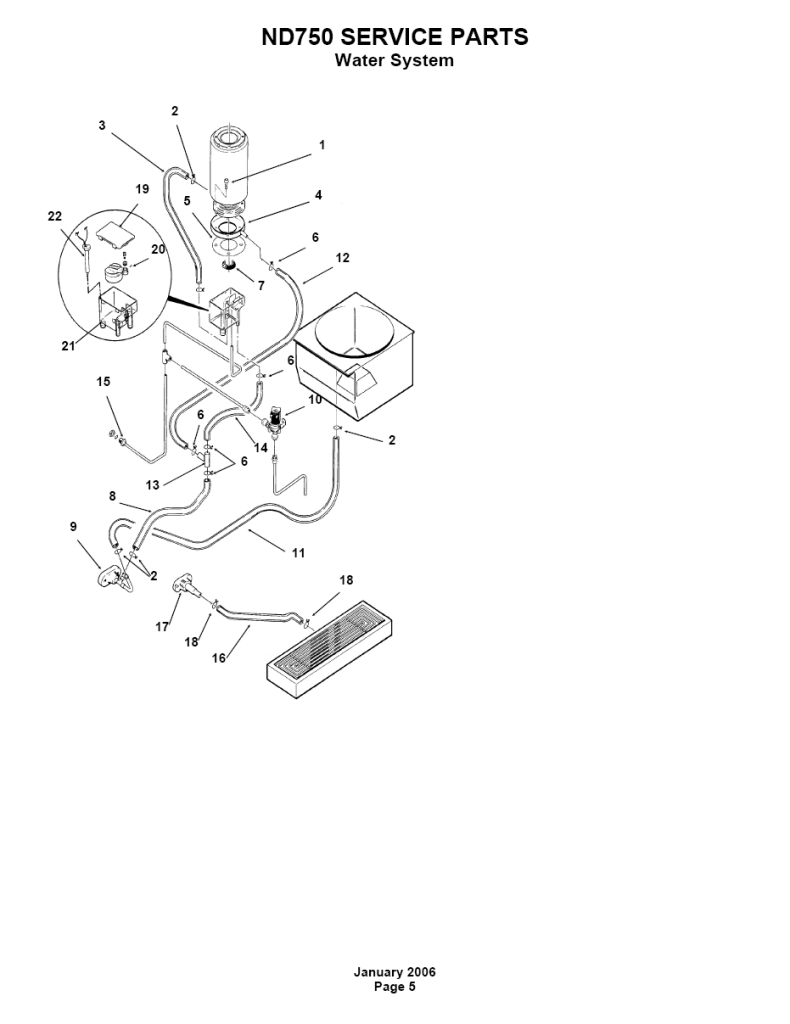

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1 NLA 03-1420-03
  03-1417-13 TOOTHED LOCKWASHERS Ships In 1-2 Days $1.85
2   02-2814-07 HOSE CLAMP Ships In 1-2 Days $10.60
3   13-0674-06 TUBING - PER FT. Ships In 1-2 Days $8.63
4   A32050-001 DRIP PAN Ships In 1-2 Days $33.80
5 13-0704-00 GASKET Ships In 1-2 Days $9.79
6   02-2814-06 HOSE CLAMP Ships In 7-10 Days $11.72
7   02-4663-01 WATER SHED Ships In 1-2 Days $33.78
8   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
9   A32294-001 DRAIN Ships In 1-2 Days $181.98
10   12-1646-05 VALVE-INLET Ships In 1-2 Days $116.11
11   13-0674-06 TUBING - PER FT. Ships In 1-2 Days $8.63
12   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
13   16-0670-02 TEE Ships In 1-2 Days $11.72
14   13-0079-03 RUBBER TUBING Ships In 1-2 Days $6.80
15 A27318-001 WATER INLET FITTING Special Order - Ships In 3-4 Weeks $31.95
16   13-0674-07 TUBING - PER FT. Ships In 1-2 Days $15.26
17 NLA a31757-001
18   02-2814-10 HOSE CLAMP Ships In 1-2 Days $10.68
19   02-2936-01 RESERVOIR COVER Ships In 1-2 Days $29.21
20 A32907-001 Scotsman Float - A32907-001 REPLACES A32922-020 $40.63
21   A32929-020 FLOAT RESERVOIR Ships In 1-2 Days $244.77
22   A33101-022 Scotsman Thermo Probe Service - A33101-022 Ships In 1-2 Days $85.95
