Scottsman ND750
Currently Viewing: ND750 Evaporator  > Go Back To Other Parts Lists

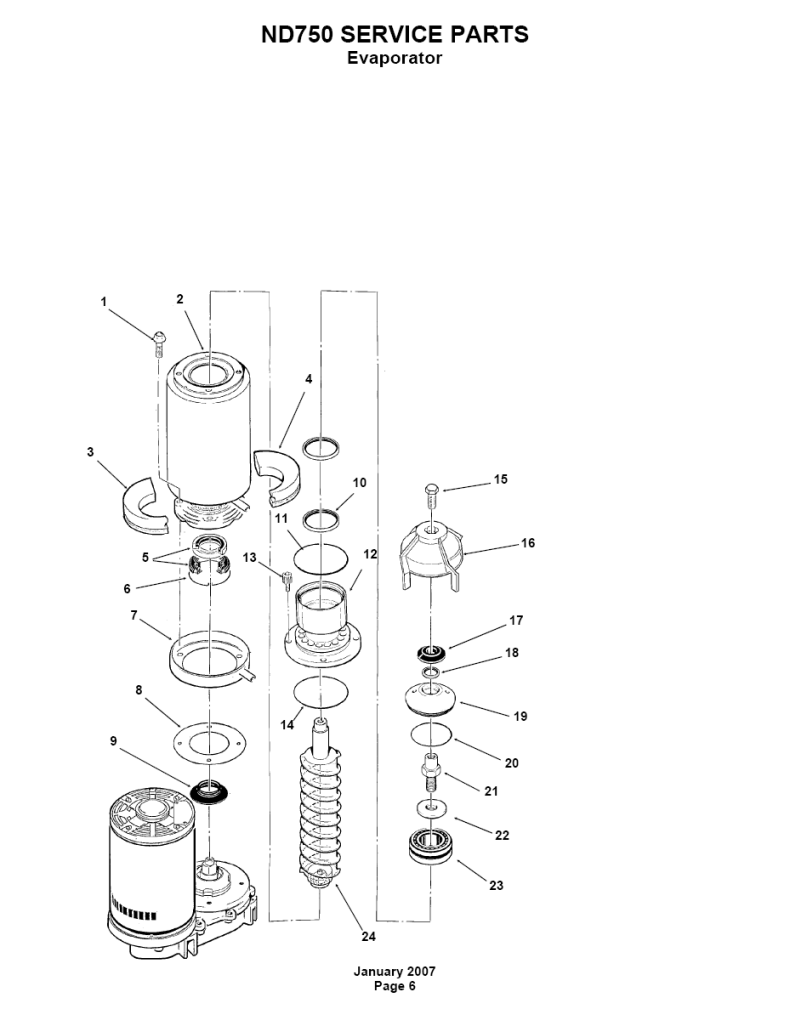

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   03-1405-41 HEX CAP SCREW Ships In 1-2 Days $5.46
  03-1417-13 TOOTHED LOCKWASHERS Ships In 1-2 Days $1.85
2   A33194-020 EVAPORATOR Ships In 1-2 Days $1,021.17
3   A32962-001 INSULATION - REPLACED BY 02-4358-01
4   02-4358-01 INSULATION 02-4358-01 Ships In 1-2 Days $8.95
5 02-0929-23 Scotsman Water Seal - 02-0929-23 Ships In 1-2 Days $108.36
6 A32777-001 RING Ships In 1-2 Days $25.83
7   A32050-001 DRIP PAN Ships In 1-2 Days $33.80
8 13-0704-00 GASKET Ships In 1-2 Days $9.79
9   02-4663-01 WATER SHED Ships In 1-2 Days $33.78
10 02-2977-01 LIP SEAL Ships In 1-2 Days $41.88
11   13-0617-54 0-RING Ships In 1-2 Days $8.83
12   A32900-020 BREAKER Ships In 1-2 Days $692.21
13 03-1544-08 SCREW Ships In 1-2 Days $12.67
14   13-0617-45 O-RING Ships In 1-2 Days $8.15
15   03-1405-52 HEX CAP SCREW Ships In 1-2 Days $10.46
16 02-3001-01 ICE SWEEP Ships In 1-2 Days $42.02
17   13-0871-01 WATER SHED Ships In 1-2 Days $26.71
18 02-2978-01 LIP SEAL Ships In 1-2 Days $31.84
19   02-3128-20 COVER Ships In 1-2 Days $45.88
20   13-0617-52 O-RING Ships In 1-2 Days $16.79
21   08-0660-01 AUGER STUD Ships In 1-2 Days $91.38
22 No Number: Thrust Washer (part of #21)
23   A34559-020 BEARING-SERVICE Ships In 1-2 Days $180.03
24   A38071-021 AUGER - 12 INCH LONG Ships In 1-2 Days $526.23
