Scottsman NDE550
Currently Viewing: NDE550 Air Cooled Refrigeration  > Go Back To Other Parts Lists

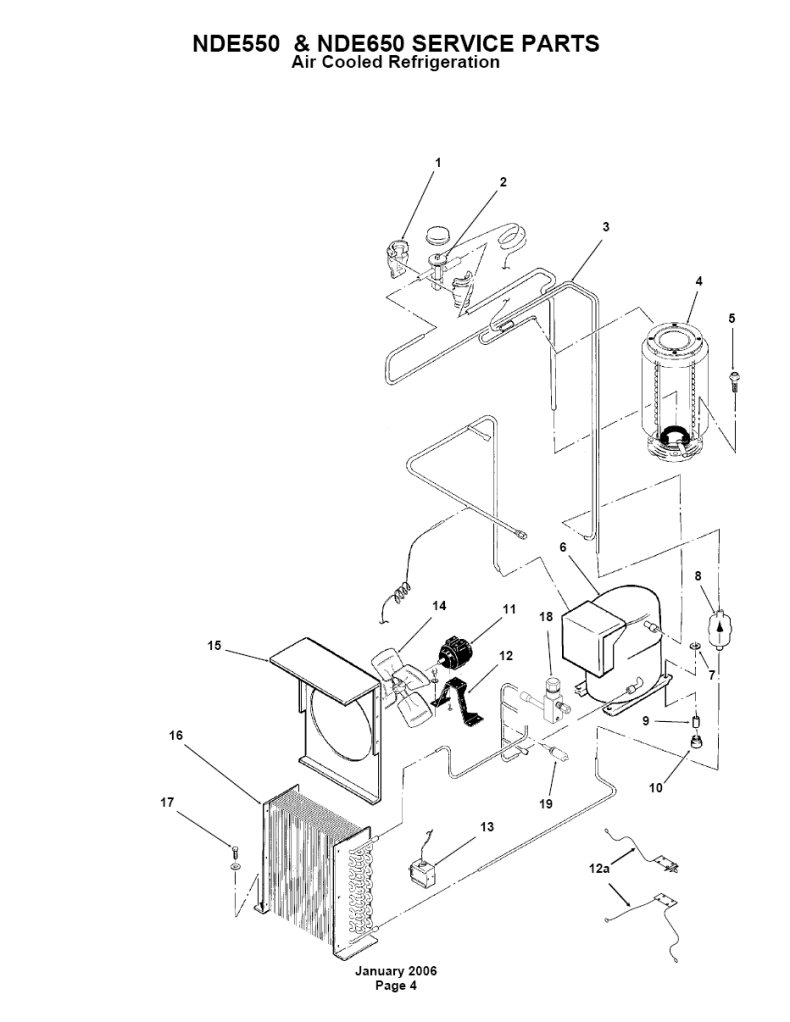

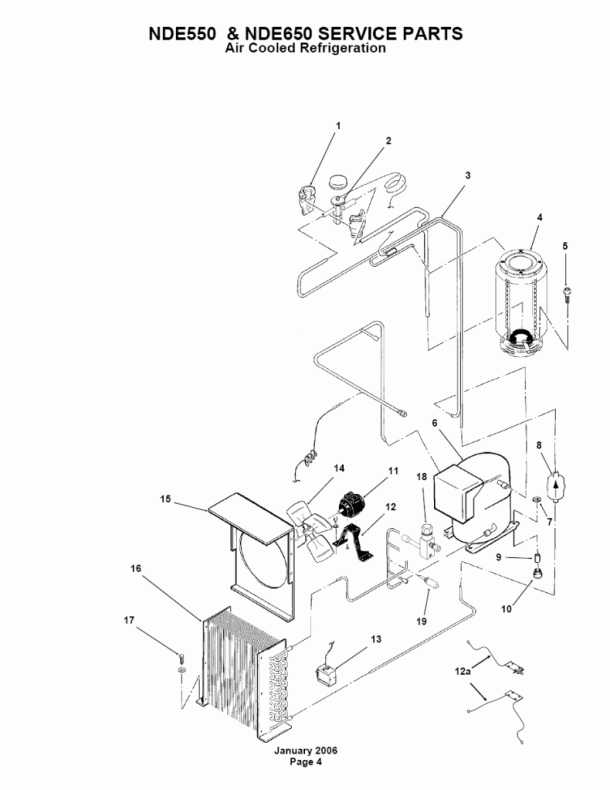

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   A32961-020 INSULATION KIT Ships In 1-2 Days $50.94
2   11-0488-21 THERMO EXP VALVE Ships In 1-2 Days $249.14
3 No Number: Suction Line
4   A33194-020 EVAPORATOR Ships In 1-2 Days $1,021.17
5 NLA 03-1420-03
6 115v/60hz   18-8720-21 COMPRESSOR
115v   18-5700-50 OVERLOAD Ships In 1-2 Days $55.14
230v/50hz   18-8720-26 COMPRESSOR
230v   18-5700-55 OVERLOAD -Obsolete
7   03-1406-10 HEX NUTS Ships In 1-2 Days $0.92
8   02-3319-02 DRIER Ships In 1-2 Days $34.34
9   18-2200-27 MOUNTING SLEEVE Ships In 1-2 Days $5.81
10   18-2200-28 MOUNTING GROMMET Ships In 1-2 Days $7.26
11 115v/60hz   18-8736-02 FAN MOTOR Ships In 1-2 Days $202.01
230v/50hz   18-8736-03 FAN MOTOR Ships In 3-4 Weeks $202.01
12   18-0422-00 BRACKET FAN Ships In 1-2 Days $19.09
12a   02-3359-01 FAN MOTOR BRACKET Ships In 1-2 Days $28.46
13   11-0447-20 PRESSURE CONTROL Ships In 1-2 Days $123.59
14   18-8738-01 FAN BLADE Ships In 1-2 Days $33.74
15   A33110-015 SHROUD Ships In 1-2 Days $39.65
16   18-8731-01 CONDENSER A/C - REPLACED BY 18-8847-01
17   03-1645-01 SCREW Ships In 1-2 Days $0.92
18   16-0832-20 PROCESS VALVE KIT Ships In 1-2 Days $45.77
  16-0832-02 VALVE SET SCREW CAP Ships In 1-2 Days $10.34
  16-0832-20 PROCESS VALVE KIT Ships In 1-2 Days $45.77
19   11-0485-22 PRESSURE CONTROL MAN Ships In 1-2 Days $119.75
