Scottsman NDE554
Currently Viewing: NDE554 Water and Ice Dispensing  > Go Back To Other Parts Lists

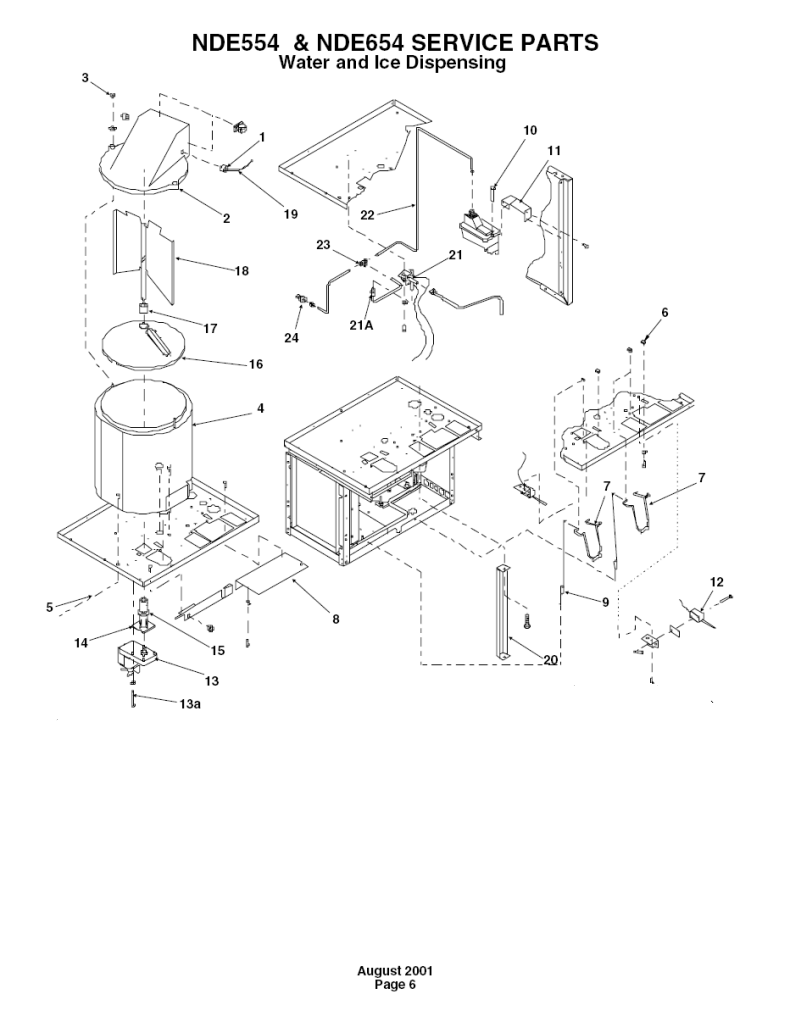

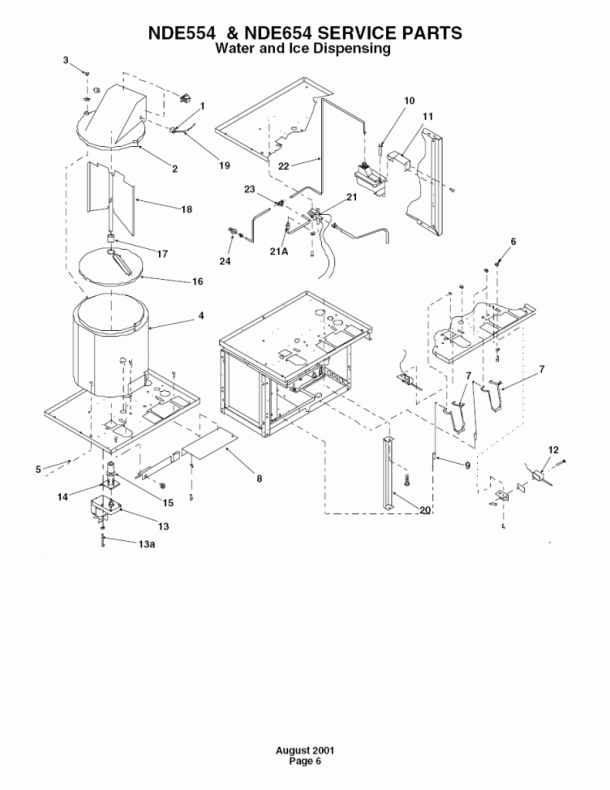

Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   13-0866-01 GROMMET Ships In 1-2 Days $18.53
2   A34493-003 BIN TOP - REPLACED BY A34493-023
3   03-0255-00 WING NUT Ships In 1-2 Days $4.43
4   A34496-001 STORAGE BIN FOR MDT5N25 Ships In 1-2 Days $261.59
5   03-1406-09 HEX NUTS Ships In 1-2 Days $0.92
  03-1410-03 HELICAL SPRING LOCKW Ships In 1-2 Days $1.85
6   02-2950-01 ARM CLAMP Ships In 1-2 Days $17.98
7   02-3167-01 LEVER Ships In 1-2 Days $57.90
8   A33348-015 PLATE VALVE -OBSOLETE
9   02-3022-01 SPRING Ships In 1-2 Days $34.74
10   12-2760-21 SENSOR WATER LEVEL Ships In 1-2 Days $90.76
11 NLA a35768-001
12   12-2409-01 SWITCH Ships In 1-2 Days $43.44
13   12-2677-21 DISPENSING MOTOR 60HZ Ships In 1-2 Days $471.93
  12-2677-26 DISPENSING MOTOR 50HZ Ships In 1-2 Days $544.10
13a   03-1403-36 SCREW Ships In 1-2 Days $2.63
14   02-1971-00 GEAR MOTOR BRACKET Ships In 1-2 Days $34.02
15   13-0747-00 WATER SHED Ships In 1-2 Days $30.43
16   A32657-001 INNER BIN BOTTOM Ships In 1-2 Days $242.81
17 02-3327-01 BEARING Ships In 1-2 Days $31.72
18   A37268-001 VANE Special Order - Ships In 3-4 Weeks $368.38
19   A37710-021 BIN LEVEL CONTROL SET Ships In 1-2 Days $142.07
20 NLA a34818-015
21 12-1646-01 Scotsman Inlet Water Valve Ships In 1-2 Days $77.11
  12-1646-06 VALVE-INLET Ships In 1-2 Days $107.71
21a   16-1046-01 CONNECTOR FEMALE Ships In 1-2 Days $23.84
22   13-0895-01 HOSE - PER FT. Ships In 1-2 Days $1.84
23   16-1040-01 TEE Ships In 1-2 Days $25.26
24   16-0835-01 FITTING Ships In 1-2 Days $43.36
