Scottsman NDE754

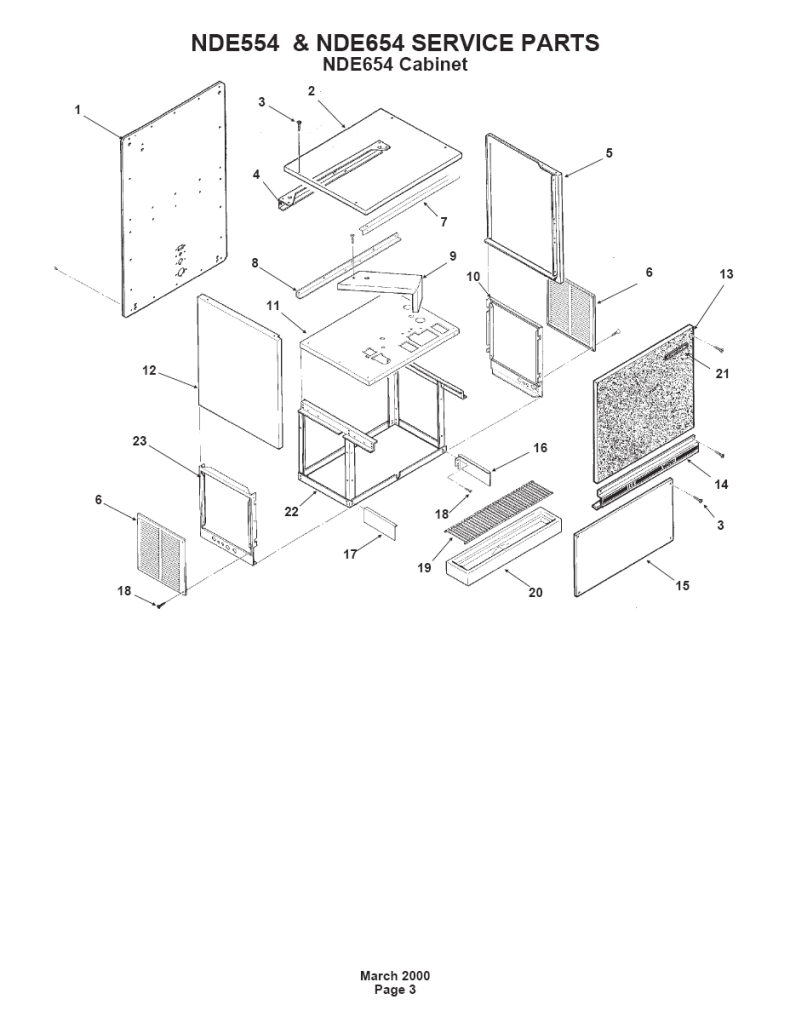

Currently Viewing: NDE654 Cabinet Assembly  > Go Back To Other Parts Lists
Parts List Begins Below The Diagram Image
Item   Part# Description Stock Price Qty
1   03-1419-22 SCREW Ships In 1-2 Days $1.85
2   A34563-001 BRACE Ships In 1-2 Days $41.56
3   A33282-002 TOP-CABINET -OBSOLETE
4   A34625-015 SUPPORT BACK Ships In 1-2 Days $30.13
5   A33270-015 BRACE SUPPORT Special Order - -Ships in 3-4 Weeks $27.16
6   A34414-002 RIGHT SIDE PANEL-UPP -OBSOLETE
7   A33276-002 BACK PANEL Ships In 1-2 Days $277.55
8   A33269-015 BRACE - UPPER Ships In 1-2 Days $25.76
9   15-0808-01 EMBLEM - SCOTSMAN Ships In 1-2 Days $26.90
10   03-1531-01 SCREW Ships In 1-2 Days $1.85
11   A33285-015 UPPER PLATE GREY Ships In 1-2 Days $134.72
12 13-0617-11 O RING Ships In 1-2 Days $4.92
13   A33281-002 SERVICE PANEL Ships In 1-2 Days $66.78
14   A33280-001 LOWER FRAME Ships In 1-2 Days $305.34
15   A33283-002 LEFT SIDE PANEL-UPPE -OBSOLETE
16   A34441-001 PANEL FRONT SS -OBSOLETE
NLA a34561-001
17 02-2809-01 DRAIN TOP Ships In 1-2 Days $10.68
18   02-1742-00 DRAIN BOTTOM Ships In 1-2 Days $34.42
19   A34401-016 SUPPORT SINK RT GREY Ships In 1-2 Days $25.76
  03-1645-01 SCREW Ships In 1-2 Days $0.92
20   A33284-002 SIDE PANEL-LOWER Ships In 1-2 Days $194.79
21   A34477-001 PANEL-LOWER FRONT -OBSOLETE
22   A34443-002 PANEL-ICE CHUTE -OBSOLETE
23   02-2582-01 GRILL Ships In 1-2 Days $82.84
24   A31047-032 SINK GREY Ships In 1-2 Days $339.65
25   A34401-015 SUPPORT SINK LT GREY Ships In 1-2 Days $25.76
  03-1645-01 SCREW Ships In 1-2 Days $0.92
26   A33284-004 SIDE PANEL-LOWER Ships In 1-2 Days $116.89
27 NLA a20250-003
28   A34573-001 DECOR SPOUT COVER - OBSOLETE, NO REPLACEMENT
29   15-0747-01 DECAL - OBSOLETE, NO REPLACEMENT
